GIDINGS&LEWIS 502-02307-00旋转变压器模块 PDF资料

1.产 品 资 料 介 绍：

GIDINGS&LEWIS 502-02307-00 旋转变压器模块

产品概述

Giddings & Lewis 502-02307-00 旋转变压器模块是一种位置/速度检测与反馈用的接口模块，主要配合旋转变压器（Resolver）传感器使用。旋转变压器是一种高可靠性的旋转位置检测装置，常用于数控机床和伺服驱动系统中。该模块负责解析来自旋转变压器的信号，并将其转换为数控系统或伺服控制器能够识别的标准反馈信号。

技术特点

• 信号转换：将旋转变压器的正弦/余弦模拟信号转换为数字位置信号。

• 高精度反馈：实现对电机转角与速度的实时、高精度检测。

• 稳定可靠：适应工业现场强干扰环境，抗振动能力强。

• 模块化设计：安装在 G&L 控制系统机架中，便于维护和更换。

• 兼容性强：与多种伺服电机、主轴电机和数控系统匹配使用。

应用领域

1. 数控机床主轴控制
   用于大型镗床、铣床、车削中心等设备的主轴角度与速度检测，保障加工精度。

2. 伺服驱动系统
   在进给伺服电机系统中提供高精度位置反馈，实现闭环控制。

3. 机床定位系统
   作为关键反馈环节，确保工作台、刀架等部件的精确定位。

4. 机床改造与升级
   在老旧设备的数控化改造中，用于增加位置检测和反馈功能。

5. 测试与诊断
   在机床维护过程中，旋转变压器模块可用于电机与控制系统的反馈信号监测。

英文资料：

GIDINGS&LEWIS 502-02307-00 Rotary Transformer Module

Product Overview

The Giddings&Lewis 502-02307-00 rotary transformer module is an interface module for position/velocity detection and feedback, mainly used in conjunction with rotary transformer (Resolver) sensors. Rotary transformer is a highly reliable rotating position detection device commonly used in CNC machine tools and servo drive systems. This module is responsible for parsing signals from rotary transformers and converting them into standard feedback signals that can be recognized by numerical control systems or servo controllers.

Technical Features

Signal conversion: Convert the sine/cosine analog signal of the rotary transformer into a digital position signal.

High precision feedback: achieve real-time and high-precision detection of motor angle and speed.

Stable and reliable: adaptable to strong interference environments in industrial sites, with strong anti vibration capabilities.

Modular design: Installed in the G&L control system rack for easy maintenance and replacement.

Strong compatibility: compatible with various servo motors, spindle motors, and CNC systems.

Application field

CNC machine tool spindle control

Used for spindle angle and speed detection of large boring machines, milling machines, turning centers and other equipment to ensure machining accuracy.

Servo drive system

Provide high-precision position feedback in the feed servo motor system to achieve closed-loop control.

Machine tool positioning system

As a key feedback link, ensure the precise positioning of components such as workbenches and tool holders.

Machine tool transformation and upgrading

In the numerical control transformation of old equipment, it is used to add position detection and feedback functions.

Testing and Diagnosis

During the maintenance process of the machine tool, the rotary transformer module can be used for monitoring the feedback signals of the motor and control system.

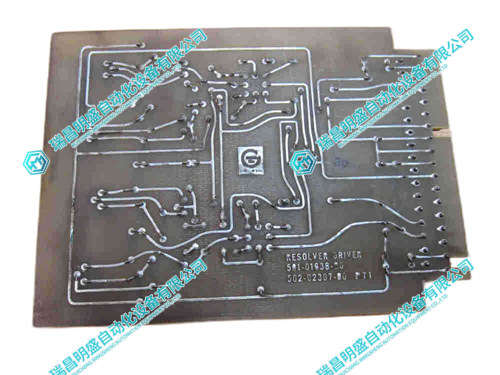

2.产      品      展      示
