Huttinger C400910 ID84126 激光射频板 PDF资料

1.产 品 资 料 介 绍：

HUTTINGER C400910 ID84126 激光射频板

产品概述

Huttinger C400910（ID84126）是一款 工业级激光射频控制板，专用于激光设备及射频发电模块的功率调节和信号控制。该射频板能够精确控制激光器功率输出，保证工艺稳定性与重复性，是激光加工、半导体制造及科研实验中的核心组件。

• 型号：C400910

• ID：84126

• 类型：激光射频控制板（Laser RF Control Board）

• 功能：射频功率调节、信号控制、负载匹配

• 应用领域：激光加工、半导体制造、薄膜沉积及科研实验

产品特点

1. 高精度射频控制

• 可对射频输出功率、电压和电流进行精密调节，保证激光器或发电模块的稳定运行。

2. 激光功率优化

• 协助调节激光射频功率，确保工艺参数一致，提高加工或沉积质量。

3. 负载匹配能力

• 与匹配网络配合，实现射频系统与激光负载的最佳阻抗匹配，降低反射功率。

4. 工业级可靠性

• 支持长时间连续运行，抗干扰能力强，适应复杂工业环境。

5. 保护功能完善

• 内置过流、过压及短路保护，保障设备和工艺安全。

6. 模块化设计

• 易于安装、维护和更换，兼容 HUTTINGER 系列射频发电模块和激光设备。

7. 可控性强

• 支持本地面板和远程接口控制，方便集成自动化工艺系统。

英文资料：

HUTTINGER C400910 ID84126 Laser RF Board

Product Overview

Huttinger C400910 (ID84126) is an industrial grade laser RF control board designed for power regulation and signal control of laser equipment and RF power generation modules. This RF board can accurately control the laser power output, ensuring process stability and repeatability, and is a core component in laser processing, semiconductor manufacturing, and scientific research experiments.

Model: C400910

ID：84126

Type: Laser RF Control Board

Function: RF power regulation, signal control, load matching

Application areas: laser processing, semiconductor manufacturing, thin film deposition, and scientific research experiments

Product Features

High precision RF control

It can precisely adjust the RF output power, voltage, and current to ensure the stable operation of the laser or power generation module.

Laser power optimization

Assist in adjusting the laser RF power to ensure consistent process parameters and improve processing or deposition quality.

Load matching capability

Cooperate with the matching network to achieve optimal impedance matching between the RF system and the laser load, reducing reflected power.

Industrial grade reliability

Supports long-term continuous operation, strong anti-interference ability, and adapts to complex industrial environments.

Complete protection function

Built in overcurrent, overvoltage, and short-circuit protection to ensure equipment and process safety.

modular design

Easy to install, maintain, and replace, compatible with HUTTINGER series RF power generation modules and laser equipment.

Strong controllability

Support local panel and remote interface control, facilitating integration with automated process systems.

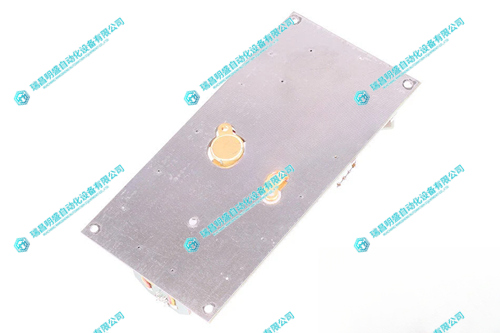

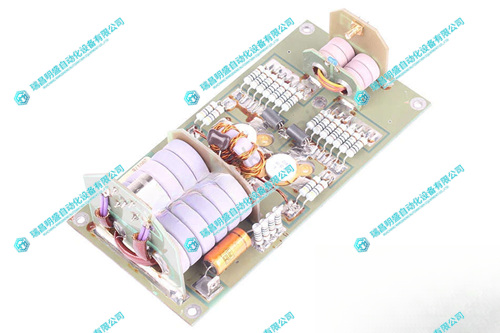

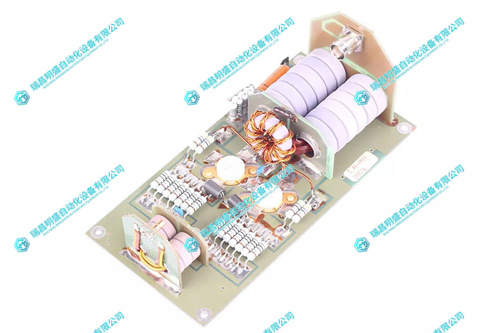

2.产      品      展      示
