1.产 品 资 料 介 绍：

GIDINGS&LEWIS 501-04052-00 内存电路板

产品概述

GIDINGS&LEWIS 501-04052-00 内存电路板是一种用于工业自动化控制系统的核心模块，主要用于存储程序、工艺参数、控制数据及历史运行信息。该模块能够确保控制系统在断电或故障情况下保存关键数据，实现快速恢复和稳定运行。内存电路板是数控机床、自动化生产线和伺服系统中不可或缺的存储单元。

技术参数（典型特性，实际数值需参考官方资料）

• 存储类型：工业级 SRAM/EEPROM

• 容量：支持系统程序、参数及运行数据存储

• 数据保持：具备掉电保持功能，防止数据丢失

• 接口方式：与控制器和总线模块兼容，支持高速数据访问

• 安装形式：模块化电路板，插槽式安装

• 环境适应性：工业级设计，耐高温、振动及电磁干扰

应用场景

1. 数控机床 (CNC)

• 存储加工程序、刀具补偿数据及工件参数，保证加工精度与重复性。

2. 自动化生产线

• 保存工艺顺序、工位配置及检测数据，实现生产柔性化和快速切换。

3. 伺服与运动控制系统

• 存储电机调试参数、运动轨迹数据和运行日志，保证系统在断电后快速恢复。

4. 过程控制行业

• 在冶金、化工、造纸等连续生产中，用于保存工艺配方和历史运行记录，便于优化和追溯。

5. 能源与电力系统

• 存储关键控制参数和保护逻辑，提高发电机组、变电站等设备的可靠性与安全性。

英文资料：

GIDINGS&LEWIS 501-04052-00 memory circuit board

Product Overview

GIDINGS&LEWIS 501-04052-00 memory circuit board is a core module used in industrial automation control systems, mainly for storing programs, process parameters, control data, and historical operating information. This module can ensure that the control system saves critical data in the event of power failure or malfunction, achieving rapid recovery and stable operation. Memory circuit board is an indispensable storage unit in CNC machine tools, automated production lines, and servo systems.

Technical parameters (typical characteristics, actual values need to refer to official materials)

Storage type: Industrial grade SRAM/EEPROM

Capacity: Supports storage of system programs, parameters, and operational data

Data retention: equipped with power-off retention function to prevent data loss

Interface mode: Compatible with controllers and bus modules, supporting high-speed data access

Installation form: Modular circuit board, slot installation

Environmental adaptability: Industrial grade design, resistant to high temperature, vibration, and electromagnetic interference

Application scenarios

Numerical Control Machine Tool (CNC)

Store machining programs, tool compensation data, and workpiece parameters to ensure machining accuracy and repeatability.

Automatic production line

Save the process sequence, workstation configuration, and testing data to achieve production flexibility and quick switching.

Servo and motion control system

Store motor debugging parameters, motion trajectory data, and operation logs to ensure rapid system recovery after power failure.

Process control industry

In continuous production such as metallurgy, chemical engineering, and papermaking, it is used to preserve process formulas and historical operation records for optimization and traceability.

Energy and Power Systems

Store key control parameters and protection logic to improve the reliability and safety of equipment such as generator sets and substations.

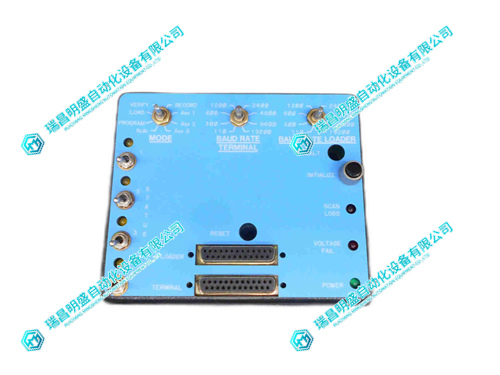

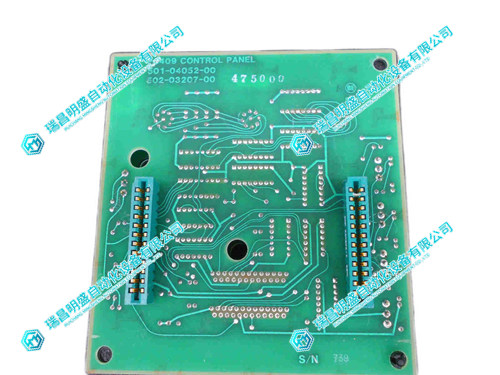

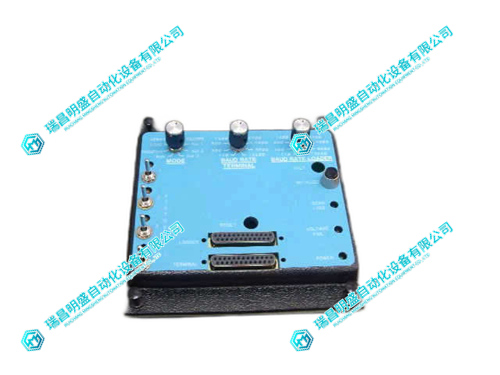

2.产      品      展      示
