GIDINGS&LEWIS 502-02097-00扫描监视器模块 PDF资料

1.产 品 资 料 介 绍：

一、产品概述

GIDINGS&LEWIS 502-02097-00 扫描监视器模块是一种工业自动化系统中使用的监控与诊断单元。它主要用于对系统的输入、输出以及通信信号进行扫描与状态检测，确保运行过程中的实时性与可靠性。该模块多用于机床、自动化生产线和数控设备中，是保障控制系统稳定运行的重要组成部分。

二、技术参数（典型特性）

• 型号：502-02097-00

• 功能：扫描监控、状态采集、故障检测

• 接口：支持与控制器及I/O模块的总线通信

• 响应时间：毫秒级别，满足高实时性要求

• 自诊断功能：能够记录并报告错误、超时、信号丢失等异常情况

• 电源：通常与主控制系统共用直流供电（如 5V 或 24V DC）

• 安装方式：标准插槽式结构，便于维护与替换

三、应用场景

1. 数控机床：实时监测信号扫描，保障伺服和控制命令的准确执行。

2. 自动化产线：对多路传感器与执行器进行信号扫描，确保生产连续性。

3. 运动控制系统：用于高速运动控制场合，对反馈信号和指令信号进行可靠监控。

4. 冗余与安全系统：通过信号扫描，避免错误输入造成的停机或损坏。

四、产品优势

• 高可靠性：能够在工业恶劣环境下稳定工作。

• 快速扫描：毫秒级信号采集与检测，提升系统响应速度。

• 强兼容性：可与多种 G&L 控制器和I/O板卡配合使用。

• 简化维护：插拔式设计便于现场快速更换。

• 增强安全性：通过监控机制及时发现异常，防止设备损坏。

英文资料：

1、 Product Overview

The GIDINGS&LEWIS 502-02097-00 scanning monitor module is a monitoring and diagnostic unit used in industrial automation systems. It is mainly used to scan and detect the input, output, and communication signals of the system, ensuring real-time and reliability during operation. This module is commonly used in machine tools, automated production lines, and CNC equipment, and is an important component to ensure the stable operation of control systems.

2、 Technical parameters (typical characteristics)

Model: 502-02097-00

Function: Scan monitoring, status collection, fault detection

Interface: Supports bus communication with controllers and I/O modules

Response time: millisecond level, meeting high real-time requirements

Self diagnostic function: capable of recording and reporting abnormal situations such as errors, timeouts, and signal loss

Power supply: Usually shared with the main control system for DC power supply (such as 5V or 24V DC)

Installation method: Standard slot structure, easy to maintain and replace

3、 Application scenarios

Numerical Control Machine Tool: Real time monitoring signal scanning to ensure accurate execution of servo and control commands.

Automated production line: Scan signals from multiple sensors and actuators to ensure production continuity.

Motion control system: used in high-speed motion control scenarios to reliably monitor feedback signals and command signals.

Redundancy and safety system: By scanning signals, it avoids downtime or damage caused by incorrect inputs.

4、 Product advantages

High reliability: able to work stably in harsh industrial environments.

Fast scanning: millisecond level signal acquisition and detection, improving system response speed.

Strong compatibility: Can be used in conjunction with various G&L controllers and I/O boards.

Simplified maintenance: The plug-in design facilitates quick on-site replacement.

Enhance security: detect anomalies in a timely manner through monitoring mechanisms to prevent device damage.

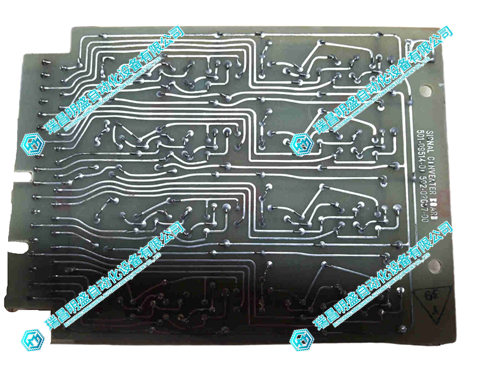

2.产      品      展      示
