F7128-0103显示卡 PDF资料
1.产 品 资 料 介 绍：
F7128-0103 显示卡 是工业控制系统或仪器设备中用于图形或状态显示的模块化板卡，主要作用是将控制系统、传感器或处理器模块的信号和数据以可视化方式呈现给操作人员，便于监控和操作。
核心功能
数据可视化
将系统状态、传感器数值或控制信号实时显示
支持字符、数字、图形或指示灯显示
可显示报警信息、参数状态及操作提示
接口与通信
接收来自主控制器或处理器模块的数字/模拟信号
可通过标准工业接口或专用总线连接系统
支持多模块联动显示
系统监控与反馈
提供状态指示，便于操作人员判断系统运行状况
部分型号支持触摸或按键输入，实现交互控制
可配合报警或控制模块进行联动
主要特点
工业级可靠性：耐振动、耐高温，适合工业现场
模块化设计：便于安装、维护和升级
显示直观：操作界面清晰，支持多种显示模式
兼容性强：可与多种控制器或处理器模块配合使用
典型应用
工业自动化系统监控面板
仪器仪表数据显示与操作
生产线状态监控及报警显示
流程控制系统的操作界面
F7128-0103显示卡 英文介绍
The F7128-0103 display card is a modular board used for graphic or status display in industrial control systems or instrument equipment. Its main function is to visually present signals and data from control systems, sensors, or processor modules to operators for easy monitoring and operation.
core functionality
data visualization
Real time display of system status, sensor values, or control signals
Supports displaying characters, numbers, graphics, or indicator lights
Can display alarm information, parameter status, and operation prompts
Interface and Communication
Receive digital/analog signals from the main controller or processor module
Can be connected to the system through standard industrial interfaces or dedicated buses
Support multi module linkage display
System monitoring and feedback
Provide status indicators for operators to assess the system's operational status
Some models support touch or button input for interactive control
Can be linked with alarm or control modules
Main Features
Industrial grade reliability: resistant to vibration, high temperature, suitable for industrial sites
Modular design: easy to install, maintain, and upgrade
Intuitive display: Clear operation interface, supporting multiple display modes
Strong compatibility: can be used in conjunction with multiple controllers or processor modules
Typical Applications
Industrial automation system monitoring panel
Instrument data display and operation
Production line status monitoring and alarm display
Operation interface of process control system

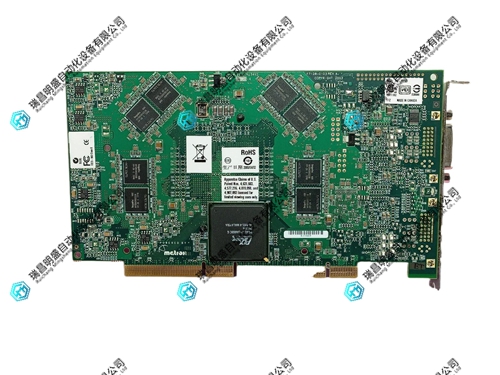

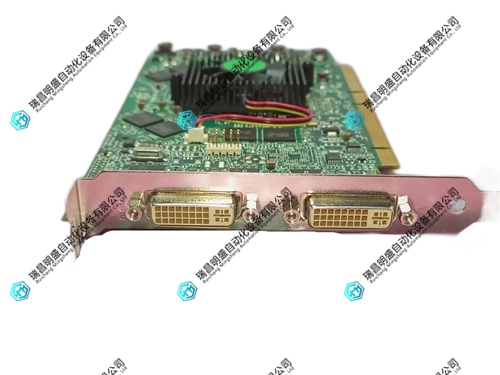

F7128-0103显示卡 产品展示
