2223B001300继电器卡 PDF资料
1.产 品 资 料 介 绍：
2223B001300 继电器卡 是工业控制系统中的通用输出模块，用于将控制器或处理器发出的逻辑信号转换为实际的开关动作，驱动各种负载设备（如电机、阀门、指示灯等）。它是实现自动化控制系统“控制信号→物理动作”的关键部件。
核心功能
信号转换与输出
接收来自控制器（PLC、处理器模块等）的逻辑信号
将信号放大并转换为高功率开关动作
控制电流较大的负载设备
继电器驱动
内置机械或固态继电器
可实现通断、延时、保持等控制功能
输出信号可直接驱动接触器或其他执行器
保护功能
过流保护，防止负载短路
防干扰设计，保证控制信号稳定
某些型号带指示灯显示输出状态
主要特点
模块化设计：便于安装、拆卸和维护
高可靠性：工业级标准，耐振动、耐高温
多通道输出：可同时控制多个负载
灵活性高：兼容不同类型负载（直流/交流）
应用场景
工业自动化控制系统
电机和泵的开关控制
阀门及气动/液压执行机构控制
仪器仪表和信号指示灯驱动
2223B001300继电器卡 英文介绍
2223B001300 relay card is a universal output module in industrial control systems, used to convert logical signals from controllers or processors into actual switch actions, driving various load devices such as motors, valves, indicator lights, etc. It is a key component for implementing the automation control system's "control signal → physical action".
core functionality
Signal Conversion and Output
Receive logic signals from controllers (PLC, processor modules, etc.)
Amplify and convert the signal into high-power switching action
Load equipment with high control current
Relay driven
Built in mechanical or solid-state relays
It can achieve control functions such as on-off, delay, and hold
The output signal can directly drive contactors or other actuators
protection function
Overcurrent protection to prevent load short circuit
Anti interference design ensures stable control signals
Some models have indicator lights to display output status
Main Features
Modular design: easy to install, disassemble, and maintain
High reliability: Industrial grade standard, resistant to vibration and high temperature
Multi channel output: can control multiple loads simultaneously
High flexibility: compatible with different types of loads (DC/AC)
Application scenarios
Industrial automation control system
Switching control of motors and pumps
Valve and pneumatic/hydraulic actuator control
Instrument and signal indicator driver

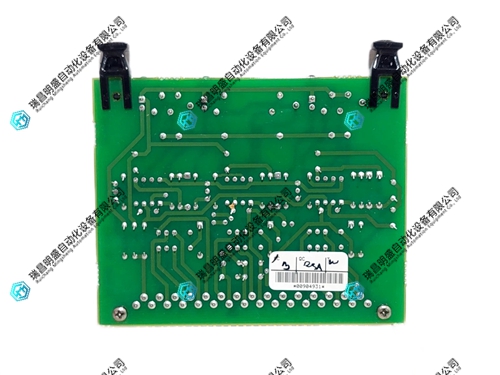

2223B001300继电器卡 产品展示
