AEG MODICON 7628-042.244800插槽板 PDF资料
1.产 品 资 料 介 绍：
AEG Modicon 7628-042.244800 插槽板
产品说明
一、产品定位
7628-042.244800 属于 AEG Modicon 控制系统内使用的机架式插槽板（Backplane/Slot Board），主要用于为各类功能模块提供电气连接通道和信号总线，是整套 PLC 或控制系统运行的基础结构之一。
二、核心作用
为控制器 CPU、I/O 模块、电源模块等提供标准化的插槽位置。
完成系统内部电源分配，使所有模块获得稳定供电。
建立统一的系统总线，负责模块间的数据、地址和控制信号传输。
保证模块之间的通讯同步与数据刷新。
为扩展机架或多模块系统提供结构基础。
三、产品特点
工业级可靠性设计，适合长期安装在控制柜内稳定运行。
接插件布局规整，兼容对应的 Modicon 模块系列。
板体材料耐高温、耐湿度，适合多种工况环境。
信号路径清晰，降低模块之间的通信干扰。
安装维护简便，适合老系统维保与替换。
四、典型应用
Modicon 旧系列 PLC 机架的主背板或扩展背板。
控制柜内部的多模块布置结构。
工厂自动化系统的 I/O 扩展、通信扩展平台。
老旧设备翻新、维修或备件替换项目。
多槽位系统用于容纳控制器、通讯卡、I/O 模块等功能单元。
AEG MODICON 7628-042.244800插槽板 英文介绍
AEG Modicon 7628-042.44800 slot board
Product Description
1、 Product positioning
7628-04.244800 belongs to the Backplane/Slot Board used in AEG Modicon control system, mainly used to provide electrical connection channels and signal buses for various functional modules, and is one of the basic structures for the operation of the entire PLC or control system.
2、 Core role
Provide standardized slot positions for controller CPUs, I/O modules, power modules, etc.
Complete the internal power distribution of the system to ensure stable power supply for all modules.
Establish a unified system bus responsible for transmitting data, addresses, and control signals between modules.
Ensure communication synchronization and data refresh between modules.
Provide a structural foundation for expanding rack or multi module systems.
3、 Product Features
Industrial grade reliability design, suitable for long-term installation and stable operation in control cabinets.
The layout of the connectors is neat and compatible with the corresponding Modicon module series.
The board material is resistant to high temperature and humidity, suitable for various working conditions and environments.
Clear signal path reduces communication interference between modules.
Easy to install and maintain, suitable for maintaining and replacing old systems.
4、 Typical applications
The main backplane or expansion backplane of Modicon's old series PLC rack.
Multi module layout structure inside the control cabinet.
I/O expansion and communication expansion platform for factory automation systems.
Renovation, repair, or replacement of old equipment.
The multi slot system is used to accommodate functional units such as controllers, communication cards, I/O modules, etc.

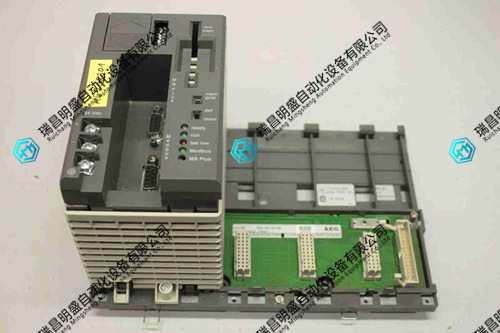

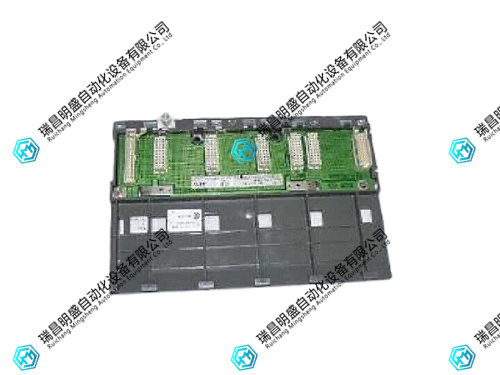

AEG MODICON 7628-042.244800插槽板 产品展示
