AEG MODICON ZAE105计数器模块 PDF资料
1.产 品 资 料 介 绍：
AEG MODICON ZAE105 计数器模块 — 产品特点概述
1. 专为高速计数应用设计
ZAE105 主要用于接收脉冲、编码器信号或高速触发量，适合生产节拍监测、长度测量、转速采集以及定位相关的控制场合。
2. 计数精度高、响应速度快
模块具备高频脉冲捕获能力，能在短周期内准确记录脉冲变化，不遗漏、不重计，为后端逻辑提供精准实时数据。
3. 支持多种计数模式
通常具备单向计数、上下计数、预置值比较、频率测量等多种工作方式，可根据工艺需求灵活配置。
4. 抗干扰处理到位
为适应电机区、伺服区等噪声较大的现场环境，输入端做了加强的滤波与隔离设计，减少误读和抖动信号带来的错误计数。
5. 与控制器配合紧密
能直接在 Modicon 控制系统中读取计数结果、触发比较中断或辅助逻辑判断，数据交换顺畅，让程序编写更直观。
6. 状态指示直观
输入脉冲、计数活动、比较输出等状态都有清晰的指示灯，让调试与故障排查变得轻松，现场验证也更高效。
7. 模块化结构维护方便
保持 Modicon 系列一贯的插拔式结构，替换快速，不会影响系统其他模块运行。
AEG MODICON ZAE105计数器模块 英文介绍
AEG MODICON ZAE105 Counter Module - Product Features Overview
1. Designed specifically for high-speed counting applications
ZAE105 is mainly used for receiving pulses, encoder signals or high-speed trigger quantities, suitable for production cycle monitoring, length measurement, speed acquisition and positioning related control occasions.
2. High counting accuracy and fast response speed
The module has high-frequency pulse capture capability, which can accurately record pulse changes in a short period without omission or repetition, providing accurate real-time data for backend logic.
3. Supports multiple counting modes
It usually has multiple working modes such as one-way counting, up and down counting, preset value comparison, frequency measurement, etc., and can be flexibly configured according to process requirements.
4. Proper anti-interference processing
In order to adapt to the noisy on-site environment such as the motor area and servo area, the input end has been strengthened with filtering and isolation design to reduce erroneous counting caused by misreading and jitter signals.
5. Closely cooperate with the controller
It can directly read counting results, trigger comparison interrupts, or assist logic judgments in the Modicon control system, ensuring smooth data exchange and making program writing more intuitive.
6. Intuitive status indication
There are clear indicator lights for input pulses, counting activities, and comparison outputs, making debugging and troubleshooting easier, and on-site verification more efficient.
7. Modular structure for easy maintenance
Maintain the consistent plug-in structure of the Modicon series, with fast replacement and no impact on the operation of other modules in the system.

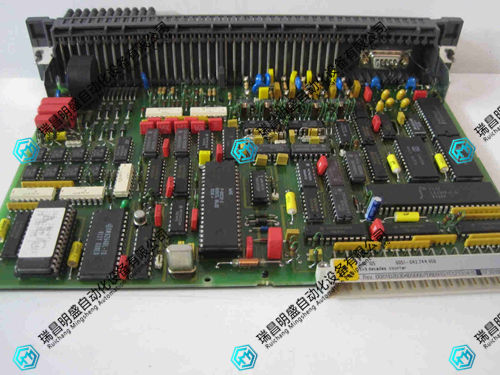

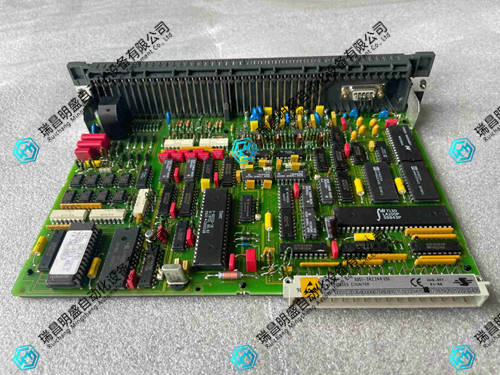

AEG MODICON ZAE105计数器模块 产品展示
