1.产 品 资 料 介 绍：

Giddings & Lewis 501-03202-00 直流输入模块

产品概述

501-03202-00 是 Giddings & Lewis 工业控制系统中的 直流输入模块（DC Input Module），用于采集来自现场设备的直流信号，将其传递给控制器进行逻辑判断和系统控制。该模块是数控机床及自动化生产系统中实现实时状态监控的重要组件。

产品特点

1. 高精度信号采集

• 可采集来自传感器、开关或其他 DC 信号源的输入

• 提供可靠的逻辑状态信息，确保控制系统准确判断

2. 高速响应

• 支持快速信号采样与处理

• 满足 CNC 系统和自动化生产线对实时性的要求

3. 工业级可靠性

• 采用抗干扰设计，耐高温、抗振动

• 支持长时间连续运行，保证系统稳定性

4. 模块化设计

• 插卡式结构，便于安装、维护和更换

• 可与其他模块无缝集成，方便系统扩展

5. 保护功能完善

• 内置短路、过载保护

• 提高系统安全性，减少故障风险

应用场景

• CNC 数控机床：采集限位开关、急停按钮、门禁开关等信号

• 自动化生产线：采集传感器信号，如物料到位、位置检测等

• 工业运动控制系统：作为伺服或步进驱动控制系统的状态采集模块

• 设备监控与安全保护：采集故障或报警信号，触发保护或报警机制

英文资料：

Giddings&Lewis 501-0302-00 DC Input Module

Product Overview

501-0302-00 is a DC Input Module in the Giddings&Lewis industrial control system, used to collect DC signals from field devices and transmit them to the controller for logical judgment and system control. This module is an important component for real-time status monitoring in CNC machine tools and automated production systems.

Product Features

High precision signal acquisition

Can collect inputs from sensors, switches, or other DC signal sources

Provide reliable logical state information to ensure accurate judgment of the control system

high-speed response

Support fast signal sampling and processing

Meet the real-time requirements of CNC systems and automated production lines

Industrial grade reliability

Adopting anti-interference design, high temperature resistance and vibration resistance

Support long-term continuous operation to ensure system stability

modular design

Plug in card structure, easy to install, maintain and replace

Seamless integration with other modules for easy system expansion

Complete protection function

Built in short circuit and overload protection

Improve system security and reduce the risk of malfunctions

Application scenarios

CNC machine tool: Collecting signals from limit switches, emergency stop buttons, access switches, etc

Automated production line: Collecting sensor signals, such as material arrival, position detection, etc

Industrial motion control system: as a state acquisition module for servo or stepper drive control systems

Equipment monitoring and security protection: Collecting fault or alarm signals, triggering protection or alarm mechanisms

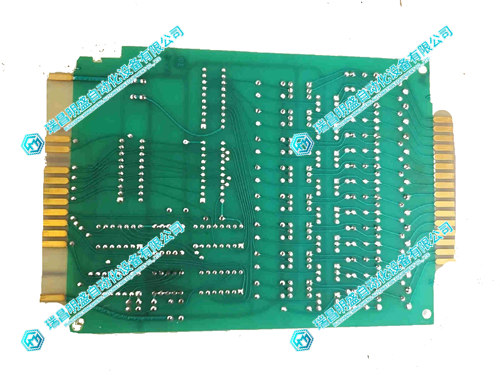

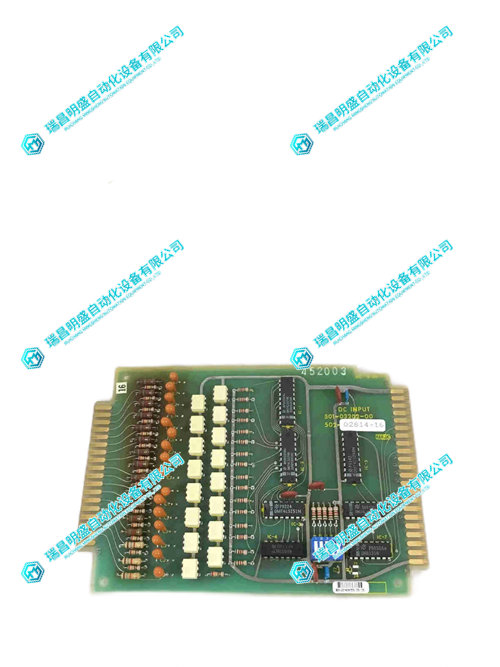

2.产      品      展      示
