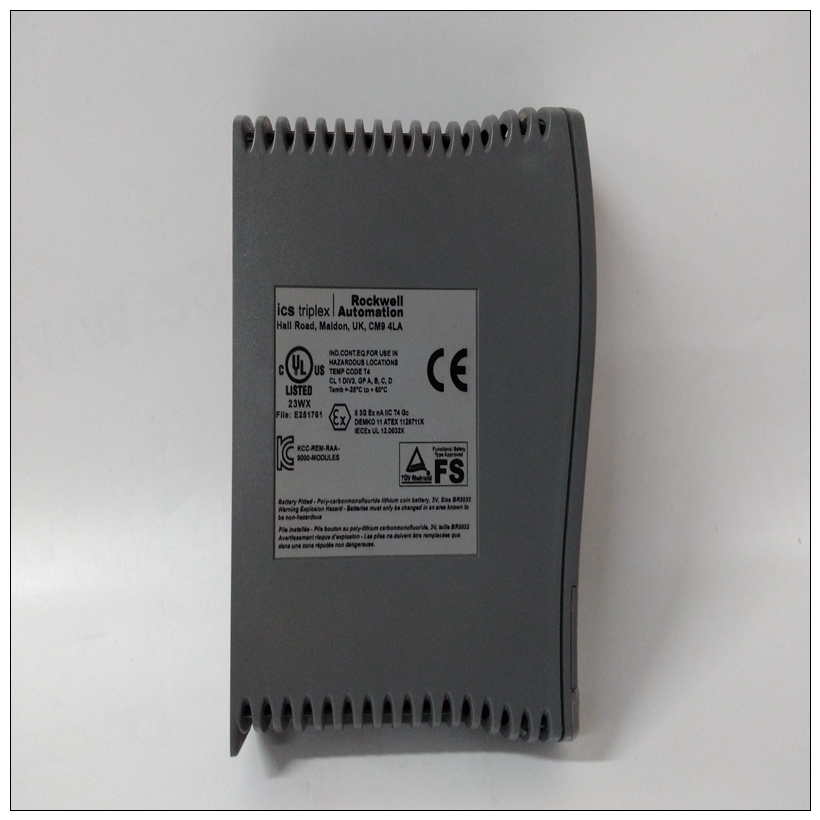

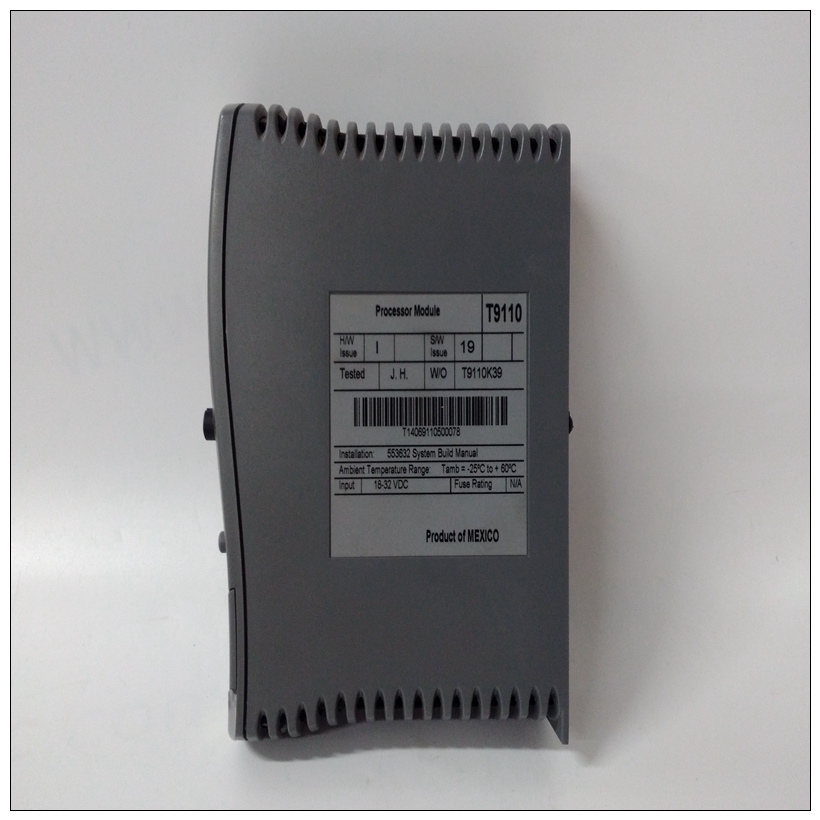

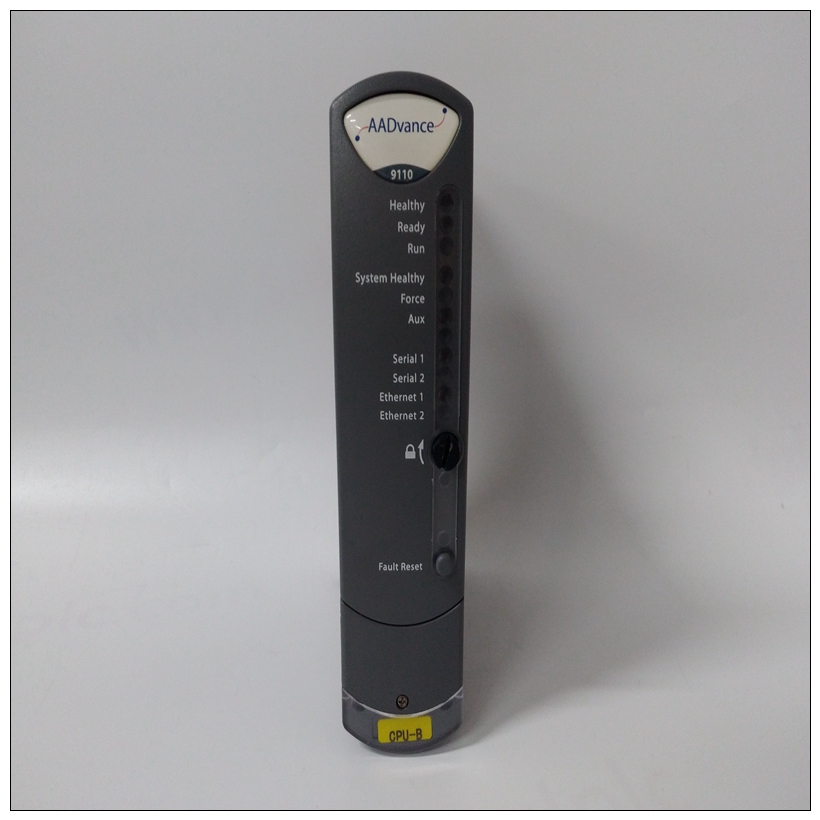

ICS TRIPLEX T9110冗余处理模块，T9110说明书在线阅读
引用的参数是左对齐字符（ASCII）字符串用空格字符填充，并显示引号（“）以指示字符串的大小。未引用的参数被视为数据字符串和数据字符串右对齐。填充数据字符串如果不满足长度，则使用零。电路板信息块在出厂前已配置。无需修改块参数，除非NVRAM已损坏。参考MVME172 VME嵌入式控制器程序员的有关实际位置和其他信息的参考指南电路板信息块。请参阅摩托罗拉的调试包68K CISC CPU用户手册，用于CNFG描述和示例。
ICS TRIPLEX T9110冗余处理模块环境-设置环境使用ENV命令以交互方式查看和/或配置所有错误保存在非易失性RAM（NVRAM）中的操作参数。请参阅摩托罗拉68K CISC CPU用户的调试包ENV使用说明手册。有关的其他信息MVME172LX中影响这些参数的寄存器出现在MVME172 VME嵌入式控制器程序员参考指南。下面列出并描述了您可以配置的参数使用环境。显示的默认值是在以下情况下生效的值：出版物已付印。不要显示现场服务菜单。远程启动方法开关[G/M/B/N]B使用两种方法[全局控制和状态在VMEchip2中注册（GCSR），以及多处理器控制寄存器（MPCR）共享RAM]以传递和执行交叉加载程序。支持输入/输出的探针系统控制器[是/否]Y将访问适当的系统总线（例如VMEbus、本地MPU总线）确定是否存在受支持的控制器。否定VMEbus SYSFAIL∗始终[是/否]N否定VMEbus SYSFAIL∗ 成功后完成或进入错误命令班长本地SCSI总线重置打开调试器启动[是/否]N调试器启动时没有重置本地SCSI总线。本地SCSI总线协商类型[A/S/N]异步协商
The parameters that are quoted are left-justified character (ASCII) strings
padded with space characters, and the quotes (") are displayed to indicate
the size of the string. Parameters that are not quoted are considered data
strings, and data strings are right-justified. The data strings are padded
with zeroes if the length is not met.
The Board Information Block is factory-configured before shipment.
There is no need to modify block parameters unless the NVRAM is
corrupted.
Refer to the MVME172 VME Embedded Controller Programmer’s
Reference Guide for the actual location and other information about the
Board Information Block. Refer to the Debugging Package for Motorola
68K CISC CPUs User's Manual for a CNFG description and examples.ENV - Set Environment
Use the ENV command to view and/or configure interactively all 172Bug
operational parameters that are kept in Non-Volatile RAM (NVRAM).
Refer to the Debugging Package for Motorola 68K CISC CPUs User’s
Manual for a description of the use of ENV. Additional information on
registers in the MVME172LX that affect these parameters appears in your
MVME172 VME Embedded Controller Programmer’s Reference Guide.
Listed and described below are the parameters that you can configure
using ENV. The default values shown were those in effect when this
publication went to print.Do not display field service menu.
Remote Start Method Switch
[G/M/B/N]
B Use both methods [Global Control and Status
Register (GCSR) in the VMEchip2, and
Multiprocessor Control Register (MPCR) in
shared RAM] to pass and execute cross-loaded
programs.
Probe System for Supported I/O
Controllers [Y/N]
Y Accesses will be made to the appropriate
system buses (e.g., VMEbus, local MPU bus)
to determine presence of supported controllers.
Negate VMEbus SYSFAIL∗
Always [Y/N]
N Negate VMEbus SYSFAIL∗ after successful
completion or entrance into the bug command
monitor.
Local SCSI Bus Reset on
Debugger Startup [Y/N]
N No local SCSI bus reset on debugger startup.
Local SCSI Bus Negotiations
Type [A/S/N]
A Asynchronous negotiations
