SANYO DENKI P10B18350BXS20伺服电机 PDF资料
1.产 品 资 料 介 绍：
一、产品概述
SANYO DENKI P10B18350BXS20 属于 SANMOTION P 系列交流伺服电机，额定功率 3.5 kW，法兰尺寸 180 mm。该型号为低速大扭矩设计，无内置制动器，适合中大型自动化机械和工业设备使用。
二、主要技术参数
系列类型：P 系列
额定功率：3.5 kW
额定电压：AC 200–230 V
最高转速：约 2000 r/min
额定扭矩：约 16.7 N·m（可根据负载曲线略有变化）
法兰尺寸：180 mm 方形法兰
惯量类别：中高惯量设计
制动器：无
冷却方式：自然风冷
反馈装置：内置增量式编码器
结构形式：封闭式，具防尘防油密封
三、产品特点
高功率输出
可驱动中大型机械，满足工业自动化中对大功率输出的需求。低速高扭矩
最高转速 2000 rpm，适合低速、大负载的应用场景。结构可靠、安装兼容
方形法兰设计便于安装，可与 P 系列其他型号互换。无制动器版本
适合不需要停机锁定的系统，简化机械设计。适配驱动器灵活
可与 PY2 系列伺服驱动器配合，实现高精度控制。
四、典型应用领域
中大型加工机械进给轴
扭矩型旋转平台或输送机构
自动化生产线驱动
包装、印刷、纺织及机器人系统
系统升级或替换 P 系列旧电机
SANYO DENKI P10B18350BXS20伺服电机 英文介绍
1、 Product Overview
SANYO DENKI P10B18350BXS20 belongs to the SANMOTION P series AC servo motor, with a rated power of 3.5 kW and a flange size of 180 mm. This model is designed for low-speed high torque and does not have built-in brakes, making it suitable for use in medium to large automation machinery and industrial equipment.
2、 Main technical parameters
Series type: P series
Rated power: 3.5 kW
Rated voltage: AC 200-230 V
Maximum speed: about 2000 r/min
Rated torque: approximately 16.7 N · m (can vary slightly according to the load curve)
Flange size: 180mm square flange
Inertia category: Medium to high inertia design
Brake: None
Cooling method: natural air cooling
Feedback device: Built in incremental encoder
Structural form: Closed, with dust-proof and oil proof sealing
3、 Product Features
High power output
It can drive medium to large machinery and meet the demand for high-power output in industrial automation.
Low speed and high torque
The maximum speed is 2000 rpm, suitable for low-speed and high load application scenarios.
Reliable structure and compatible installation
The square flange design is easy to install and can be interchanged with other models in the P series.
Brake free version
Suitable for systems that do not require shutdown locking, simplifying mechanical design.
Flexible adaptation of drivers
Can be paired with PY2 series servo drives to achieve high-precision control.
4、 Typical application areas
Feed axis of medium and large processing machinery
Torque type rotating platform or conveying mechanism
Automated production line driver
Packaging, printing, textile, and robotics systems
System upgrade or replacement of old P series motors

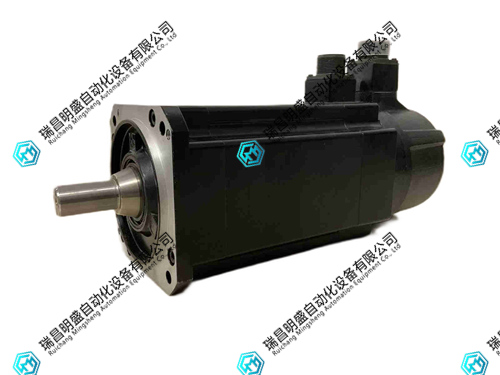

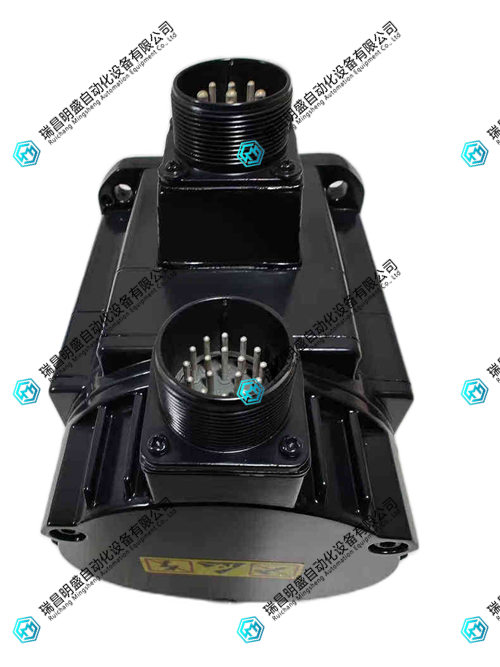

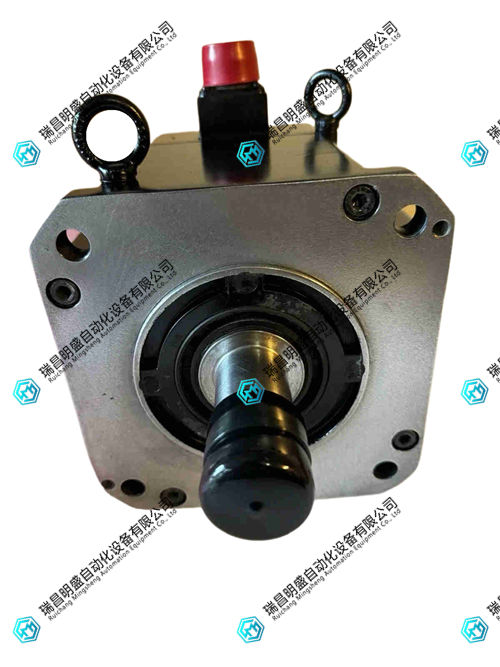

SANYO DENKI P10B18350BXS20伺服电机 产品展示
