SANYO DENKI PY2A050T6MENP1交流伺服放大器 PDF资料
1.产 品 资 料 介 绍：
一、产品概述
SANYO DENKI PY2A050T6MENP1 属于 SANMOTION PY2 系列交流伺服放大器，该系列是专为高速响应与高精度控制而设计的智能型伺服驱动器，适配多种 SANYO DENKI 伺服电机。它能实现位置、速度、扭矩多模式控制，广泛用于自动化设备与精密机械领域。
二、主要技术规格（典型值）
系列型号：PY2 系列
额定输入电源：AC 200–230 V 三相
额定输出电流：约 50 A 级（适配 5 kW 级电机）
控制方式：全数字式电流矢量控制
适用电机类型：SANMOTION Q、R 系列伺服电机
控制模式：位置控制 / 速度控制 / 扭矩控制
指令接口：脉冲信号输入或模拟量输入
反馈类型：增量或绝对值编码器反馈
保护功能：过流、过压、过热、编码器异常、欠压、制动电阻过载等
冷却方式：强制风冷
三、产品特点
高速响应性能
数字化伺服控制回路可实现 2 kHz 以上的响应频率，快速跟随控制指令变化。高精度控制
采用高分辨率反馈系统与优化的电流环控制，定位误差小、转速波动低。智能参数自整定
内置自动增益调整功能，可自动识别负载特性并优化伺服参数，简化调试过程。高可靠性与保护设计
具备完善的自诊断与保护机制，确保在电源波动或过载时安全停机。通讯与扩展接口丰富
支持多种工业通讯协议，可与主控制器或 PLC 实现高效数据交互。模块化结构设计
紧凑的模块化机身便于安装与维护，适合柜式集中布置或单机嵌入式应用。
SANYO DENKI PY2A050T6MENP1交流伺服放大器 英文介绍
1、 Product Overview
SANYO DENKI PY2A050T6MENP1 belongs to the SANMOTION PY2 series AC servo amplifier, which is an intelligent servo driver designed for high-speed response and high-precision control, and is compatible with various SANYO DENKI servo motors. It can achieve multi-mode control of position, speed, and torque, and is widely used in the fields of automation equipment and precision machinery.
2、 Main technical specifications (typical values)
Series model: PY2 series
Rated input power supply: AC 200-230 V three-phase
Rated output current: approximately 50A (suitable for 5 kW motors)
Control mode: fully digital current vector control
Applicable motor types: SANMOTION Q, R series servo motors
Control mode: position control/speed control/torque control
Instruction interface: pulse signal input or analog input
Feedback type: incremental or absolute encoder feedback
Protection functions: overcurrent, overvoltage, overheating, encoder abnormality, undervoltage, brake resistor overload, etc
Cooling method: forced air cooling
3、 Product Features
High speed response performance
The digital servo control circuit can achieve a response frequency of over 2 kHz and quickly follow changes in control instructions.
high-precision control
Adopting a high-resolution feedback system and optimized current loop control, the positioning error is small and the speed fluctuation is low.
Intelligent parameter self-tuning
Built in automatic gain adjustment function, which can automatically identify load characteristics and optimize servo parameters, simplifying the debugging process.
High reliability and protection design
Equipped with comprehensive self diagnosis and protection mechanisms to ensure safe shutdown in case of power fluctuations or overloads.
Rich communication and expansion interfaces
Supports multiple industrial communication protocols and enables efficient data exchange with the main controller or PLC.
Modular structural design
The compact modular body is easy to install and maintain, suitable for cabinet style centralized layout or standalone embedded applications.

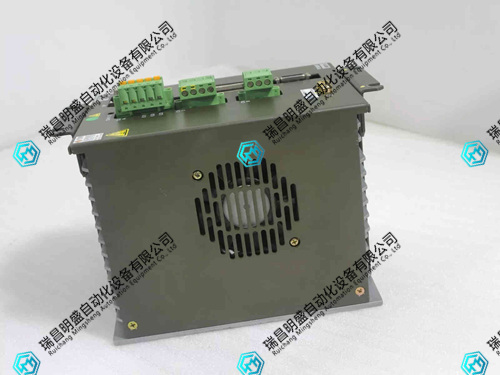

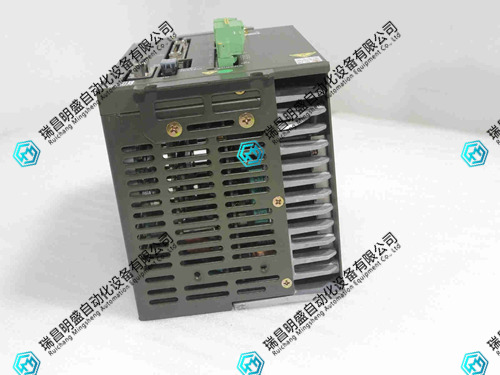

SANYO DENKI PY2A050T6MENP1交流伺服放大器 产品展示
