SANYO DENKI P50B03003PX500控制板卡 PDF资料
1.产 品 资 料 介 绍：
SANYO DENKI P50B03003PX500 控制板卡概述
P50B03003PX500 是一款工业用 伺服控制板卡，通常用于配合 SANYO DENKI 的伺服电机或伺服单元，实现对电机的精准控制和系统保护。它是伺服系统中核心的电子控制模块，主要负责接收上位控制器指令、驱动电机以及处理反馈信号。
主要功能特点
电机驱动
控制板卡内置功率放大器，将控制信号转换为驱动电机的电流和电压。多模式控制
支持位置控制、速度控制及扭矩控制，适应不同工业应用场景。反馈处理
接收编码器或传感器反馈，实时监控电机转速和位置，保证高精度运行。保护与监测
内置过流、过压、过温、短路等保护电路，确保电机和系统安全。通信接口
提供信号输入输出接口，可与上位控制器、PLC 或运动控制器进行数据交换。散热与可靠性设计
功率部分设计有良好的散热通道，确保长时间运行稳定可靠。调试与参数存储
板卡可存储电机及系统参数，便于调试和维护。
典型应用领域
数控机床：用于主轴或进给轴控制，实现高精度加工。
自动化生产线：控制传送、分拣、装配等运动。
工业机器人：驱动关节轴，保证平滑动作。
半导体及电子设备：实现高速搬运和微米级定位。
包装、印刷机械：控制送料、切割和张力。
SANYO DENKI P50B03003PX500控制板卡 英文介绍
Overview of SANYO DENKI P50B03003PX500 Control Board
P50B03003PX500 is an industrial servo control board commonly used in conjunction with SANYO DENKI's servo motors or servo units to achieve precise control and system protection of motors. It is the core electronic control module in the servo system, mainly responsible for receiving instructions from the upper controller, driving the motor, and processing feedback signals.
Main functional features
motor drive
The control board has a built-in power amplifier that converts control signals into current and voltage to drive the motor.
Multi mode control
Support position control, speed control, and torque control to adapt to different industrial application scenarios.
Feedback processing
Receive feedback from encoders or sensors, monitor motor speed and position in real-time, and ensure high-precision operation.
Protection and monitoring
Built in overcurrent, overvoltage, overtemperature, short circuit and other protection circuits ensure the safety of the motor and system.
communication interface
Provide signal input and output interfaces for data exchange with upper level controllers, PLCs, or motion controllers.
Heat dissipation and reliability design
The power section is designed with good heat dissipation channels to ensure stable and reliable long-term operation.
Debugging and parameter storage
The board can store motor and system parameters for easy debugging and maintenance.
Typical application areas
Numerical Control Machine Tool: Used for spindle or feed axis control to achieve high-precision machining.
Automated production line: controls movements such as conveying, sorting, and assembly.
Industrial robots: Drive joint axes to ensure smooth movement.
Semiconductor and electronic devices: achieve high-speed handling and micrometer level positioning.
Packaging and printing machinery: control feeding, cutting, and tension.

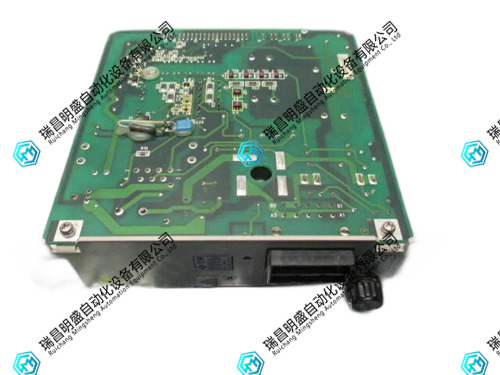

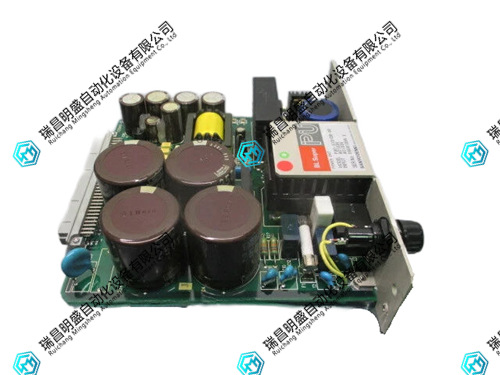

SANYO DENKI P50B03003PX500控制板卡 产品展示
