MOOG G631伺服阀 PDF资料
1.产 品 资 料 介 绍：
Moog G631 伺服阀说明
一、总体概述
Moog G631 系列伺服阀是一款高性能比例伺服阀，广泛应用于航空、工业自动化、机床控制和测试平台等高精度液压系统。
该系列伺服阀能够将电信号精确转换为液压流量或压力输出，实现执行器的精密位置、速度或力控制，满足高动态、高精度的控制需求。
二、主要特性
控制类型：比例伺服阀，用于液压执行器的精确控制
控制方式：电液控制，输入直流电信号调节液压流量
阀口类型：四口三位或三口二位，支持双向液压控制
响应速度：高动态响应，适合快速控制系统
线性特性：输出流量与输入信号高度线性，保证精准控制
重复性：高重复精度，保证执行器动作稳定
电气接口：标准 ±10V 或 ±12V 信号输入，依系统配置而定
三、功能特点
高精度控制
能够实现精确的流量和压力调节，满足高要求液压系统的控制任务。快速响应
阀体结构优化，在高动态系统中可快速响应，减少滞后和过冲。耐用可靠
阀体和内部组件采用高精度加工和耐磨材料，适合长期工业环境使用。广泛适用性
可用于机械臂、飞行控制、测试平台和工业自动化等液压系统。便于调试
支持通过电气信号调节阀工作特性，方便系统集成和性能优化。
MOOG G631伺服阀 英文介绍
Moog G631 servo valve description
1、 Overall Overview
The Moog G631 series servo valve is a high-performance proportional servo valve widely used in high-precision hydraulic systems such as aviation, industrial automation, machine tool control, and testing platforms.
This series of servo valves can accurately convert electrical signals into hydraulic flow or pressure outputs, achieving precise position, speed, or force control of actuators and meeting high dynamic and high-precision control requirements.
2、 Main characteristics
Control type: Proportional servo valve, used for precise control of hydraulic actuators
Control mode: electro-hydraulic control, input DC electrical signal to adjust hydraulic flow rate
Valve port type: four port three position or three port two position, supporting bidirectional hydraulic control
Response speed: High dynamic response, suitable for fast control systems
Linear characteristics: The output flow rate is highly linear with the input signal, ensuring precise control
Repeatability: High repeatability accuracy ensures stable actuator action
Electrical interface: Standard ± 10V or ± 12V signal input, depending on system configuration
3、 Functional Features
high-precision control
Capable of achieving precise flow and pressure regulation to meet the control tasks of high demand hydraulic systems.
quick response
Optimization of valve body structure enables rapid response in high dynamic systems, reducing hysteresis and overshoot.
durable and reliable
The valve body and internal components are made of high-precision machining and wear-resistant materials, suitable for long-term industrial environment use.
wide applicability
Can be used for hydraulic systems such as robotic arms, flight control, testing platforms, and industrial automation.
Easy to debug
Support regulating valve operating characteristics through electrical signals, facilitating system integration and performance optimization.

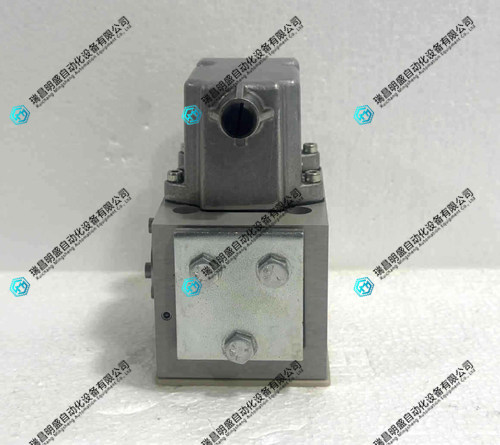

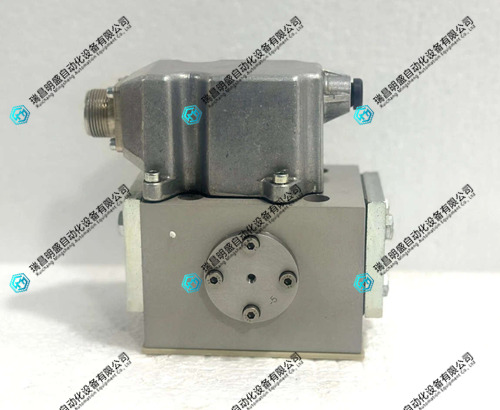

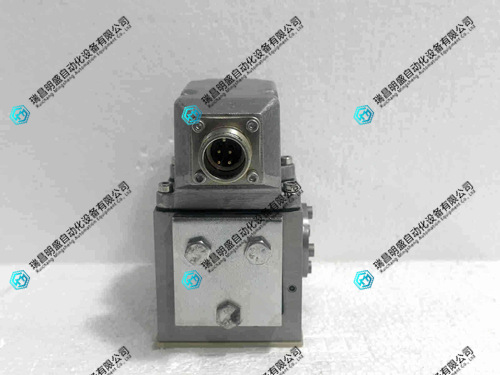

MOOG G631伺服阀 产品展示
