GIDINGS&LEWIS M.1015.6949 伺服电机 PDF资料

1.产 品 资 料 介 绍：

GIDINGS&LEWIS M.1015.6949 伺服电机 产品特点

产品概述

Giddings & Lewis M.1015.6949 属于 NSM2304 系列无刷伺服电机，广泛应用于工业自动化设备。该系列电机以高性能和紧凑设计为核心，适配 Centurion 控制与驱动系统，满足高速、高精度的运动控制需求。

技术特点

1. 电机类型：无刷交流伺服电机，运行稳定，维护量低。

2. 电气性能：额定输入电压 230V AC，适用于常见工业电源环境。

3. 结构设计：高扭矩密度、体积紧凑，安装方便，兼容 NEMA 标准接口。

4. 反馈装置：内置高分辨率编码器，提供精确位置与速度反馈。

5. 扩展选项：可根据需求选择是否带制动器（如 B24 型号）、不同分辨率的编码器配置。

6. 应用灵活性：适合需要高速响应与高精度控制的工况，抗惯性能力强，支持快速启停。

应用场景

• 半导体生产设备

• 自动化包装机械

• 机器人与多轴运动系统

• 材料处理及传送设备

• 精密机床与制造业自动化

产品优势

• 高精度：编码器反馈保证了精准的定位与速度控制。

• 高动态响应：能够快速启动与停止，提升生产效率。

• 可靠性强：无刷设计减少机械磨损，延长使用寿命。

• 安装方便：结构紧凑，适合空间受限的设备。

• 定制化选择：多种反馈与制动配置可满足不同工业应用需求。

英文资料：

GIDINGS&LEWIS M.1015.6949 Servo Motor Product Features

Product Overview

Giddings&Lewis M.1015.6949 belongs to the NSM2304 series brushless servo motor, which is widely used in industrial automation equipment. This series of motors is centered around high performance and compact design, compatible with Centurion control and drive systems, meeting the requirements of high-speed and high-precision motion control.

Technical Features

Motor type: Brushless AC servo motor, stable operation, low maintenance.

Electrical performance: Rated input voltage 230V AC, suitable for common industrial power supply environments.

Structural design: High torque density, compact size, easy installation, compatible with NEMA standard interfaces.

Feedback device: Built in high-resolution encoder, providing precise position and velocity feedback.

Extension options: Users can choose whether to include a brake (such as the B24 model) and configure encoders with different resolutions according to their needs.

Application flexibility: Suitable for working conditions that require high-speed response and high-precision control, with strong anti inertia ability and support for fast start stop.

Application scenarios

Semiconductor production equipment

Automated packaging machinery

Robots and Multi Axis Motion Systems

Material processing and conveying equipment

Precision Machine Tools and Manufacturing Automation

Product advantages

High precision: Encoder feedback ensures precise positioning and speed control.

High dynamic response: able to quickly start and stop, improving production efficiency.

Strong reliability: Brushless design reduces mechanical wear and extends service life.

Easy installation: Compact structure, suitable for devices with limited space.

Customized options: Multiple feedback and braking configurations can meet different industrial application needs.

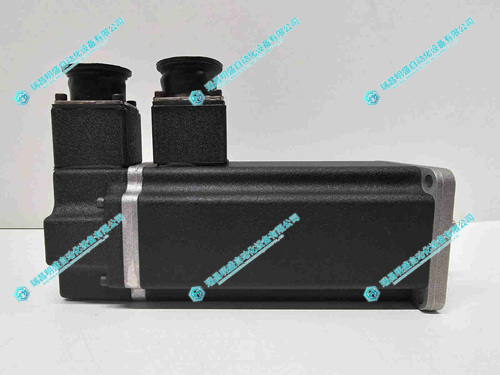

2.产      品      展      示
