NI PXIe-6358高性能多通道数据采集卡
1.产 品 资 料 介 绍：
中文资料：
NI PXIe-6358是一款高性能、多通道数据采集卡，适用于各种测量和控制应用。以下是该设备的配置说明、参数和优点：
配置说明：
- 16个单端或8个差分输入通道，每个通道的最大采样率为1.25 MS/s
- 2个16位的模拟输出通道，每个通道的最大输出率为1.25 MS/s
- 24个数字I/O通道
- 两个计数器/定时器通道
- 支持PCI Express Gen 2.0总线
参数：
- 分辨率：16位
- 输入范围：±10 V，±5 V，±1 V，±500 mV和±100 mV
- 输出范围：±10 V，±5 V，±1 V和±500 mV
- 定时分辨率：20 ns
优点：
- 高性能：PXIe-6358采用16位分辨率，具有高达1.25 MS/s的采样率，可以满足高速数据采集的需求。
- 多通道：该设备具有16个单端或8个差分输入通道、2个模拟输出通道、24个数字I/O通道和2个计数器/定时器通道，可以满足各种测量和控制应用的需求。
- 灵活性：PXIe-6358支持多种输入和输出范围，可以根据应用需求进行配置。
- 可扩展性：PXIe-6358采用PCI Express Gen 2.0总线，可以与其他PXIe设备组合使用，扩展系统功能。
- 可编程性：PXIe-6358提供NI-DAQmx驱动程序和LabVIEW软件支持，可以通过编程实现自定义数据采集和控制应用。
英文资料：
NI PXIe-6358 is a high-performance, multi-channel data acquisition card suitable for various measurement and control applications. The following are the configuration instructions, parameters, and advantages of the device:
Configuration instructions:
16 single ended or 8 differential input channels, with a maximum sampling rate of 1.25 MS/s for each channel
Two 16 bit analog output channels, each with a maximum output rate of 1.25 MS/s
24 digital I/O channels
Two counter/timer channels
Supports PCI Express Gen 2.0 bus
Parameters:
Resolution: 16 bits
Input range: ± 10 V, ± 5 V, ± 1 V, ± 500 mV, and ± 100 mV
Output range: ± 10 V, ± 5 V, ± 1 V, and ± 500 mV
Timing resolution: 20 ns
advantage:
High performance: PXIe-6358 adopts a 16 bit resolution and has a sampling rate of up to 1.25 MS/s, which can meet the needs of high-speed data acquisition.
Multi channel: This device has 16 single ended or 8 differential input channels, 2 analog output channels, 24 digital I/O channels, and 2 counter/timer channels, which can meet the needs of various measurement and control applications.
Flexibility: PXIe-6358 supports multiple input and output ranges and can be configured according to application requirements.
Scalability: PXIe-6358 adopts PCI Express Gen 2.0 bus and can be combined with other PXIE devices to expand system functionality.
Programmability: PXIe-6358 provides NI-DAQmx driver and LabVIEW software support, allowing for customized data collection and control applications through programming.

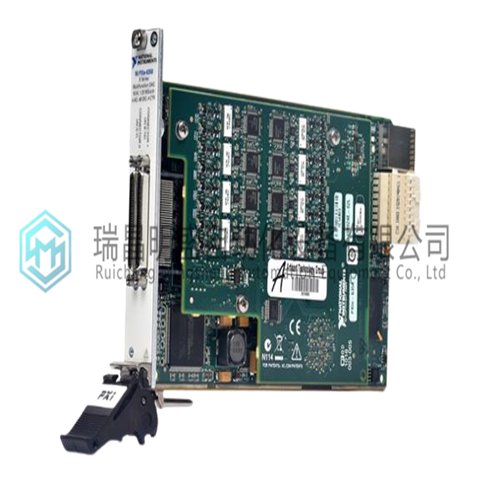

2.产 品 展 示
