NI PCI-5412多通道数据采集卡
1.产 品 资 料 介 绍：
中文资料：
NI PCI-5412是一款高性能的带有高分辨率ADC和DAC的多通道数据采集卡。它可以与计算机系统连接，以进行高速、高精度的数据采集和信号生成应用。以下是该设备的配置说明和参数以及优点：
配置说明：
- 支持4个输入通道和4个输出通道
- 最大采样率为100 MS/s
- 16位ADC和DAC分辨率
- 有多种触发模式和同步选项
- 支持多种信号输入和输出方式
参数：
- ADC分辨率：16位
- ADC采样率：最大100 MS/s
- DAC分辨率：16位
- DAC输出更新率：最大100 MS/s
- 输入通道数量：4个差分或8个单端
- 输出通道数量：4个差分或8个单端
优点：
- 高精度：16位ADC和DAC分辨率可以提供高精度的数据采集和信号生成
- 高速：最大100 MS/s的采样率和输出更新率可以提供高速的数据采集和信号生成
- 多通道：支持4个输入通道和4个输出通道，可以同时处理多个信号
- 多种触发模式和同步选项：可以方便地设置触发条件和同步多个设备
- 多种信号输入和输出方式：可以支持不同类型的信号输入和输出，满足不同应用的需求。
总之，NI PCI-5412是一款高性能、多功能、易于配置和使用的数据采集卡，适用于多种应用场景，例如测试测量、信号处理、控制和仿真等。
英文资料：
NI PCI-5412 is a high-performance multi-channel data acquisition card with high-resolution ADC and DAC. It can be connected to computer systems for high-speed and high-precision data acquisition and signal generation applications. The following are the configuration instructions, parameters, and advantages of the device:
Configuration instructions:
Supports 4 input channels and 4 output channels
Maximum sampling rate of 100 MS/s
16 bit ADC and DAC resolution
There are multiple triggering modes and synchronization options
Supports multiple signal input and output methods
Parameters:
ADC resolution: 16 bits
ADC sampling rate: maximum 100 MS/s
DAC resolution: 16 bits
DAC output update rate: maximum 100 MS/s
Number of input channels: 4 differentials or 8 single ended
Number of output channels: 4 differential or 8 single ended
advantage:
High precision: 16 bit ADC and DAC resolution can provide high-precision data acquisition and signal generation
High speed: A maximum sampling rate of 100 MS/s and output update rate can provide high-speed data acquisition and signal generation
Multi channel: Supports 4 input channels and 4 output channels, capable of processing multiple signals simultaneously
Multiple triggering modes and synchronization options: Easy to set triggering conditions and synchronize multiple devices
Multiple signal input and output methods: It can support different types of signal input and output to meet the needs of different applications.
In summary, NI PCI-5412 is a high-performance, multifunctional, easy to configure and use data acquisition card suitable for various application scenarios, such as testing and measurement, signal processing, control, and simulation.

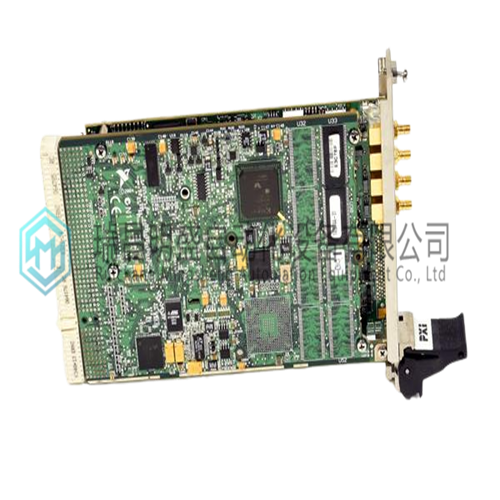

2.产 品 展 示
