INDRAMAT CDB01.1-CS-ENS-NNN-NNN-L2-S-NN-FW驱动 控制器
1.产 品 资 料 介 绍：
中文资料：CDB01.1 -CS-ENS-NNN-NNN-L2-S-NN-FW 控制 部分是一个可配置模块，是驱动 控制器的关键组件之一。这个Bosch Rexroth部件通常不单独提供，而是安装在制造商的驱动控制器内。在未完全放电之前，不应让产品接触裸露的导电部件。该设备应仅配备获得制造商批准的备件和附件。仅当其应用符合国家 EMC 规定时，才允许配备该装置的驱动控制器运行。
控制部分必须在电源关闭后仅半小时进行处理，以便其带电电容器放电。 通电时不得触摸其电气连接点。除控制部分铭牌外，该产品还包含一个固件铭牌。此固件铭牌具有各种详细信息，如类型、序列号、生产周、条形码和工厂标识符。固件必须作为单独的子项目购买。该装置的最小 SERCOS 循环时间为 1,000µs。它具有 2kHz、4kHz 和 8kHz 的开关频率。
本产品的电流控制周期时间为 125µs。标准控制面板具有四个按钮和一个单行显示屏，用于指示错误和命令诊断、运行状态和未决警告。这个不可编程的面板应该在驱动 控制器打开之前插入，以便被识别。它有助于设置位置数据参考。继电器触点有 10 毫秒的释放延迟和拾取延迟。它们还具有最小电流下 1,000 毫欧的接触电阻。数字输入分别支持 -3V 和 30V 的最小和最大输入电压额定值。
英文资料：
The CDB01.1 CS-ENS-NNNN-NNN-L2-S-NN-FW control section is a configurable module and one of the key components of the drive controller. This Bosch Rexroth component is usually not provided separately, but is installed in the manufacturer's drive controller. Before complete discharge, the product should not come into contact with exposed conductive parts. The equipment should only be equipped with spare parts and accessories approved by the manufacturer. The drive controller equipped with this device is only allowed to operate when its application complies with national EMC regulations.
The control part must be processed only half an hour after the power is turned off in order to discharge its live capacitor. Do not touch its electrical connection points when powered on. In addition to the control part nameplate, this product also includes a firmware nameplate. This firmware nameplate has various detailed information, such as type, serial number, production week, barcode, and factory identifier. Firmware must be purchased as a separate sub project. The minimum SERCOS cycle time of this device is 1000 µ s. It has switching frequencies of 2kHz, 4kHz, and 8kHz.
The current control cycle time of this product is 125 µ s. The standard control panel has four buttons and a single line display screen for indicating error and command diagnosis, running status, and pending warnings. This non programmable panel should be inserted before the driver controller is opened for recognition. It helps to set positional data references. The relay contacts have a release delay of 10 milliseconds and a pickup delay. They also have a contact resistance of 1000 milliohms at a minimum current. The digital input supports minimum and maximum input voltage ratings of -3V and 30V, respectively.

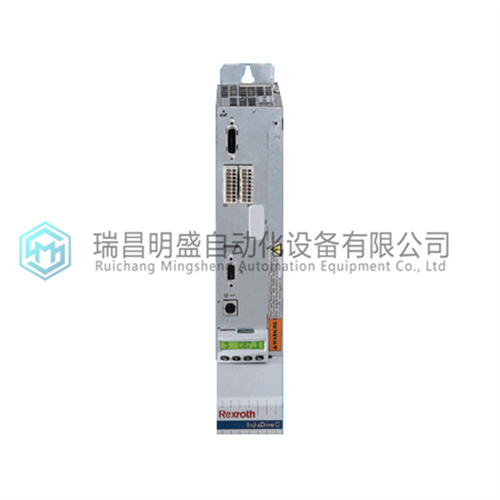

2.产 品 展 示
3.主 营 品 牌
