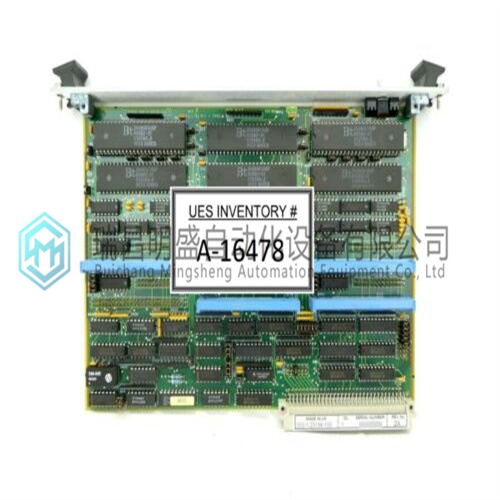

RadiSys 002-1-23158-100工控控制卡件
1.产 品 资 料 介 绍：
中文资料：
RadiSys 002-1-23158-100中间的黄色LED是信号检测指示灯。如果接收器检测到光线，信号检测LED将“点亮”。它可以用作检查光网络是否正确连接到接收器的简单方法。RadiSys 002-1-23158-100顶部的绿色LED是OWN DATA（向下数据）指示灯。当板检测到自己的数据在网络上返回时，它会将此LED设置为“on”。
注意：确保光纤电缆完全连接到接收器，以避免出现错误。即使电缆部分连接，信号检测LED也会亮起。
要超越板的简单读写操作，用户必须理解并操作两个寄存器组中的位。这两个寄存器集被称为：•Universe II寄存器•反射存储器（RFM）控制和状态寄存器RadiSys 002-1-23158-100
RadiSys 002-1-23158-100 II寄存器-这组寄存器是RadiSys 002-1-23158-100 II设备特定控制和状态以及DMA控制寄存器，位于VMEbus桥接器中。Universe II控制和状态寄存器有助于主机系统配置，并允许用户控制VME总线桥接操作特性
英文资料：
The middle yellow LED is the signal detect indicator. The signal detect LED turns “ON” if the receiver detects light. It can be used as a simple method of checking that the optical network is properly connected to the receiver. The top green LED is the OWN DATA indicator. When a board detects its own data returning on the network, it sets this LED “ON”.
NOTE: Ensure that the fiber-optic cables are completely connected to the receiver to avoided errors. The signal detect LED will come on even when the cable is partially connected.
To go beyond the simple read and write operation of the board, the user must understand and manipulate bits within two register sets. The two register sets are referred to as: • Universe II Registers • Reflective Memory (RFM) Control and Status Registers
Universe II Registers - This set of registers are the Universe II Device Specific Control and Status and DMA Control Registers, residing in the VMEbus bridge. The Universe II Control and Status Registers facilitate host system configuration and allow the user to control VMEbus bridge operational characteristics
