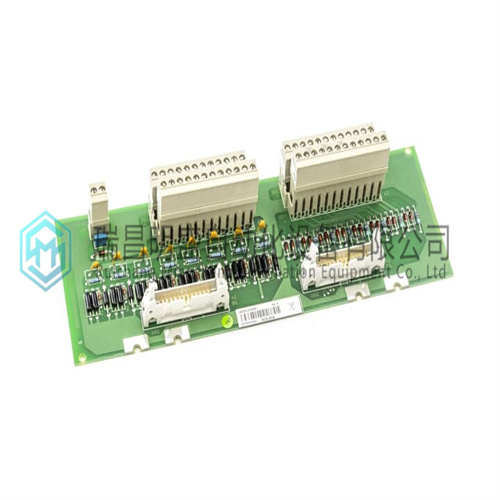

ABB DSTA001A 3BSE015195R1输入输出模块
1.产 品 详 情 资 料：
F（ault）LED亮起可能原因1：ABB DSTA001A 3BSE015195R1模块正在升级固件（如果正在升级）。纠正措施1：等待固件升级。可能原因2：ABB DSTA001A 3BSE015195R1模块出现故障。纠正措施2：热插拔ABB DSTA001A 3BSE015195R1模块。纠正措施3：如果在执行纠正措施1和2后指示仍然存在，则更换ABB DSTA001A 3BSE015195R1模块。R（un）指示灯亮起绿色R（un）指示灯表示ABB DSTA001A 3BSE015195R1正在运行。Rx/Tx1、Rx/Tx2和Rx/Tx3指示灯闪烁ABB DSTA001A 3BSE015195R1模块上的每个端口对应一个指示灯。当与端口对应的LED闪烁时，表明该特定端口上正在进行通信。Rx/Tx1、Rx/Tx2、Rx/Tx3 LED熄灭可能原因1：光纤电缆未连接或未正确连接到端口。纠正措施1：执行以下任何操作：•检查相应的光缆连接，即，该特定端口的反向发射器和接收器光缆的连接，以及DOW MOD5控制器上的连接。•检查连接到该特定端口的MOD5控制器上的网络控制器板（NCB）。可能原因2：配置没有从硬件树（在控制生成器中）下载到控制器。纠正措施2：确保在硬件树中将模块配置到正确的位置，并将配置下载到控制器。
F(ault) LED is ON Possible Cause 1: The ABB DSTA001A 3BSE015195R1 module is in the process of upgrading the firmware (if the upgrade is in progress). Corrective Action 1: Wait for the firmware to be upgraded. Possible Cause 2: Fault in the ABB DSTA001A 3BSE015195R1 module. Corrective Action 2: Hot remove and hot insert the ABB DSTA001A 3BSE015195R1 module. Corrective Action 3: If the indication persists after performing the corrective actions 1 and 2, then replace the ABB DSTA001A 3BSE015195R1 module. R(un) LED is ON The green R(un) LED indicates that CABB DSTA001A 3BSE015195R1is operational. Rx/Tx1, Rx/Tx2, and Rx/Tx3 LEDs are flashing There is one LED corresponding to each port on the CABB DSTA001A 3BSE015195R1module. When the LED corresponding to a port flashes, it indicates that communication is happening on that particular port. Rx/Tx1, Rx/Tx2, Rx/Tx3 LED is OFF Possible Cause 1: The fiber optic cable is not connected or it is not connected properly to the port. Corrective action 1: Do any of the following: • Check the corresponding optical cable connections, that is, the connections for reversed transmitter and receiver optical cables for that particular port, and the connections on the DOW MOD5 controller. • Check the Network Controller Board (NCB) on the MOD5 Controller connected to that particular port. Possible Cause 2: The configuration is not downloaded from the Hardware Tree (in the Control Builder) to the controller. Corrective Action 2: Ensure that the module is configured in the Hardware Tree for the correct position and the configuration is downloaded to controller.
2.产 品 展 示
