ABB 70BV05a-ES HESG447433R1控制主板卡件
1.产 品 详 情 资 料:
F(ault)LED亮起可能原因1:ABB 70BV05a-ES HESG447433R1模块正在升级固件(如果正在升级)。纠正措施1:等待固件升级。可能原因2:ABB 70BV05a-ES HESG447433R1模块出现故障。纠正措施2:热插拔ABB 70BV05a-ES HESG447433R1模块。纠正措施3:如果在执行纠正措施1和2后指示仍然存在,则更换ABB 70BV05a-ES HESG447433R1模块。Rx LED亮起(不闪烁)ABB 70BV05a-ES HESG447433R1模块可操作,正在接收和传输数据。Rx LED闪烁频率较低可能原因1:双绞线对(TWP)未连接或未正确连接到4针触点。纠正措施1:检查TWP连接。Rx LED闪烁的频率比TWP未连接时高50%可能原因1:配置未从硬件树(在控制生成器中)下载到控制器。纠正措施1:确保在硬件树中将ABB 70BV05a-ES HESG447433R1模块配置在正确的位置,并将配置下载到控制器。Rx LED闪烁的频率比TWP未连接时高75%可能原因:至少有一个配置的DSP在轮询时没有响应。纠正措施:正确配置DSP
F(ault) LED is ON Possible Cause 1: The ABB 70BV05a-ES HESG447433R1 module is in the process of upgrading the firmware (if the upgrade is in progress). Corrective Action 1: Wait for the firmware to be upgraded. Possible Cause 2: Fault in the ABB 70BV05a-ES HESG447433R1 module. Corrective Action 2: Hot remove and hot insert the ABB 70BV05a-ES HESG447433R1 module. Corrective Action 3: If the indication persists after performing the corrective actions 1 and 2, then replace the CABB 70BV05a-ES HESG447433R1module. Rx LED is ON (without flashing) The CABB 70BV05a-ES HESG447433R1module is operational, and it is receiving and transmitting data. Rx LED is flashing with less frequency Possible Cause 1: The twisted wire pair (TWP) is not connected or it is not connected properly to the 4-pin contact. Corrective action 1: Check the TWP connections. Rx LED is flashing with 50% more frequency than when the TWP is not connected Possible Cause 1: The configuration is not downloaded from the Hardware Tree (in the Control Builder) to the controller. Corrective Action 1: Ensure that the CABB 70BV05a-ES HESG447433R1module is configured in the Hardware Tree for the correct position and the configuration is downloaded to controller. Rx LED is flashing with 75% more frequency than when the TWP is not connected Possible Cause: At least one of the configured DSPs does not respond when polled. Corrective Action: Configure the DSPs correctly

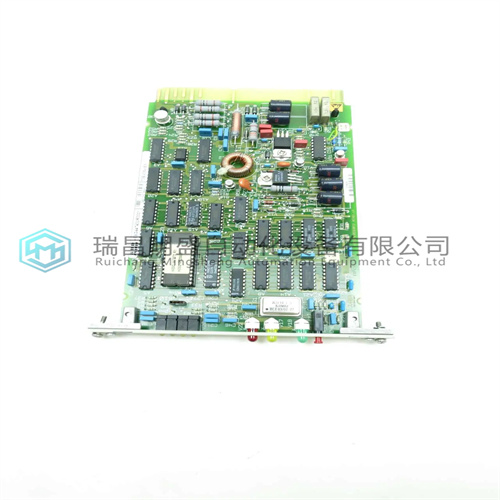

2.产 品 展 示
3.公 司 优 势 主 营 产 品
4.相 关 产 品 展 示
