ABB 23KT92 GJR5250500R5101模块卡件
1.产 品 详 情 资 料：
数据库总线；Tx1 LED熄灭装置未正确配置或装置错误。•检查CB是否有故障信息。•如果没有故障消息，则更换CI858单元。输入/输出；Rx1 LED点亮（不闪烁）装置未接收数据。•检查所有电缆和连接。•如果没有故障消息，则更换CI858单元。输入/输出；Rx1 LED熄灭没有信号发送到装置或装置错误。•检查所有电缆和连接。•更换CI858装置。输入/输出；Tx1 LED亮起（不闪烁）装置未传输数据。•检查CB是否有故障信息。•如果CB中没有故障消息，则更换CI858单元。输入/输出；Tx1 LED熄灭装置未正确配置或装置错误。•检查CB是否有故障信息。•如果没有故障消息，请更换CI858单元。R（un）和F（ault）指示灯均不亮。ABB 23KT92 GJR5250500R5101板正在重新启动或配置过程中。请留出时间以便最终确定。如果情况持续存在，并且CEX总线上的其他单元指示灯未点亮：•检查是否将包括ABB 23KT92 GJR5250500R5101在内的有效硬件配置下载到控制器。•检查日志文件•检查CPU单元内的CEX总线保险丝。•启动来自CPU单元的复位信号（INIT）。•更换ABB 23KT92 GJR5250500R5101装置。
Dbus;Tx1 LED is OFF The unit is not properly configured or unit error. • Check the CB for a failure message. • If there is no failure message replace the CI858 unit. I/O;Rx1 LED is ON (not flashing) The unit is not receiving data. • Check all cables and connections. • If there is no failure message replace the CI858 unit. I/O;Rx1 LED is OFF No signals are sent to the unit or unit error. • Check all cables and connections. • Replace the CI858 unit. I/O;Tx1 LED is ON (not flashing) The unit is not transmitting data. • Check the CB for a failure message. • If there is no failure message in the CB replace the CI858 unit. I/O;Tx1 LED is OFF The unit is not properly configured or unit error. • Check the CB for a failure message. • If there is no failure message replace the CI858 unit.Neither R(un) nor F(ault) LEDs are ON The ABB 23KT92 GJR5250500R5101 board is in the process of being restarted or configured. Allow time for this to finalize. If the condition persists, and no other unit LED on the CEX-Bus is lit: • Check that a valid HW configuration including the ABB 23KT92 GJR5250500R5101 is downloaded to the controller. • Check the Log File • Check the CEX-Bus fuse inside the CPU unit. • Initiate a reset signal (INIT) from the CPU unit. • Replace the ABB 23KT92 GJR5250500R5101 unit.

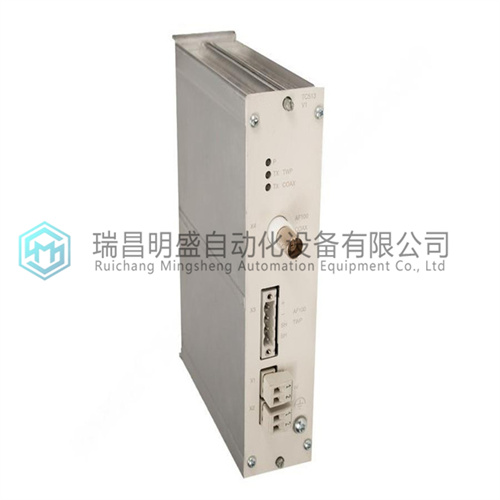

2.产 品 展 示
3.公 司 优 势 主 营 产 品
4.相 关 产 品 展 示
本篇文章出自瑞昌明盛自动化设备有限公司官网，转载请附上此链接:http://www.jiangxidcs.com
