ABB SDCS-UCM-1 3ADT220090R0008输入输出模块
1.产 品 详 情 资 料：
F（故障）LED点亮控制器重新启动（INIT），正在进行中。•等待控制器重新启动完成。缺少固件。•升级固件。固件升级正在进行。•等待固件升级完成。固件升级失败。•使用串行固件升级。TB852缺失•检查TB852连接（PM861、PM864、PM865）。其他•检查控制器日志。F（故障）LED闪烁正在进行固件升级：•等待固件升级完成。其他•检查控制器日志。R（un）LED熄灭控制器中未加载应用程序。•下载应用程序。控制器应用程序失败。•重启控制器（INIT按钮）。•下载应用程序。B（电池）LED闪烁。电池电压（内部或外部）低于3.1 V或不存在。•安装新电池。外部电池电缆断开。•连接外部电池电缆DUAL LED在两个CPU上都熄灭CPU正在重新启动或配置过程中。留出时间完成。RCU链接电缆断开。•连接RCU链接电缆。两个CPU中的不同控制软件。•使用相同的控制软件升级CPU。故障指示灯亮起检查控制器日志。
F(ault) LED is ON Controller Re-start, (INIT), in progress. • Wait for Controller restart to finalize. Missing firmware. • Upgrade firmware. Firmware upgrade in progress. • Wait for FW upgrade to finalize. Firmware upgrade failure. • Use serial FW upgrade. Missing TB852 • Check TB852 connection (PM861, PM864, PM865). Other • Check controller log. F(ault) LED is flashing Firmware upgrade in progress: • Wait for FW upgrade to finalize. Other • Check controller log. R(un) LED is OFF No application loaded in the Controller. • Download application. Controller application failed. • Restart Controller (INIT push button). • Download application.B(attery) LED is flashing Battery voltage (Internal or External) is below 3.1 V or non-existent. • Install new battery. External battery cable disconnected. • Connect external battery cable DUAL LED is OFF on both CPUs The CPUs are in the process of being re-started or configured. Allow time for this to finalize. RCU Link Cable disconnected. • Connect the RCU Link Cable. Different Control Software in the two CPUs. • Upgrade the CPUs with the same control software. Fault LED is ON Check controller log.

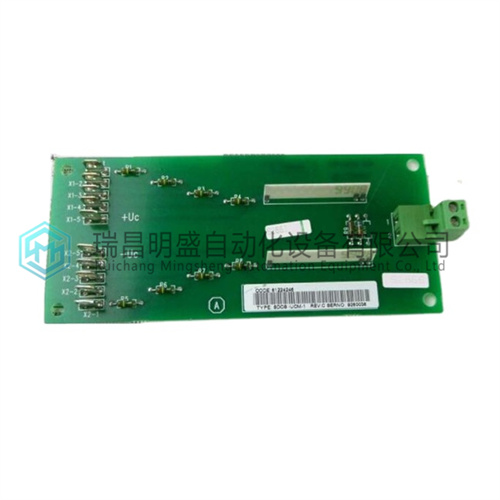

2.产 品 展 示
