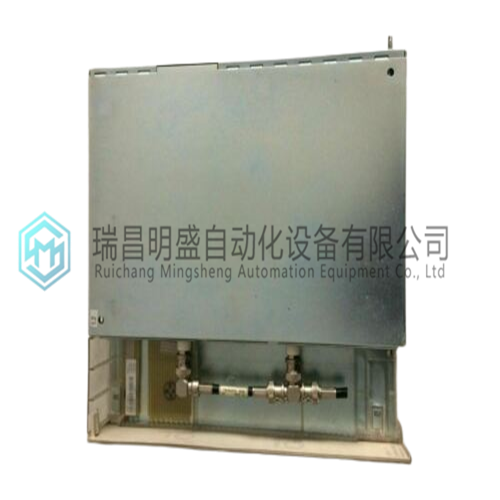

ABB CI626V1 3BSE012868R1控制器
1.产 品 详 情 资 料:
ABB CI626V1是一款数字输入输出模块,用于连接控制器和外部设备,以完成数字信号的输入和输出。以下是该产品的特点、使用方法和参数详情:
产品特点:
- 具有16个数字输入通道和16个数字输出通道
- 支持多种数字信号类型,包括24 V DC、48 V DC、110 V AC 和220 V AC
- 可以通过直接连接到控制器或通过Profibus-DP总线连接到控制器
- 具有高速输入和输出响应时间,可实现精确的数字信号控制
使用方法:
- 确认CI626V1模块的工作电源符合要求,并将其插入到控制器的扩展槽中。
- 根据需要配置CI626V1模块的输入和输出通道,包括选择数字信号类型和通道数量。
- 将外部数字设备连接到CI626V1模块的输入和输出端口上。
- 根据需要在控制器中编程,以控制CI626V1模块的输入和输出信号。
参数详情:
- 电源要求:24 V DC(18-30 V DC)
- 输入通道数:16
- 输出通道数:16
- 数字输入信号类型:24 V DC、48 V DC、110 V AC 和220 V AC
- 数字输出信号类型:24 V DC、48 V DC
- 输入响应时间:2 ms
- 输出响应时间:1 ms
- 最大负载电流:2 A per channel
- 工作温度范围:-40°C to +70°C
- 模块尺寸:71 x 195 x 118 mm (W x H x D)
- 重量:约0.5 kg
以上是ABB CI626V1的产品特点介绍、使用方法和参数详情,希望对您有所帮助。
ABB CI626V1 is a digital input and output module used to connect the controller and external equipment to complete the input and output of digital signals. The following are the features, use methods and parameters of the product:
Product features:
With 16 digital input channels and 16 digital output channels
Support a variety of digital signal types, including 24 V DC, 48 V DC, 110 V AC and 220 V AC
It can be connected to the controller directly or via Profibus-DP bus
With high-speed input and output response time, accurate digital signal control can be achieved
usage method:
Confirm that the working power supply of the CI626V1 module meets the requirements, and insert it into the expansion slot of the controller.
Configure the input and output channels of CI626V1 module as required, including the selection of digital signal type and channel number.
Connect the external digital equipment to the input and output ports of the CI626V1 module.
Program in the controller as required to control the input and output signals of CI626V1 module.
Parameter details:
Power requirements: 24 V DC (18-30 V DC)
Number of input channels: 16
Number of output channels: 16
Digital input signal type: 24 V DC, 48 V DC, 110 V AC and 220 V AC
Digital output signal type: 24 V DC, 48 V DC
Input response time: 2 ms
Output response time: 1 ms
Maximum load current: 2 A per channel
Operating temperature range: - 40 ° C to+70 ° C
Module size: 71 x 195 x 118 mm (W x H x D)
Weight: about 0.5 kg
The above is the introduction of ABB CI626V1 product features, usage methods and parameter details. I hope it can help you.
