BENTLY 3500/93-03-01-00振动变送器
1.产 品 介 绍
品牌：BENTLY
型号说明：BENTLY 3500/93-03-01-00振动变送器
优势：供应进口原装正品，专业停产配件。
公司主营特点：主营产品各种模块/卡件，控制器，触摸屏，伺服驱动器。
2.产 品 详 情 资 料：
BENTLY 3500/93-03-01-00是一种震动监测系统，可用于监测机械设备的振动和轴承状态。以下是该产品的特点、使用方法和参数规格：
特点：
- 高精度测量：3500系统具有高分辨率、高精度的震动和轴承状态测量能力，可提供准确的机械设备状态数据。
- 多通道监测：该系统可以同时监测多个通道，对于大型机械设备或者需要监测多个位置的设备非常有用。
- 数据记录和分析：3500系统具有内置的数据记录和分析功能，可以对长期运行的机械设备进行长时间的状态监测和故障诊断。
- 易于配置和使用：该系统提供了易于使用的配置界面和用户界面，可以快速配置和使用。
使用方法：
- 连接传感器：将传感器连接到系统中，可以通过多种传感器连接方式，包括加速度计、速度计、位移传感器等。
- 配置系统：使用3500系统提供的配置界面进行系统配置，包括传感器类型、通道设置、数据记录设置等。
- 监测数据：启动系统并开始监测机械设备的振动和轴承状态，可以使用系统提供的用户界面查看监测数据。
参数规格：
- 输入类型：模拟输入或数字输入
- 输入通道：最多可以监测16个通道
- 测量范围：加速度测量范围为0-25 g，速度测量范围为0-10 ips，位移测量范围为0-2 mils
- 分辨率：加速度分辨率为0.001 g，速度分辨率为0.001 ips，位移分辨率为0.1 mils
- 数据记录：最多可以记录4个通道的数据，记录时间最长可达100小时
- 输出接口：RS-232、RS-485、Ethernet
- 工作温度范围：-20°C ~ 70°C
- 尺寸：标准19英寸机架尺寸，高度为5U
BENTLY 3500/93-03-01-00 is a vibration monitoring system that can be used to monitor the vibration and bearing status of mechanical equipment. The following are the features, use methods and parameter specifications of the product:
characteristic:
High-precision measurement: The 3500 system has the ability to measure vibration and bearing status with high resolution and precision, and can provide accurate mechanical equipment status data.
Multi-channel monitoring: the system can monitor multiple channels at the same time, which is very useful for large mechanical equipment or equipment that needs to monitor multiple locations.
Data recording and analysis: The 3500 system has built-in data recording and analysis functions, which can carry out long-term status monitoring and fault diagnosis for mechanical equipment in long-term operation.
Easy to configure and use: The system provides an easy-to-use configuration interface and user interface, which can be configured and used quickly.
usage method:
Connect sensor: connect the sensor to the system through a variety of sensor connection methods, including accelerometer, accelerometer, displacement sensor, etc.
Configure the system: use the configuration interface provided by the 3500 system to configure the system, including sensor type, channel settings, data record settings, etc.
Monitoring data: start the system and start monitoring the vibration and bearing status of mechanical equipment. You can use the user interface provided by the system to view the monitoring data.
Parameter specification:
Input type: analog input or digital input
Input channel: up to 16 channels can be monitored
Measurement range: acceleration measurement range is 0-25 g, speed measurement range is 0-10 ips, displacement measurement range is 0-2 mils
Resolution: acceleration resolution is 0.001 g, velocity resolution is 0.001 ips, displacement resolution is 0.1 mils
Data recording: The data of up to 4 channels can be recorded for up to 100 hours
Output interface: RS-232, RS-485, Ethernet
Operating temperature range: - 20 ° C~70 ° C
Size: standard 19-inch rack size, height 5U

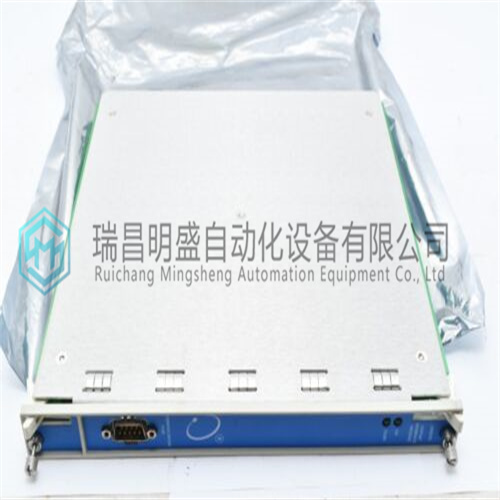

3.产 品 展 示
