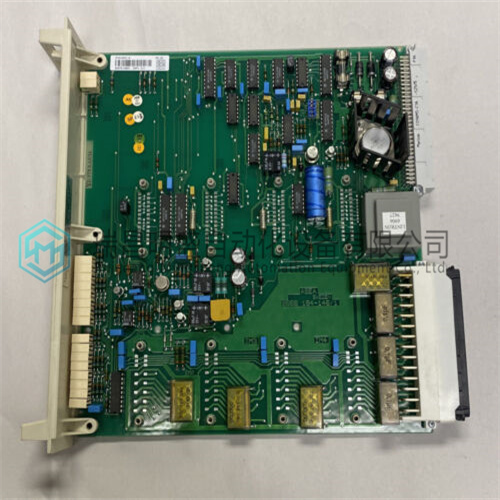

ABB DSPX-310 57310001-S处理器模块
产品详情资料：
ABB DSPX-310 57310001-S处理器模块模块镜头盖。它位于模块的顶部前部，覆盖着LED（发光二极管）状态灯。它们在下图中分为两组，A至A8和B至B8。由于这是一个6点输出模块的图形，因此有6个LED状态灯。（任何给定模块上的状态灯数量是该模块上电路点数量的函数。）如果将这些状态灯与铰接盖背面的连接图进行比较，您会注意到该模块上的输出分为两组，ABB DSPX-310 57310001-S分别标记为a-A8和B-B8，分别对应于a和B行状态LED。注意镜头盖右侧标有字母F的附加LED。这是保险丝熔断的指示灯。此字母F出现在所有离散I/O模块镜头盖上，但仅适用于具有内部保险丝的某些输出模块。只有内部保险丝熔断时，它才会亮起。本手册第3章提供了带有保险丝的模块列表以及有关状态LED的其他详细信息的表格。ABB DSPX-310 57310001-S
ABB DSPX-310 57310001-SModule Lens Cap. Located on the top front of the module, it covers the LED (Light Emitting Diode) status lights . These are labeled in the following figure in two groups, A through A8, and B through B8. Since this is a figure of a 6-Point Output module, there are 6 LED status lights. (The number of status lights on any given module is a function of the number of circuits points on that module.) If you compare these status lights to the connection diagram on the back of the hinged cover, you will notice that the outputs on this module are in two groups,ABB DSPX-310 57310001-S labeled A-A8 and B-B8, that correspond to the A and B rows of status LEDs. Note the additional LED on the right side of the lens cap that is labeled with the letter F. This is a blown fuse indicator light. This letter F is present on all of the discrete I/O module lens caps, but is only functional on certain Output Modules that have internal fuses. It only lights if an internal fuse is blown. A table with a list of modules having fuses as well as other details about the status LEDs is provided in Chapter 3 of this manual.ABB DSPX-310 57310001-S
品牌：ABB
型号：ABB DSPX-310 57310001-S处理器模块
产品说明：控制器
特点：模块/卡件，控制器，触摸屏，伺服驱动器
