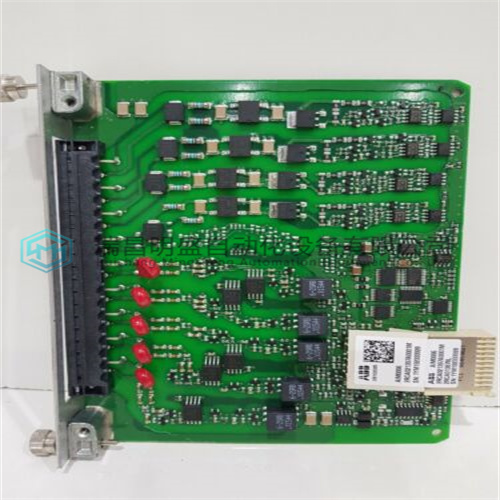

ABB AIM0006 2RCA021397A0001P以太网板
产品详情资料：
ABB AIM0006 2RCA021397A0001P以太网板铰链式前盖。盖子很容易打开以接近端子板连接。通常，它保持关闭，以防止人员意外接触热端子。请注意，在下图中，前盖插件的背面包含端子板连接的示意图。模块目录号（所示示例中为IC693MDL940）印在前盖插件的底部。ABB AIM0006 2RCA021397A0001P模块目录号也印在模块侧面的标签上。但是，为了看到该侧标签，必须从PLC中移除模块。在前盖插入件的前侧，是与模块的I/O点相对应的线。如图中的示例所示，您可以暂时移除插件，并将每个点的信号名称写在适当的线上。此外，在前盖插件的前侧，在插件的左边缘垂直延伸，有一个颜色条，用于标识模块类型：蓝色=DC，红色=AC，灰色=模拟。ABB AIM0006 2RCA021397A0001P
ABB AIM0006 2RCA021397A0001PHinged Front Cover. The cover is easily opened to access the terminal board connections. Normally it’s kept closed to protect personnel from accidentally touching a hot terminal. Note in the following figure that the back side of the front cover insert contains a schematic diagram of the terminal board connections. The module catalog number (IC693MDL940 in the example shown) is printed on the bottom of the front cover insert. The module catalog number is also printed on the label on the side of the module. However, ABB AIM0006 2RCA021397A0001Pin order to see this side label, the module has to be removed from the PLC On the front side of the front cover insert are lines that correspond to the module’s I/O points. You can temporarily remove the insert and write the signal name for each point on the appropriate line, as shown in the example in the figure. Also on the front side of the front cover insert, running vertically on the left edge of the insert, is a color bar that identifies the type of module: Blue = DC, Red = AC, and Gray = Analog.ABB AIM0006 2RCA021397A0001P
品牌：ABB
型号：ABB AIM0006 2RCA021397A0001P以太网板
产品说明：控制器
特点：模块/卡件，控制器，触摸屏，伺服驱动器
