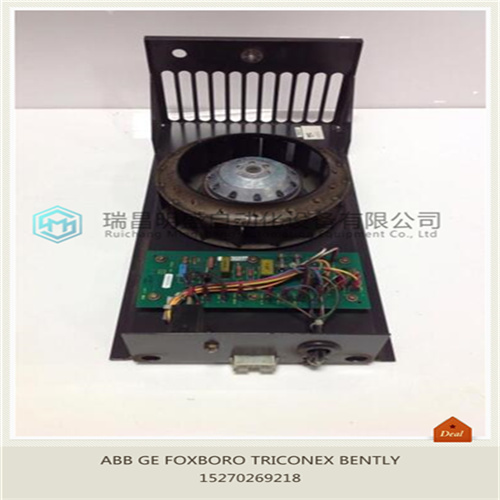

ABB IPFAN11风扇模块
品牌：ABB
型号：ABB IPFAN11
产品说明：风扇模块
ABB IPFAN11风扇模块中文资料：
ABB IPFAN11风扇模块底板术语底板：指底板中的电路板。它包含插入式模块的底板电路和插座。机架：该术语适用于由基板、电源和其他模块组成的组件。机架编号：在需要多个机架的系统中，每个机架都有自己的唯一编号，使CPU能够区分一个机架和另一个机架。CPU机架的机架编号始终为0（零）。插槽编号：基板上的每个模块位置（称为“插槽”）都有一个唯一的编号（除了未编号的左侧插槽，该插槽用于电源）。电源插槽右侧的插槽始终称为插槽1。这些槽号标记在底板的塑料盖上。每个插槽都有一个用于模块连接的连接器，以及用于将模块固定到位的顶部和底部固定器。模块位置：由于每个机架都分配了一个唯一的编号，而且机架底板上的每个插槽都有一个唯一插槽编号，因此系统中每个单独模块的位置都可以通过其机架和插槽编号来识别。例如，模块可以称为“机架1插槽4中的模块”。这种编号方法使CPU能够正确读取和写入特定模块，并报告故障模块的位置。
英文资料
Baseplate Terms Backplane: Refers to the circuit board in the baseplate. It contains the baseplate circuitry and sockets for plug-in modules. Rack: This term applies to an assembly consisting of a baseplate, power supply, and other modules. Rack Number: In systems that require more than one rack, each rack is given its own unique number, which enables the CPU to distinguish one rack from another. The CPU rack always has a rack number of 0 (zero). Slot Number: Each module location (called a ”slot”) on a baseplate has a unique number (except for the unnumbered left slot, which is for the Power Supply). The slot to the right of the Power Supply slot is always called Slot 1. These slot numbers are marked on the baseplate’s plastic cover. Each slot has a connector for module connections and top and bottom retainers for holding the module in place. Module Location: Since each rack is assigned a unique number, and since each slot in a rack’s baseplate has a unique slot number, each individual module’s location in a system can be identified by its rack and slot numbers. For example, a module could be referred to as ”the module in Rack 1, Slot 4.” This numbering method enables the CPU to correctly read from and write to a particular module, and report the location of a faulted module.
