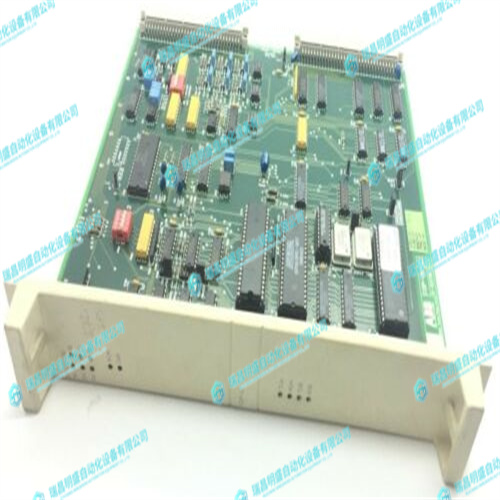

ABB IOP-05 E32767机器人卡件
ABB IOP-05 E32767机器人卡件 中文资料：
ABB IOP-05 E32767机器人卡件 因此，当电缆插入底板连接器时，电缆该端上的第二连接器提供用于连接到下一电缆的插座。“电缆”一章中的I/O总线扩展电缆（IC693CBL300等）数据表中有接线图示例。10.在最后一个I/O总线扩展连接器上，插入目录号为IC693ACC307的I/O总线扩展终端（除非使用带有内置终端电阻器的电缆，该电缆可以是GE Fanuc电缆IC693CBL302，也可以是您自己定制的电缆）。11.使用系统布局图将模块安装在正确的插槽中。ABB IOP-05 E32767（每个模块侧面的标签标识模块类型和目录号。）如果您不熟悉如何安装模块，请参阅“安装模块”一节。12.将电缆连接到选件模块。将电缆布线远离产生噪音的电线。请参阅本章的“布线”部分。ABB IOP-05 E32767
英文资料
Therefore, when the cable is plugged into a baseplate connector, the second connector on that end of the cable provides a socket for connecting to the next cable. The data sheet for the I/O Bus Expansion cables (IC693CBL300 etc.) in the “Cables” chapter has sample wiring figures. 10. On the last I/O Bus Expansion Connector, plug in an I/O Bus Expansion Terminator, Catalog Number IC693ACC307 (unless using a cable with built-in terminator resistors, which would either be GE Fanuc cable IC693CBL302, or your own custom-built cable). 11. Install the modules in their correct slots using your system layout drawings. (The label on the side of each module identifies the module type and catalog number.) Refer to the section “Installing Modules” if you are not familiar with how to do this. 12. Connect cables to Option modules. Route cables away from noise-producing wires. See the ”Wire Routing” section of this chapter.ABB IOP-05 E32767
