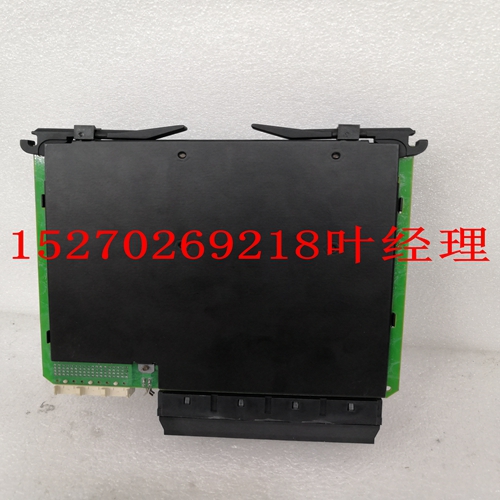

IS200ERIOH1AAA工控模块卡件
I/O单元IC200DBI001 IC200EBI001产品名称远程I/O DeviceNet网络接口单元（从设备）远程I/O以太网网络接口单元协议支持的DeviceNet从设备EGD和Modbus TCP服务器距离500Kbps 100米总线长度和分支总计<39米100米最大分出长度10/100Mbaud 250Kbps 250米总线长度，分支总计<78米125Kbps 500米总线长度总计<156m I/O离散点包括离散点和模拟点。1024字节（离散和模拟）。最多128字节的输入+2字节的状态字%I:2048点最多128字节输出+2字节的控制字。%Q： 2048点I/O模拟字包括离散和模拟。1024字节（离散和模拟）。最多128字节输入+2字节状态字%AI:128通道最多128字节输出+2字节控制字。%AQ:128通道I/O数据最多128字节输入+2字节状态字256字节输入、输出、模拟输入和模拟输出最多128字节输出+2字节控制字。网络拓扑线性总线（干线/支线）；电力和信号网络依赖于同一网络电缆传输介质屏蔽双双绞线电缆，两端端接以太网双绞线连接器5针开放式可插拔连接器RJ-45用户诊断数据2字节状态/控制4每个NIU/站8个模块数量每个NIU//站冗余5V背板电流消耗（mA）160 175 3.3V背板电流消耗量（mA）10 425尺寸（宽x高x深）133.4mm（5.25in）x 85.9mm（3.38in）包括电源高度t包括电源高度Artisan Technology Group-Quality Instrumentation。。。保证VersaMax 166 GE Fanuc控制器和I/O解决方案远程I/O单元通过各种网络将VersaMax I/O模块连接到主机PLC或计算机，这使得在Genius、Profibus DP、DeviceNet或以太网安装中包含VersaMax输入/输出变得容易。远程I/O单元及其模块一起构成一个能够提供多达256点I/O的I/O站。远程I/O单元IC200GBI001 IC200PBI001产品名称Genius网络接口单元远程I/O Profibus DP网络接口单元（从）协议支持Genius Profibus DP距离1372至2286米-38.4 Kbaud支持9.6Kbits-1200米的16个设备。1067至1372米19.2Kbits-1200米76.8 Kbaud支持32个设备。93.75Kbits-1200米609至1067米-153。6 Kbaud扩展支持187.5Kbits-600米a的32个设备。小于609米500Kbits-400米153.6 Kbaud标准或153.6 Kbud扩展1.5Mbits-200米支持（外部选项）屏蔽双绞线连接器可拆卸连接器9针D-sub连接器用户诊断数据是2字节状态/控制，5字节标准Profibus诊断每个NIU/站8个模块每个NIU//站冗余全媒体和硬件冗余支持5V背板电流消耗（mA）250 250 3.3V背板电流消耗量（mA）10 10尺寸（宽x高x深）133.4mm（5.25in）x 85.9mm（3.38in）133.4m（5.25in.）x 85.9m（3.38in.）t，包括电源高度t电源Artisan技术集团-质量仪表。。。保证VersaMax GE Fanuc控制器和I/O解决方案167 IC200BEM002 IC200BEM103 IC200BEM10 4 IC200CHS006产品名称PLC网络通信PLC网络通信VersaMax I/O，本地Profibus DP（从）。DeviceNet（主）。AS-i（主）。通信运营商需要IC200CHS006需要IC200chs 006需要IC200 CHS006（支持IC200BEMxxx通信运营商）。
I/O Units IC200DBI001 IC200EBI001 Product Name Remote I/O DeviceNet Network Interface Unit (Slave) Remote I/O Ethernet Network Interface Unit Protocol Supported DeviceNet Slave EGD and Modbus TCP Server Distance 500Kbps 100m bus length and branches totaling < 39m 100 Meters max drop length 10/100Mbaud 250Kbps 250m bus length and branches totaling < 78m 125Kbps 500m bus length and branches totaling < 156m I/O Discrete Points Includes both discrete and analog. 1024 bytes both discrete and analog. Up to 128 bytes of inputs + 2-byte status word %I: 2048 points Up to 128 bytes of outputs + 2-byte control word. %Q: 2048 points I/O Analog Words Includes both discrete and analog. 1024 bytes both discrete and analog. Up to 128 bytes of inputs + 2-byte status word %AI: 128 channels Up to 128 bytes of outputs + 2-byte control word. %AQ: 128 channels I/O Data Up to 128 bytes of inputs + 2-byte status word 256 Bytes of input, output, Analog input and Analog output Up to 128 bytes of outputs + 2-byte control word. Network Topology Linear bus (trunkline/dropline); power and signal Network dependent on the same network cable Transmission Media Shielded, dual twisted pair cable, terminated at both ends Ethernet twisted pair Connector 5-pin open pluggable connector RJ-45 User Diagstic Data 2 bytes of status/control 4 Number of Modules 8 per NIU/station 8 per NIU/station Redundancy 5V Backplane Current Consumption (mA) 160 175 3.3V Backplane Current Consumption (mA) 10 425 Dimensions (W x H x D) 133.4mm (5.25in) x 85.9mm (3.38in) 133.4mm (5.25in) x 85.9mm (3.38in) t including the height of power supply t including the height of power supply Artisan Techlogy Group - Quality Instrumentation ... Guaranteed VersaMax 166 GE Fanuc Controller and I/O Solutions A Remote I/O Unit connects VersaMax I/O modules to a host PLC or computer via a variety of networks, which makes it easy to include VersaMax I/O in Genius, Profibus-DP, DeviceNet, or Ethernet installations. Together, the Remote I/O Unit and its modules form an I/O station capable of providing up to 256 points of I/O. Remote I/O Units IC200GBI001 IC200PBI001 Product Name Genius Network Interface Unit Remote I/O Profibus-DP Network Interface Unit (Slave) Protocol Supported Genius Profibus DP Distance 1372 to 2286 meters - 38.4 Kbaud supports a 9.6Kbits - 1,200 meters of 16 devices. 1067 to 1372 meters 19.2Kbits - 1,200 meters 76.8 Kbaud supports a of 32 devices. 93.75Kbits - 1,200 meters 609 to 1067 meters - 153. 6 Kbaud extended supports 187.5Kbits - 600 meters a of 32 devices. Less than 609 meters 500Kbits - 400 meters 153.6 Kbaud standard or 153.6 Kbaud extended 1.5Mbits - 200 meters supports (external option) Shielded, twisted pair cable Connector Removable Connector 9-pin D-sub connector User Diagstic Data Yes 2 bytes of status/control, 5 bytes of standard Profibus diagstics Number of Modules 8 per NIU/station 8 per NIU/station Redundancy Full media and hardware redundancy supported 5V Backplane Current Consumption (mA) 250 250 3.3V Backplane Current Consumption (mA) 10 10 Dimensions (W x H x D) 133.4mm (5.25in) x 85.9mm (3.38in) 133.4mm (5.25in) x 85.9mm (3.38in) t including the height of power supply t including the height of power supply Artisan Techlogy Group - Quality Instrumentation ... Guaranteed VersaMax GE Fanuc Controller and I/O Solutions 167 IC200BEM002 IC200BEM103 IC200BEM104 IC200CHS006 Product Name PLC Network Communications PLC Network Communications PLC Network Communications VersaMax I/O , Local Profibus-DP (Slave). DeviceNet (Master). AS-i (Master). Communications Carrier Requires IC200CHS006 Requires IC200CHS006 Requires IC200CHS006 (Supports IC200BEMxxx Communications Carrier.
