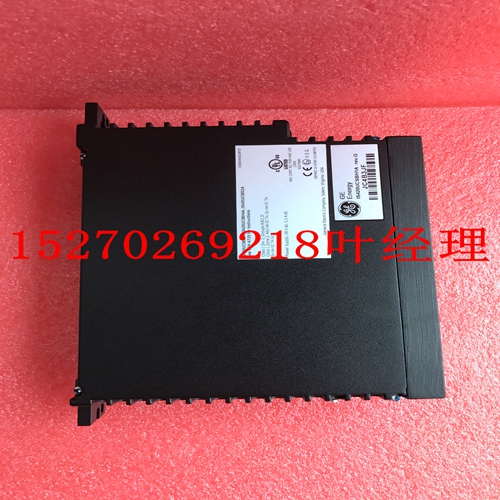

IS200GDDDG1A模拟量电子配套模块
规格额定电压：120/240 VAC，125 VDC输入电压范围：85至264 VAC 47至63 Hz，100-150 VDC输入功率100 W电源：125瓦（典型值），150瓦（最大值）输入功率350 W电源：437瓦（典型），500瓦（最大值）输入要求100W电源浪涌电流（冷启动–115 VAC）15安培最大浪涌电流（热启动–230 VAC）30安培最大浪涌持续时间100毫秒输入要求350W电源浪涌电压（冷启动-115 VAC）30安最大浪涌电流系数0.99 min（仅在90 VAC和260 VAC之间有效）输出要求（100 W电源）输出功率：最大100瓦（所有三个输出的总和）输出电压：+5 VDC：4.875至5.25伏，0-20安培+12 VDC：11.64至12.6伏，0-2安培-12 VDC：-12.60至-11.64伏，0-1安培过电压限值：+5 VDC输出：5.7至6.7伏特过电流限值：+5VDC输出：21 A（典型值）+12 VDC输出：2.5 A（典型）-12 VDC输出：3.5 A（典型的）输出要求（350 W电源）输出功率：最大350瓦（所有3个输出的总功率）输出电压：+5 VDC：4.875至5.25伏特，0至60安培+12 VDC：11.64至12.6伏特，0至12安培–12 VDC：–12.6至–11.64伏特，0至4安培过电压限制：+5 VDC输出：5.7至6.7伏特+5 VDC输出；66A（典型）+12 VDC输出：15A（典型）过电流限制：–12 VDC输出：4.6A（典型；1500 VAC，持续1分钟保护极限：穿越（允许交流输入损失而不影响直流输出的时间）15毫秒最小保持时间（从ACFAIL#系统故障信号激活到任何直流输出超出规格的时间）5毫秒最小工作温度：100W电源350W电源0°C至60°C（32°F至140°F）满容量所需的托盘附件。请参阅“订购信息”。*有关环境规范和标准（例如FCC或欧盟指令）的符合性，请参阅PACSystems RX7I安装手册GFK-2223的附录A。RX7i电源7 GFK-2237F订购信息描述目录号RX7i供电：85至264 VAC，47至63 Hz，125 VDC输入，100瓦输出IC698PSA100 RX7i电力供应：85至264VAC，47到63 Hz，125VDC输入，用于17插槽机架的350瓦输出IC698PSA350 120 VAC输入机架风扇组件IC697ACC721用于17插槽支架的240 VAC输入机架扇组件IC697ACC 724用于17槽机架的24 VDC输入机架扇总成IC697ACC744用于9插槽机架的120 VAC输入架扇总成在危险场所的安装对于I类Div 2危险场所，需要出现以下声明。1.标有I类A、B、C和D组2区危险位置的设备仅适用于I类2区A、B，C、D组或非危险位置。2.警告-爆炸危险-更换部件可能会影响I类2类的适用性。3.警告–爆炸危险–除非是逆变器，否则不要断开设备，为了确保用户的安全，请详细阅读本操作手册。如果您有任何进一步的疑问，请随时联系您当地的经销商或GE的客户服务。注意事项逆变器是一种电力电子设备，出于安全原因，请特别注意带有“警告”或“小心”符号的段落。这些是在运输、安装、操作或检查逆变器时应注意的重要安全预防措施。请遵守这些预防措施以确保您的安全。警告操作不当可能导致人员受伤。小心操作不当可能会损坏逆变器或机械系统。警告：在充电指示灯熄灭之前，不要在关闭电源后立即触摸PCB或PCB上的组件。不要在电源打开时尝试布线电路。不要在逆变器运行时尝试检查PCB上的部件和信号。不要试图拆卸或修改逆变器的内部电路、接线或部件。逆变器的接地端子必须按照200V III类标准正确接地。根据EN 61800-3，该产品属于限制销售分销类别。在家庭环境中，本产品可能会造成无线电干扰，在这种情况下，用户可能需要采取适当的措施。小心不要尝试对逆变器的内部部件进行介电强度测试。逆变器中存在易受高压影响的敏感半导体器件。不要将输出端子：T1（U）、T2（V）和T3（W）连接到交流电源插座。
Specifications Nominal Rated Voltage: 120/240 VAC, 125 VDC Input Voltage Range: 85 to 264 VAC 47 to 63 Hz, 100-150VDC Input Power 100 W Supply: 125 watts (typical), 150 watts (maximum) Input Power 350 W Supply: 437 watts (typical), 500 watts (maximum) Input Requirements 100W Supply Inrush current (cold start – 115 VAC) 15 amps maximum Inrush current (cold start – 230 VAC) 30 amps maximum Inrush current duration 100 milliseconds Input Requirements 350W Supply Inrush current (cold start – 115 VAC) 30 amps maximum Inrush current (cold start – 230 VAC) 60 amps maximum Inrush current duration 100 milliseconds Power Factor 0.99 min (only valid between 90 VAC and 260 VAC) Output Requirements (100 W Supply) Output Power: 100 watts maximum (total for all three outputs) Output Voltage: +5 VDC: 4.875 to 5.25 volts, 0—20 amps +12 VDC: 11.64 to 12.6 volts,, 0—2 amps –12 VDC: –12.60 to –11.64 volts, 0—1 amps Overvoltage Limit: +5 VDC Output: 5.7 to 6.7 volts Overcurrent Limit: +5 VDC output: 21 A (typical) +12 VDC output: 2.5 A (typical) –12 VDC output: 3.5 A (typical) Output Requirements (350 W Supply) Output Power: 350 watts maximum (total for all 3 outputs) Output Voltage: +5 VDC: 4.875 to 5.25 volts, 0 to 60 amps +12 VDC: 11.64 to 12.6 volts, 0 to 12 amps –12 VDC: –12.6 to –11.64 volts, 0 to 4 amps Overvoltage Limit: +5 VDC Output: 5.7 to 6.7 volts +5 VDC output: 66A (typical) +12 VDC output: 15A (typical) Overcurrent Limit: –12 VDC output: 4.6A (typical) Isolation, input to all outputs 250 VAC continuous; 1500 VAC for 1 minute Protective Limits: Ride-through (time allowed for loss of AC input without affecting DC outputs) 15 milliseconds minimum Holdup Time (time from ACFAIL# system failure signal is activated to when any DC output drops out of specification) 5 milliseconds minimum Operating Temperature: 100W Supply 350W Supply 0°C to 60°C (32° to 140°F) 0°C to 60°C (32°F to 140°F) Fan tray attachment required for full capacity. See “Ordering Information.” * For environmental specifications and compliance to standards (for example, FCC or European Union Directives), refer to Appendix A of the PACSystems RX7I Installation Manual, GFK-2223. RX7i Power Supplies 7 GFK-2237F Ordering Information Description Catalog Number RX7i Power Supply: 85 to 264 VAC at 47 to 63 Hz, 125 VDC Input, 100 watt output IC698PSA100 RX7i Power Supply: 85 to 264 VAC at 47 to 63 Hz, 125 VDC Input, 350 watt output IC698PSA350 120 VAC Input Rack Fan Assembly for 17-Slot Rack IC697ACC721 240 VAC Input Rack Fan Assembly for 17-Slot Rack IC697ACC724 24 VDC Input Rack Fan Assembly for 17-Slot Rack IC697ACC744 120 VAC Input Rack Fan Assembly for 9-Slot Rack IC697ACC621 240 VAC Input Rack Fan Assembly for 9-Slot Rack IC697ACC624 24 VDC Input Rack Fan Assembly for 9-Slot Rack IC697ACC644 Installation in Hazardous Locations The following statements are required to appear for Class I Div 2 Hazardous Locations. 1. EQUIPMENT LABELED WITH REFERENCE TO CLASS I, GROUPS A, B, C, and D, DIV. 2 HAZARDOUS LOCATIONS IS SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C, D OR NON–HAZARDOUS LOCATIONS ONLY. 2. WARNING – EXPLOSION HAZARD – SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2. 3. WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS of the inverter, and to ensure the safety of users, please read through this operating manual in detail. Should you have any further query, please feel free to contact your local distributor or customer service of GE. Precaution The inverter is a power electronic device, for safety reason, please take special care for paragraphs with “WARNING” or “CAUTION” symbol. They are important safety precautions to be aware of while transporting, installation, operating or examining the inverter. Please following these precaution to ensure your safety. WARNING Personnel injury may be resulted by improper operation. CAUTION The inverter or mechanical system may be damaged by improper operation. WARNING Do not touch the PCB or components on the PCB right after turning off the power before the charging indicator went off. Do not attempt to wire circuitry while power is on. Do not attempt to examine the components and signals on the PCB while the inverter operating. Do not attempt to disassemble or modify internal circuitry, wiring, or components of the inverter. The grounding terminal of the inverter must be grounded properly with 200V class type III standard. This is a product of the restricted sales distribution class according to EN 61800-3. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CAUTION Do not attempt to proceed dielectric strength test to internal components of the inverter. There are sensitive semiconductor-devices vulnerable to high voltage in the inverter. Do not connect the output terminals: T1(U), T2(V), and T3(W) to AC power outlet.
