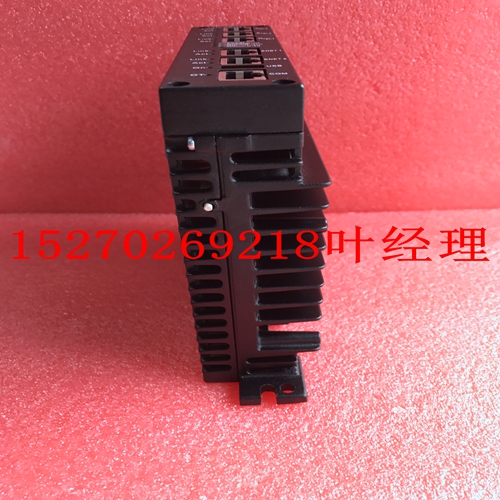

IS200GDDDG1ABA模拟量输入
向RX7i背板上的模块发送125VDC排序信号。电源模块直接插入RX7i主机架的插槽0。电源输出可以通过多达一个交流输入线周期的损耗而不损失输出功率。为过电流、过热和过电压故障条件提供保护。IC698PSA100：在0至60ºC的环境温度下提供敢达100 W的总输出功率，无需强制空气冷却。输出电压：+5 VDC输出最高20安培+12 VDC输出最高2安培–12 VDC输出最高1安培IC698PSA350：提供最高350 W的总输出功率；需要由安装在机架底部的风扇托盘提供的强制空气冷却。输出电压：+5 VDC输出，最高60安培+12 VDC输出，最多12安培-12 VDC输出，高达4安培功能操作范围为85至264 VAC，100至150 VDC滑入式机架安装结构电子短路过电流保护过电流和过电压故障保护交流操作功率因数校正*表示GE Intelligent Platforms的商标，股份有限公司和/或其附属公司。所有其他商标均为其各自所有者的财产。2 RX7i电源GFK-2237F发布信息功能兼容性E版可与所有先前版本互换。发布历史版本日期注释PSA100E/PSA350E 2010年8月标签更改。功能、性能或兼容性无变化。PSA100D/PSA350D 2006年8月电源符合爆炸性环境指令、欧洲危险场所安全、设备组II、3类（ATEX）机构标准。纠正了电源关闭导致CPU内存损坏故障的一个不常观察到的问题。PSA100C/PSA350C 2005年6月超温检测。详见GFK-2237C。PSA100B/PSA350B 2004年5月详情见GFK-2237B。PSA100A/PSA350A 2003年5月首次发布。电源操作开/关开关位于前面板上的两位开/关（On/Off）开关是一个逻辑电平开关，仅启用或禁用输出通道。该开关不会中断交流线路输入。警告：只要有输入电源，模块内就会出现致命电压。VMEbus电源监视器接口定时ACFAIL#当不再提供电源输入或当ON/OFF开关关闭时，ACFAIL号信号被下拉。在输出低于其指定限值之前至少5ms，ACFAIL#信号被断言，以向系统提供足够的电源故障警告。SYSRESET#RX7i电源不驱动VME背板上的SYSRESET号信号。RX7i CPU模块控制SYSRESET#信号。指示灯电源前面板上提供了以下LED指示灯。LED名称颜色功能FIELD OK绿色当交流电源在其规格范围内时亮起。OUTPUT OK（输出正常）绿色当所有三个直流输出通道均在其规格范围内运行时开启。如果三个直流输出通道中的任何一个出现故障，则关闭。OVER TEMP IC698PSA350仅在超过临界供气温度或气流传感器检测到气流停止时亮起。RX7i电源3 GFK-2237F过电压保护任何超过额定输出电压15%或以上的输出通道都会导致所有输出闭锁。必须回收开/关控制开关或交流输入电源以重置热和中性交流输入上都有可更换的保险丝。IC698PSA100使用4安培/250伏保险丝。IC698PSA350使用8安培/250伏保险丝。请注意，“A”型电源使用了0.25“x 1.25”保险丝。“B”和更高版本使用5 x 20mm保险丝。过电流/短路保护所有输出都受到过电流和短路保护，故障消除后自动恢复。每个
125VDC sequencing signals to modules on the RX7i backplane. The Power Supply Module plugs directly into slot 0 in the RX7i main rack. The power supply output can ride through the loss of up to one AC input line cycle without loss of output power. Protection is provided for overcurrent, overtemperature, and overvoltage fault conditions. IC698PSA100: Provides up to 100 W total output power at ambient temperatures of 0 to 60ºC without forced air cooling. Output voltages: +5 VDC output up to 20 amps +12 VDC output up to 2 amps –12 VDC output up to 1 amp IC698PSA350: Provides up to 350 W total output power; requires forced air cooling, provided by a fan tray mounted on the bottom of the rack. Output voltages: +5 VDC output up to 60 amps +12 VDC output up to 12 amps –12 VDC output up to 4 amps Features Operation from 85 to 264 VAC, 100 to 150 VDC Slide-in rack mount construction Electronic short circuit overcurrent protection Overcurrent and overvoltage fault protection Power factor correction for AC operation * indicates a trademark of GE Intelligent Platforms, Inc. and/or its affiliates. All other trademarks are the property of their respective owners. 2 RX7i Power Supplies GFK-2237F Release Information Functional Compatibility The E version is interchangeable with all previous versions. Release History Version Date Comments PSA100E/PSA350E Aug 2010 Label change only. No change in functionality, performance or compatibility. PSA100D/PSA350D Aug 2006 Power supplies qualified to the Explosive Atmospheres Directive, European Safety for Hazardous Locations, Equipment Group II, Category 3 (ATEX) agency standard. Corrected an infrequently observed issue with power supply shutdown causing corrupted memory faults in CPU. PSA100C/PSA350C Jun 2005 Overtemperature detection. See GFK-2237C for details. PSA100B/PSA350B May 2004 See GFK-2237B for details. PSA100A/PSA350A May 2003 Initial release. Power Supply Operation On/Off Switch The two position On/Off switch, located on the front faceplate, is a logic level switch that enables or disables the output channels only. This switch does not interrupt the AC line input. Warning Lethal voltages are present inside the module whenever input power is present. VMEbus Power Monitor Interface Timing ACFAIL# The ACFAIL# signal is pulled down when the power supply inputs are no longer being provided or when the ON/OFF switch is OFF. The ACFAIL# signal is asserted at least 5ms before outputs fall below their specified limits to provide sufficient warning to the system of power failure. SYSRESET# The RX7i power supplies do not drive the SYSRESET# signal on the VME backplane. The RX7i CPU module controls the SYSRESET# signal. Indicators The following LED indicators are provided on the power supply front panel. LED Name Color Function FIELD OK green Turns ON when AC power is applied within its specification range. OUTPUT OK green Turns ON when all three DC outputs channels are operating within their specifications. Turns OFF if any of the three DC output channels has failed. OVER TEMP IC698PSA350 only red Turns ON if the critical supply temperature is exceeded or if the airflow sensor detects cessation of air flow. RX7i Power Supplies 3 GFK-2237F Overvoltage Protection Any output channel that exceeds the nominal output voltage by 15% or more will cause all outputs to latch off. The ON/OFF control switch or the AC input power must be recycled to reset Replaceable fuses are present on both the hot and neutral AC inputs. IC698PSA100 uses 4 Amp/250 Volt fuses. IC698PSA350 uses 8 Amp/250 Volt fuses. Note that the “A” version of the power supplies used 0.25” x 1.25” fuses. The “B” and later versions use 5 x 20mm fuses. Overcurrent/Short Circuit Protection All outputs are protected against overcurrent and short circuit with automatic recovery upon removal of fault. An electronic current limit is provided on each of the
