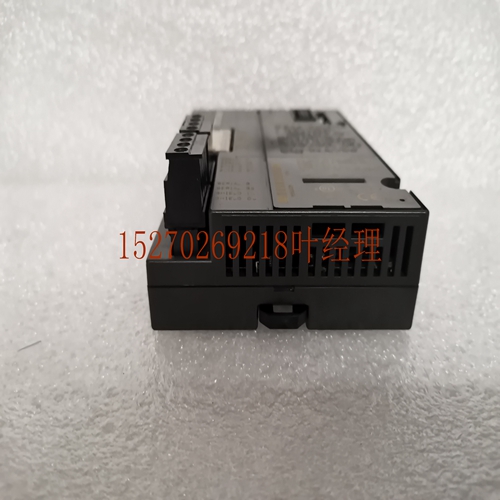

IS200JPDPG1A工控自动化卡件
连接器类型载体和插入端子之间的连接器类型载体连接的现场接线连接器预接线电缆由电缆制成。以下电缆可用：IC200CBL105 2连接器，0.5m，无屏蔽IC200CBL210 2连接器，1.0m，无屏蔽IC 200CBL120 2连接器，2.0m，无屏蔽ICM200CBL230 1连接器，3.0m，无屏蔽GFK-1504N第2章安装2-25 2安装和带有盒式端子和内置热敏电阻（IC200TBM014）的A型也可用于热电偶模块，如第14章所述。接线端子上有一个透明的保护铰链门。每个模块附带的印刷电路卡可以折叠并插入此门。现场接线端子电缆连接器透明保护罩插入端子这些插入端子单元可以安装在与连接器类型载体相同的DIN导轨上，或安装在单独的DIN导轨。对于需要最大程度抵抗机械振动和冲击的应用，插入端子也必须安装在面板上。使用额定温度为90摄氏度的铜线。在同一位置插入两根电线时，电线的尺寸和类型必须相同（实心或绞合）。导线规格取决于端子类型。IC200TBM012、IC200TBM014和IC200TBM915的接线规范对于箱式或弹簧型端子，每个端子可容纳一根实心或绞合AWG#14（平均横截面2.1mm2）至AWG#22（平均横截面积0.36mm2）导线，或两条AWG#18（平均横面积0.86mm2）导线。IC200TBM011的布线规范对于屏障型端子，每个端子容纳一根或两根从AWG#22（平均0.36mm2横截面）到AWG#14（平均2.1mm2横截面积）的实心或绞合线。GFK-1504N第2章安装2-29 2安装断开式插入端子：IC200CHS101和102以及保险丝式插入端子IC200CHS121和122断开式插接线端子（IC200CHS01和IC200CHS102）或保险丝式插入接线端子（IC 200CHS121与IC200CHS122）将VersaMax连接器式载体连接到现场接线，并提供集成连接到VersaMax模块的现场设备的断开或熔断选项。主底座IC200CHS101或IC200CHS121提供与VersaMax模块上的“A”端子相对应的端子。如果模块也有“B”端子，则还需要扩展底座（IC200CHS102或CHS122）。这些插入底座的现场接线遵循每个模块的标准接线图。插入端子底座上的端子A1-A18和B1-B18以与所有其他底座相同的方式连接。内置辅助端子（W1-W8、X1-X8、Y1-Y8、Z1-Z8）位于IC200CHS121的正下方。每组辅助端子都有一个专用端子，用于将该组跳线连接到适当的VersaMax端子（“W”端子是W1-W8等的连接点）。这些跳线的安装取决于模块上的分组，如下页所示。2-30 VersaMax模块、电源和托架用户手册GFK-1504N 2断开式和保险丝式插入底座，端子接线每个端子可容纳：一个实心（横截面0.2至4.0mm2）或绞合（横截面0.2-2.5mm2），AWG#12至AWG#24。在同一位置插入两根电线时，电线必须具有相同的尺寸和类型（实心或绞合）：刚性或柔性电线：横截面为0.2至1.5mm2。带金属箍、无塑料套管的绞合线：横截面0.25至0.75mm2带双金属箍、带塑料套管的绞线：上层（A/B端子）：横截面0.5至1.5mm2下层（W/X/Y/Z端子）：截面0.5 mm2端子螺钉的建议扭矩为0.5至0.6 Nm。
Field Wiring Connector Prewired Cables for a Connector-Style Carrier Connection between a Connector-Style Carrier and Interposing Terminals is made by cable. The following cables are available: IC200CBL105 2 connectors, 0.5m, no shield IC200CBL110 2 connectors, 1.0m, no shield IC200CBL120 2 connectors, 2.0m, no shield IC200CBL230 1 connector, 3.0m, no shield GFK-1504N Chapter 2 Installation 2-25 2 Installing and A version with box-style terminals and a built-in thermistor (IC200TBM014) is also available for use with Thermocouple modules, as described in chapter 14. A clear protective hinged door covers the wiring terminals. The printed wiring card provided with each module can be folded and inserted in this door. Field Wiring Terminals Cable Connector Clear Protective Cover Interposing Terminals These Interposing Terminals unit can be mounted on the same DIN rail as the Connector-Style Carrier, or on a separate DIN rail. For applications requiring maximum resistance to mechanical vibration and shock, the Interposing Terminals must also be panel-mounted. Use copper wire rated for 90 deg C. When inserting two wires in the same position, the wires must be the same size and type (solid or stranded). Wire specifications depend on the terminal type. Wiring Specifications for IC200TBM012, IC200TBM014, and IC200TBM015 For box-type or spring type terminals, each terminal accommodates one solid or stranded AWG #14 (avg. 2.1mm2 cross section) to AWG #22 (avg. 0.36mm2 cross section) wire, or two wires up to AWG #18 (avg. 0.86mm2 cross section). Wiring Specifications for IC200TBM011 For barrier-type terminals, each terminal accommodates one or two solid or stranded wires from AWG #22 (avg. 0.36mm2 cross section) to AWG #14 (avg. 2.1mm2 cross section). GFK-1504N Chapter 2 Installation 2-29 2 Installing Disconnect-Style Interposing Terminals: IC200CHS101 and 102 and Fuse-Style Interposing Terminals: IC200CHS121 and 122 Disconnect-Style Interposing Terminals (IC200CHS101 and IC200CHS102) or Fuse-Style Interposing Terminals (IC200CHS121 and IC200CHS122) interface a VersaMax Connector-Style Carrier to field wiring and provide an integrated disconnect or fusing option for field devices connected to VersaMax modules. The Main Base, IC200CHS101 or IC200CHS121, provides terminals that correspond to the "A" terminals on a VersaMax module. If the module also has "B" terminals, an Expansion Base, IC200CHS102 or CHS122) is also needed. Field wiring to these interposing bases follows the standard wiring diagram for each module. Terminals A1-A18 and B1-B18 on the interposing terminal bases are connected in the same fashion as all other bases. The built-in auxiliary terminals (W1-W8, X1-X8, Y1-Y8, Z1-Z8) are positioned directly below the IC200CHS121 Each group of auxiliary terminals has a dedicated terminal to jumper the group to the appropriate VersaMax terminal (“W” terminal is connection point for W1-W8 and so forth.). The installation of these jumpers depends on the grouping present on the module, as illustrated on the following pages. 2-30 VersaMax Modules, Power Supplies and CarriersUser Manual GFK-1504N 2 Disconnect-Style and Fuse-Style Interposing Bases, Terminal Wiring Each terminal accommodates: One solid (0.2 to 4.0mm2 cross section) or stranded (0.2 to 2.5mm2 cross section), AWG #12 to AWG #24. When inserting two wires in the same position, the wires must be the same size and type (solid or stranded): Rigid or flexible wires: 0.2 to 1.5mm2 cross section. Stranded wires with ferrules, no plastic sleeve: 0.25 to 0.75mm2 cross section Stranded wires with twin ferrule, with plastic sleeve: Upper level (A/B terminals): 0.5 to 1.5mm2 cross section Lower level (W/X/Y/Z terminals): 0.5 mm2 cross section Recommended torque for the terminal screws is 0.5 to 0.6 Nm.
