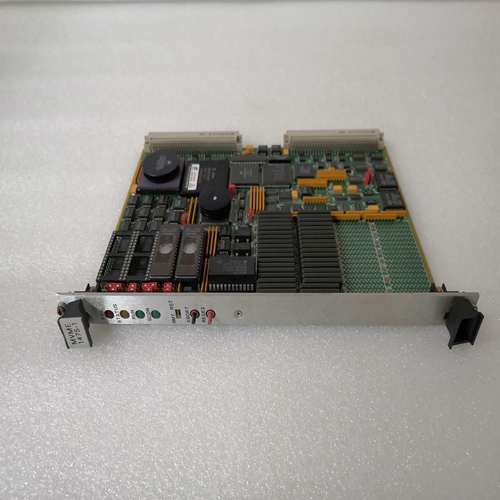

MVME167-036B机械备件
IEC 60068-2-14（试验N无包装非工作热冲击）-40…85°C（-40…185°F）环境空气温度，最高70°C（158°F）相对湿度IEC 60068-2-30（测试D未包装湿热）5…95%非冷凝振动IEC 60068-2-6（测试F运行）2 g@10…500 Hz Shoc运行IEC 60068-2-27接触放电8 kV空气放电辐射射频抗扰度IEC 61000-4-3 10Vm，1 kHz正弦波80%AM，来自80…2000 MHz 10Vm，200 Hz 50%脉冲100%AM@900 MHz 10Vm和200 Hz 50%脉动100%AM@1890 MHz 3Vm，1 Hz正弦波80%AM来自2000…2700 MHz表22-认证-1756 GuardLogix XT控制器认证标记时。有关符合性声明、证书和其他认证详细信息，请参见产品认证链接：www.ab.com。1756-L73SX 1756-L7SPXT c-UL-us UL认证工业控制设备，适用于美国和加拿大。参见UL文件E65584。UL列出了经美国和加拿大认证的2类D组危险场所。参见UL文件E194810.CE欧盟2004108EC EMC指令，符合：EN 61000-6-4；工业排放EN 61326-1；测量控制实验室。，工业要求EN 61000-6-2；工业抗扰度EN 61131-2；可编程控制器（第8条，A区和B区）欧盟200642EC M符合：EN 60204-1；机器电气设备EN ISO 13849-1；控制系统的安全相关部件EN 62061；安全相关控制系统的功能安全C-Tick澳大利亚无线电通信Ac符合：AS/NZS CISPR 11；工业排放Ex EU 949EC ATEX指令，符合：EN 60079-15；潜在爆炸性环境保护“n”EN 60079-0；一般要求II 3 G Ex nA IIC T4 X KC韩国广播和通信设备注册符合：无线电波Ac第3条TÜV第58-2条的功能安全认证当与指定的固件版本一起使用时。根据IEC 61508，能够达到SIL CL 3，根据EN954-1，能够达到4级，并且当按照GuardLogix控制器系统安全参考手册1756-RM093中的描述使用时，能够达到ISO 13849-1的PL（e）。罗克韦尔自动化出版物1756-TD001G-EN-P-2013年1月21日1756 ControlLogix控制器控制器内存使用以下公式提供了粗略的内存估计。对于冗余控制器系统，将计算的内存估计值加倍。例如，如果您估计需要2 MB内存，请选择具有4 MB内存的控制器。保留20…30%的控制器内存以适应增长。控制器兼容性下表提供了与IO模块显示设备以及其他控制器和通信设备的兼容性。控制分布式IO模块控制器可以通过编程软件中的IO配置树控制这些分布式IO模块。控制器任务x 4000=字节（最少1个任务）数字IO点x 400=字节模拟IO点x 2600=字节DeviceNet模块第一个DeviceNet模块为7400字节。额外的DeviceNet模块各为5800字节。x 7400=字节其他通信模块计数系统中的所有通信模块，而不仅仅是本地机箱中的通信模块。这包括设备连接模块适配器模块和PanelView终端上的端口。x 2000=字节运动轴x 8000=字节FactoryTalk“报警指令x 1000
IEC 60068-2-14 (Test N Unpackaged Nonoperating Thermal Shock) -40…85 °C (-40…185 °F) Temperature, surrounding air, max 70 °C (158 °F) Relative humidity IEC 60068-2-30 (Test D Unpackaged Damp Heat) 5…95% noncondensing Vibration IEC 60068-2-6 (Test F Operating) 2 g @ 10…500 Hz Shoc operating IEC 60068-2-27 (Test E Unpackaged Shock) 30 g Shoc nonoperating IEC 60068-2-27 (Test E Unpackaged Shock) 50 g (45 g with SD card installed) Emissions CISPR 11 IEC 61000-6-4 Class A ESD immunity IEC 61000-4-2 6 kV contact discharges 8 kV air discharges Radiated RF immunity IEC 61000-4-3 10Vm with 1 kHz sine-wave 80% AM from 80…2000 MHz 10Vm with 200 Hz 50% Pulse 100% AM @ 900 MHz 10Vm with 200 Hz 50% Pulse 100% AM @ 1890 MHz 3Vm with 1 kHz sine-wave 80% AM from 2000…2700 MHz Table 22 - Certifications - 1756 GuardLogix-XT Controllers Certification When marked. See the Product Certification link at http:www.ab.com for Declarations of Conformity, Certificate and other certification details. 1756-L73SX 1756-L7SPXT c-UL-us UL Listed Industrial Control Equipmen certified for US and Canada. See UL File E65584. UL Listed for Class Division 2 Group D Hazardous Location certified for U.S. and Canada. See UL File E194810. CE European Union 2004108EC EMC Directive, compliant with: EN 61000-6-4; Industrial Emissions EN 61326-1; Meas.ControlLab., Industrial Requirements EN 61000-6-2; Industrial Immunity EN 61131-2; Programmable Controllers (Clause 8, Zone A & B) European Union 200642EC M compliant with: EN 60204-1; Electrical equipment of machines EN ISO 13849-1; Safety-related parts of control systems EN 62061; Functional safety of safety-related control systems C-Tick Australian Radio communications Ac compliant with: ASNZS CISPR 11; Industrial Emissions Ex European Union 949EC ATEX Directive, compliant with: EN 60079-15; Potentially Explosive Atmosphere Protection ’n’ EN 60079-0; General Requirements II 3 G Ex nA IIC T4 X KC Korean Registration of Broadcasting and Communications Equipmen compliant with: Article 58-2 of Radio Waves Ac Clause 3 TÜV certified for functional safety When used with specified firmware revision. Capable of SIL CL 3 according to IEC 61508, capable of Category 4 according to EN954-1, and capable of PL(e) according to ISO 13849-1 when used as described in the GuardLogix Controller Systems Safety Reference Manua publication 1756-RM093. Rockwell Automation Publication 1756-TD001G-EN-P - January 2013 21 1756 ControlLogix Controllers Controller Memory Use The following equations provide a rough memory estimate. For redundant controller system double the memory estimate you calculate. For example, if you estimate you need 2 MB of memory, select a controller with 4 MB of memory. Reserve 20…30% of the controller memory to accommodate growth. Controller Compatibility The following tables provide compatibility with IO module display device and other controllers and communication devices. Control Distributed IO Modules The controller can control these distributed IO modules via the IO Configuration tree in the programming software. Controller tasks x 4000 = bytes (minimum 1 task) Digital IO points x 400 = bytes Analog IO points x 2600 = bytes DeviceNet modules The first DeviceNet module is 7400 bytes. Additional DeviceNet modules are 5800 bytes each. x 7400 = bytes Other communication modules Count all the communication modules in the syste not just those in the local chassis. This includes device connection module adapter module and ports on PanelViewÔ terminals. x 2000 = bytes Motion axis x 8000 = bytes FactoryTalkÒ alarm instruction x 1000
