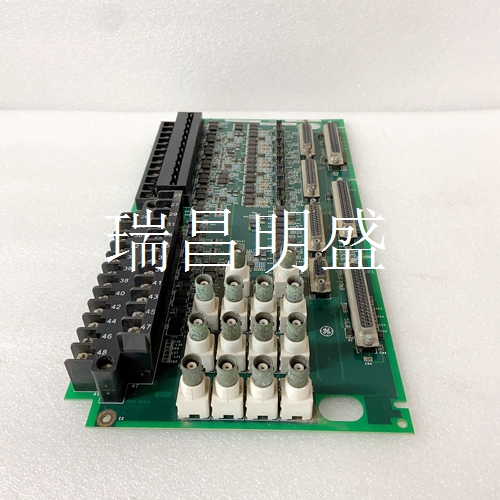

IS200TVIBH2BBB工控DCS系统备件
2.7（0.5）9.5（0.38）1370-LG280（1）额定电机电枢电流直接取自电机铭牌或电机数据。表中列出的电流（第1列）是电枢导体尺寸（第3列）和直流接触器额定值（第2列）允许的最大电流。（2） 按照NEC 430-22（1987）的规定，电枢导体的尺寸通过将额定电机电枢电流乘以1.25来确定。直流接线片额定值根据NEC表310-16（1987）确定，铜导体的绝缘温度额定值为75°C（167°F），环境温度为30°C（86°F）。如果条件不同于NEC表310-16所示，则参考适用规范。（3） 动态制动（DB）导体的尺寸如注2所示， 2.7 (0.5) 9.5 (0.38) 1370-LG280 (1) The Rated Motor Armature Current is taken directly from the motor nameplate or motor data. The current listed in the table (column 1) is the maximum current allowed for the Armature Conductor Size (column 3) and the DC Contactor Rating (column 2). (2) The armature conductors are sized by multiplying the Rated Motor Armature Current by 1.25 as provided for in NEC 430-22 (1987). The DC lug ratings are determined from NEC Table 310-16 (1987) for copper conductors, insulation temperature rated at 75° C (167° F) at an ambient temperature of 30° C (86° F). If conditions are other than shown in NEC Table 310-16 then refer to applicable codes. (3) The dynamic braking (DB) conductors are sized as in Note 2, but at half ampacily due to the short time duration of current flow in these conductors,
