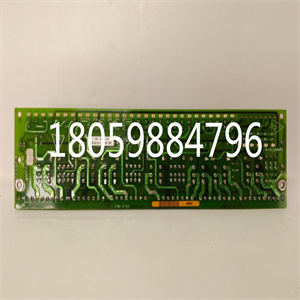

DS200TCPDG1BCC工控模块
端口2 RS-485信号
引脚号信号名称描述1*屏蔽电缆屏蔽2 NC无连接3 NC无连接4 NC无连接5+5VDC逻辑电源**6 RTS（A）差分请求发送7 SG信号接地8 CTS（B’）差分清除发送9 RT电阻器端接10 RD（A’）差分接收数据11 RD（B‘）差分接收数据12 SD（A）差动发送数据13 SD（B）差动发送数据14 RTS（B’）差动请求发送15 CTS（A’）差动清除发送*从模块正面看，引脚1位于连接器的右下角。**请注意，引脚5提供隔离+5 VDC电源（最大100 mA），用于为外部选项供电。端口3（底部端口）也与RS-485兼容，但不隔离。端口3有一个15针内螺纹D接头。引脚信息可在IC697 PLC安装手册中找到。中央处理单元GFK-1431F PLC CPU 1999年11月系列90-70可编程控制器数据表手册GFK-0600F 20-5 CPX 782正面的三个LED指示灯提供CPU上串行端口活动的状态，而无需连接终端。LED标记为P1、P2和P3，以对应于适用的端口。
CPU串行端口
从CPU串行端口到编程计算机或其他串行设备上的串行端口的连接需要串行电缆，对于端口2和3，需要转换器。可以使用IC690ACC901电缆套件（包括电缆和微型转换器）进行此连接，也可以根据特定应用的需要构建电缆。有关串行通信、电缆和转换器的更多信息，请参阅IC697 PLC安装手册。编程器连接，以太网TCP/IP通过以太网TCP/IP网络连接编程器需要在PLC中安装以太网接口模块。这可以是以太网控制器IC697CMM741或以太网接口（类型2）IC697CMM742。在将编程器和PLC连接到以太网TCP/IP网络之前，必须在以太网接口中设置IP地址。设置IP地址后，将PLC和运行Windows软件的编程器连接到以太网接口。有关通过以太网TCP/IP进行编程器连接的更多详细信息，请参阅TCP/IP以太网通信（2类）用户手册和Windows编程手册GFK-1295。配置IC697 CPU和I/O系统使用MS-DOS或基于Windows的编程软件进行配置，尽管MS-DOS软件不支持所有功能，如大容量内存区（BMA）、，这需要Windows软件版本2.2或更高版本。
Port 2 RS-485 signal
Pin number signal name description 1 * shielded cable shield 2 NC connectionless 3 NC connectionless 4 NC connectionless 5+5VDC logic power supply * * 6 RTS (A) differential request sending 7 SG signal grounding 8 CTS (B ') differential clearing sending 9 RT resistor termination 10 RD (A') differential receiving data 11 RD (B ') differential receiving data 12 SD (A) differential sending data 13 SD (B) differential sending data 14 RTS (B') differential request sending 15 CTS (A ') Differential clear transmit * Pin 1 is located in the lower right corner of the connector when viewed from the front of the module** Note that pin 5 provides an isolated+5 VDC power supply (100 mA maximum) to power the external option. Port 3 (bottom port) is also compatible with RS-485, but not isolated. Port 3 has a 15 pin female D-connector. Pin information can be found in the IC697 PLC Installation Manual. Central Processing Unit GFK-1431F PLC CPU November 1999 Series 90-70 Programmable Controller Data Sheet Manual GFK-0600F 20-5 CPX 782 The three LED indicators on the front of the CPU provide the status of serial port activity on the CPU without connecting the terminal. The LEDs are labeled P1, P2, and P3 to correspond to the applicable ports.
CPU Serial Port
The connection from the CPU serial port to the serial port on the programming computer or other serial devices requires a serial cable, and for ports 2 and 3, a converter is required. IC690ACC901 cable kit (including cable and micro converter) can be used for this connection, or cables can be built according to the needs of specific applications. For more information about serial communications, cables, and converters, refer to the IC697 PLC Installation Manual. The programmer is connected. Ethernet TCP/IP is connected to the programmer through Ethernet TCP/IP network. The Ethernet interface module needs to be installed in the PLC. This can be Ethernet controller IC697CMM741 or Ethernet interface (type 2) IC697CMM742. Before connecting the programmer and PLC to the Ethernet TCP/IP network, the IP address must be set in the Ethernet interface. After setting the IP address, connect the PLC and the programmer running Windows software to the Ethernet interface. For more details on programmer connections over Ethernet TCP/IP, refer to the TCP/IP Ethernet Communication (Class 2) User's Manual and the Windows Programming Manual GFK-1295. The IC697 CPU and I/O system are configured using MS-DOS or Windows based programming software, although MS-DOS software does not support all functions, such as large memory area (BMA), which requires Windows software version 2.2 or higher.
