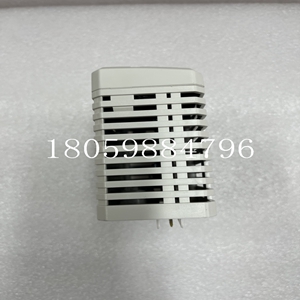

ABB DSDP170 57160001-ADF工控模块备件
注意事项
① 在操作过程中更改设置时要小心。控制有时可能因参数而受到不利影响。② 使用优质稳定的电源。由于噪音或瞬时断电，设置器有时会受到不利影响，有时会意外故障。-48-10.主要功能的详细说明10-1外部信号输入如果有外部信号输入的规格，设置器可以通过外部无电压触点信号（继电器、开关、集电极开路信号等）的导电信号（ON/OFF）具有特殊功能。通过模式11的“外部信号布局”，分配和使用外部信号输入功能和端子号。当在“外部信号分配”分配外部信号且切换外部信号输入时，按键操作或通信切换可能无效。功能名称说明1.运行/停止･运行/停止操作由外部驱动信号完成。･它是在程序运行的运行和停止之间切换的功能固定外部信号输入由连续信号控制。导通（ON）后约0.5秒或更长时间后，状态为RUN状态，非导通（OFF）后约0.5s或更长时间内，状态为OFF状态只有在模式1的“程序驱动系统”中选择“MASTER EXT”或“MASTR FREE”时，才启用该功能。▪执行条件和操作内容等与第9-2节“程序操作和运行操作”相同。2.ADV･ADV操作由外部驱动信号完成。
这是ADV
（前进：前进）程序模式步骤的功能固定外部信号输入由瞬时信号控制。导通（ON）大约持续0.5秒或更长时间，当其变为不导通（OFF）时，仅前进（ADV）1步。只有在模式1的“程序驱动系统”中选择了“MASTER EXT”或“MASTR FREE”时，才会启用。▪执行条件和操作内容等与第9-2节“程序操作和运行操作”相同。3.RESET･RESET的运行操作由外部驱动信号完成。･这是一个用于重置程序操作的功能固定外部信号输入由瞬时信号控制。在导通（ON）后约1.0秒或更长时间后获得RESET状态。为了在复位后恢复正常状态，直接选择不导通（OFF）只有在模式1的“程序驱动系统”中选择“MASTER EXT”或“MASTR FREE”时，才启用该功能。▪执行条件和操作内容等与第9-2节“程序操作和运行操作”相同。4.WAIT･专为外部驱动器输入提供操作功能。･它是程序操作的WAIT函数。WAIT表示暂时停止程序操作。在等待状态下，程序操作由SV停止，等待和控制操作之前的时间由SV继承。这是一个主要在主从同步操作时使用的功能固定外部信号输入由连续信号控制。导通（ON）后约0.5秒或更长时间后，状态为等待状态仅当在模式1的“程序驱动系统”中选择“MASTER EXT”或“MASTR FREE”时，才启用该功能。
matters needing attention
① Be careful when changing settings during operation. Control may sometimes be adversely affected by parameters. ② Use high-quality and stable power supply. Due to noise or transient power failure, the setter is sometimes adversely affected and sometimes fails unexpectedly- 48-10. Detailed Description of Main Functions10-1 If there is an external signal input specification, the setter can have special functions through the conductive signal (ON/OFF) of the external voltage free contact signal (relay, switch, open collector circuit signal, etc.). External signal input functions and terminal numbers are assigned and used through the "External signal layout" of mode 11. When an external signal is allocated in "External signal allocation" and the external signal input is switched, key operation or communication switching may be invalid. Description of function name 1. Run/stop ｜ Run/stop operation is completed by external drive signal. ｜ It is the function of switching between running and stopping of program operation. The external signal input is controlled by continuous signal. About 0.5 seconds or more after ON, the status is RUN. About 0.5 seconds or more after OFF, the status is OFF. This function is enabled only when "MASTER EXT" or "MASTER FREE" is selected in the "Program Driver System" of mode 1. ▪ The execution conditions and operation contents are the same as those in Section 9-2 "Program Operation and Operation". 2. ADV ¥ ADV operation is completed by an external drive signal.
This is ADV
(Forward: Forward) The function fixed external signal input of the program mode step is controlled by the instantaneous signal. The continuity (ON) lasts for 0.5 seconds or more. When it becomes non continuity (OFF), it only advances (ADV) for 1 step. It is enabled only when "MASTER EXT" or "MASTR FREE" is selected in "Program Driver System" of mode 1. ▪ The execution conditions and operation contents are the same as those in Section 9-2 "Program Operation and Operation". 3. RESET ¥ The operation of RESET is completed by an external drive signal. ¥ This is a function for resetting the operation of the program Fixed external signal inputs are controlled by instantaneous signals. The RESET status is obtained about 1.0 seconds or more after the ON. In order to return to normal state after reset, directly select OFF. This function is enabled only when "MASTER EXT" or "MASTER FREE" is selected in "Program Driver System" of mode 1. ▪ The execution conditions and operation contents are the same as those in Section 9-2 "Program Operation and Operation". 4. WAIT ¥ is designed to provide operating functions for external drive inputs. ¥ It is a WAIT function for program operation. WAIT means to temporarily stop program operation. In the waiting state, program operation is stopped by SV, and the time before waiting and controlling operation is inherited by SV. This is a function mainly used in master slave synchronous operation. Fixed external signal input is controlled by continuous signal. After about 0.5 seconds or more of ON, the status is waiting. This function is enabled only when "MASTER EXT" or "MASTR FREE" is selected in "Program Driver System" of mode 1.
