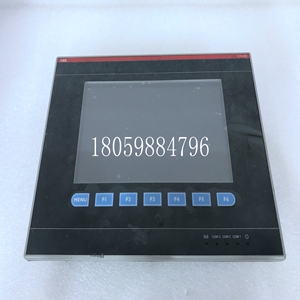

CP435-T-ETH ABB卡件
设置屏幕屏幕说明
1.模式屏幕[锁定状态][显示关闭状态]① 模式0屏幕。② 通过单击･ 键，显示“锁定”和“无显示”。③ 对于模式0设置屏幕，如果要禁止更改设置，请选择“锁定”。④ 通过通信进行设置时，将所有模式屏幕设置为“锁定”。⑤ 当未显示模式0的设置屏幕时，将显示“无显示”。2.正在执行的SV和时间① 可以改变执行步骤的SV和时间。② SV设置范围在SV范围内。③ 此屏幕设置的更改不会反映在模式2的“程序模式”的设置内容中，并且仅在该时间进行更改。3.SV校正① 设置SV校正（SV偏差）。② 这是一个功能，当您想稍微移动执行SV而不只是改变程序模式的设置时，它可以在不改变程序模式设置的情况下移动整个SV。该设置值不仅在SV校正处于执行步骤时有效，而且始终有效。因此要小心。③ 当SV小数点、SV刻度等发生变化时，有时小数点位置会自动发生变化，因此要小心25-7-3.模式1模式1执行与运行状态相关的设置。
设置屏幕屏幕说明
1.模式屏幕[锁定状态][显示关闭状态]① 模式1屏幕。② 通过单击･ 键，显示“锁定”和“无显示”。③ 对于模式1设置屏幕，如果要禁止更改设置，请选择“锁定”。④ 通过通信进行设置时，将所有模式屏幕设置为“锁定”。⑤ 当未显示模式1的设置屏幕时，将显示“无显示”。2.运行操作钥匙锁① 可以锁定运行操作键。② 如果选择了“UNLOCK”（解锁），锁将被释放 键变为启用状态，可以通过键执行运行操作。③ 如果选择“LOCK”（锁定）， 键被禁用，无法通过键执行运行操作。3.程序驱动系统① 仅显示外部信号输入（DI）规格或通信规格。② 设置程序驱动系统。③ 如果选择“MASTER KEY”（主钥匙），则通过前钥匙完成驾驶。④ 如果选择了“MASTER EXT”（主输出），则通过外部驱动输入完成驱动，但是，只能选择具有外部信号输入的规格。⑤ 如果选择了“MASTER FREE”（主控自由），则可以通过前键、外部信号输入和通信中的任何一个进行驾驶。然而，它只能用于外部信号输入规格或通信规格。此时，任何最后一次驱动操作都将成为最新的驱动状态，但不能从外观上判断最后一次的驱动系统类型，因此要小心。⑥ 若选择了“SLAVE EXT”，则通过与其他信号同步的外部信号输入完成驱动。但是，它只能用于具有外部信号输入的规格。⑦ 如果选择“MASTER COM”（主通信），则通过通信完成驾驶。但是，它只能用于通信规格。
Setup Screen Description
1. Mode screen [Lock status] [Display off status] ① Mode 0 screen. ② Click the Element key to display "Lock" and "No Display". ③ For the Mode 0 settings screen, select Lock if you want to prevent changing settings. ④ When setting through communication, set all mode screens to "locked". ⑤ When the setting screen for mode 0 is not displayed, "No Display" will be displayed. 2. The SV and time ① of the executing step can be changed. ② The SV setting range is within the SV range. ③ Changes to this screen setting will not be reflected in the settings of "Program Mode" in mode 2 and will only be changed at that time. 3. SV correction ① Set SV correction (SV deviation). ② This is a function. When you want to move the SV slightly instead of just changing the program mode settings, it can move the entire SV without changing the program mode settings. This setting is not only valid when SV correction is in the execution step, but also always valid. So be careful. ③ When the SV decimal point and SV scale change, sometimes the decimal point position will automatically change, so be careful 25-7-3. Mode 1 Mode 1 executes the settings related to the operation status.
Setup Screen Description
1. Mode screen [Lock status] [Display off status] ① Mode 1 screen. ② Click the Element key to display "Lock" and "No Display". ③ For the Mode 1 settings screen, select Lock if you want to prevent changing settings. ④ When setting through communication, set all mode screens to "locked". ⑤ When the setting screen for mode 1 is not displayed, "No Display" will be displayed. 2. Operation key lock ① can lock the operation key. ② If "UNLOCK" is selected, the lock will be released and the element key will become enabled, and the operation can be performed through the key. ③ If "LOCK" is selected, the element key is disabled and the run operation cannot be performed through the key. 3. The program driver system ① only displays the external signal input (DI) specification or communication specification. ② Set up the program driver system. ③ If "MASTER KEY" is selected, the driving is completed through the front KEY. ④ If "MASTER EXT" is selected, the drive is completed through an external drive input, but only specifications with an external signal input can be selected. ⑤ If "MASTER FREE" is selected, you can drive through any of the front keys, external signal input and communication. However, it can only be used for external signal input specifications or communication specifications. At this time, any last drive operation will become the latest drive state, but the last drive system type cannot be judged from the appearance, so be careful. ⑥ If "SLAVE EXT" is selected, the drive is completed by external signal input synchronized with other signals. However, it can only be used for specifications with external signal inputs. ⑦ If "MASTER COM" is selected, the driving is completed through communication. However, it can only be used for communication specifications.
