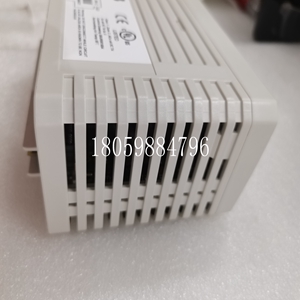

控制器模块CI854K01
硬件的延长保修期
S800 I/O、S900 I/O、Fieldbus和AC 800M硬件的延长保修期瑞典ABB AB内部的Local Division Process Automation、LBU Open Control Systems提供产品的条款和条件有效。请注意，延长保修期订单的价格将按随附订单中受影响的S800 I/O、S900 I/O、现场总线和AC 800M产品的百分比计算。A100项=>整个订单中受影响硬件产品的3%。A110项=>整个订单中受影响硬件产品的6%。A120项=>整个订单中受影响硬件产品的9%。产品编号：12个月额外保修期-S800 I/O、S900 I/O、Fieldbus和AC 800M 3BSE049878R1 24个月额外质保期-S800I/O、S900I/O、Fildbus和AC800M 3SSE049878 R2 36个月额外保证期-S8000 I/O、S800 I/O，现场总线和AC 800M 3BSE049878R3延长保修系统800xA产品目录| S900 I/O 65 S900远程I/O系统通过PROFIBUS与800xA或其他控制器通信。S900 I/O适用于化工、制药、石油和天然气行业，可安装在危险区域，从而降低编组和布线成本。通过S900的扩展诊断和使用符合HART®的现场设备，可以进一步节省维护费用。有三个系列的S900 I/O可用：− S系列适用于1区危险区域− B系列适用于2区危险区域− N系列适用于非危险区域的其他应用解决方案：− 现场外壳-用于壁挂式安装和1区安装，系统认证完全符合ATEX。
高等级钢外壳准备用于墙壁安装
配有绝缘屏轨或端子设施。− CB220紧凑型机箱-S900紧凑型（最多4个I/O模块）。该变型适用于温度多路复用器和电磁阀电路等应用。系统800xA硬件S900 I/O S900组件基于无源背板，适合安装在DIN导轨上或直接安装在子配电板上。无源背板包括内部总线通信、现场电路端子、通信和电源。功能模块插入相应插槽中的背板。冗余背板有两个用于电源设备的插槽，两个用于通信接口的插槽，以及16个用于功能模块的插槽。数字功能模块最多有8个通道，模拟模块最多有4个通道。因此，当使用冗余背板时，每个站可以连接128个数字或64个模拟信道。对于S和B系列，在一条现场总线线路上最多可以连接十个S900站。S900的主要优势包括：− 本质安全-可安装在1区和2区区域。− 良好的性价比，因为消除了外部障碍，降低了布线、安装、硬件和维护方面的成本。− 由于数据的平滑自动传输和自动诊断，可靠性高。− 使用FDT/DTM或GSD文件轻松配置，允许与800xA过程控制系统轻松集成。− 由于运行期间所有组件的冗余和热插拔能力，工厂的高可用性。
Extended warranty period of hardware
The extended warranty period of S800 I/O, S900 I/O, Fieldbus and AC 800M hardware The terms and conditions of the products provided by Local Division Process Automation and LBU Open Control Systems in ABB AB Sweden are valid. Please note that the price of the extended warranty order will be calculated based on the percentage of S800 I/O, S900 I/O, Fieldbus and AC 800M products affected in the attached order. A100 items=>3% of the affected hardware products in the whole order. A110 items=>6% of the affected hardware products in the whole order. A120 items=>9% of the affected hardware products in the whole order. Product No.: 12 months additional warranty period - S800 I/O, S900 I/O, Fieldbus and AC 800M 3BSE049878R1 24 months additional warranty period - S800 I/O, S900 I/O, Fieldbus and AC800M 3SSE049878 R2 36 months additional warranty period - S8000 I/O, S800 I/O, fieldbus and AC 800M 3BSE049878R3 extended warranty system 800xA product catalog | S900 I/O 65 S900 remote I/O system communicates with 800xA or other controllers through PROFIBUS. S900 I/O is suitable for chemical, pharmaceutical, petroleum and natural gas industries and can be installed in hazardous areas, thus reducing marshalling and wiring costs. HART compliant with extended diagnostics and use of S900 ® And can further save maintenance costs. There are three series of S900 I/O available: − S series for Zone 1 hazardous areas − B series for Zone 2 hazardous areas − N series for other application solutions in non hazardous areas: − Field enclosure - for wall mounted installation and Zone 1 installation. The system certification is fully ATEX compliant.
High grade steel enclosure ready for wall mounting
Equipped with insulated screen rail or terminal facilities. − CB220 compact enclosure - S900 compact (up to 4 I/O modules). This variant is suitable for applications such as temperature multiplexers and solenoid valve circuits. The system 800xA hardware S900 I/O S900 components are based on a passive backplane and are suitable for mounting on DIN rails or directly on sub distribution boards. The passive backplane includes internal bus communication, field circuit terminals, communication and power supply. The function module is inserted into the backplane in the corresponding slot. The redundant backplane has two slots for power supplies, two slots for communication interfaces, and 16 slots for functional modules. The digital function module has a maximum of 8 channels and the analog module has a maximum of 4 channels. Therefore, when using redundant backplanes, each station can connect 128 digital or 64 analog channels. For S and B series, a maximum of ten S900 stations can be connected on one field bus line. The main advantages of S900 include: − Intrinsically safe - can be installed in Zone 1 and Zone 2 areas. − Good cost performance, because it eliminates external barriers and reduces the cost of cabling, installation, hardware and maintenance. − High reliability due to smooth automatic transmission and automatic diagnosis of data. − Easy configuration using FDT/DTM or GSD files, allowing easy integration with the 800xA process control system. − High availability of the plant due to redundancy and hot plug capability of all components during operation.
