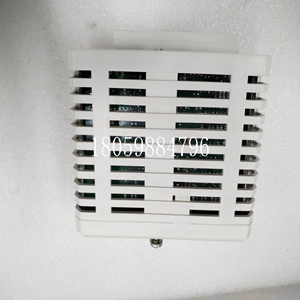

CI840A机器人卡件
模拟输入模块
产品编号AI810模拟输入1 x 8通道0（4）..20 mA，0..10 V，12位，单端，0.1%，额定绝缘。50伏。使用模块终端装置TU810、TU812、TU814、TU830、TU833、TU835、TU838、TU850。3BSE008516R1 AI815模拟输入1 x 8通道，带HART 0（4）..20 mA、0（1）..5 V、12位、单端、0.1%、额定隔离。50伏。限流变送器功率分配。使用模块终端装置TU810、TU812、TU814、TU830、TU833、TU835、TU838、TU850。3BSE052604R1 AI820模拟输入4 x 1通道+/-20 mA、0（4）…20 mA、+/-10 V、+/-5 V、0（1）…5 V、差分、50 V CMV、14位+符号。Rin（电流）250欧姆，额定绝缘。50 V.使用模块终端装置TU810、TU812、TU814、TU830、TU833。3BSE008544R1 AI825模拟输入4 x 1通道电流。isol-20.20 mA、0（4）.20 mA、-10.10 V、0（2）.10 V，电流隔离通道。14位+符号，0.1%，额定隔离。250 V。使用模块终端装置TU811、TU813、TU831。3BSE036456R1 AI830A模拟输入1 x 8通道RTD Pt100，Ni100/120，Cu 10，R，额定绝缘。50 V。使用模块终端装置TU810、TU812、TU814、TU830、TU833。3BSE040662R1 AI835A模拟输入8通道热电偶/mV额定绝缘。50 V.使用模块终端装置TU810、TU812、TU814、TU830、TU833。3BSE051306R1 AI843模拟输入，冗余或单路1 x 8通道终端/mV。额定绝缘。50 V.使用模块终端装置TU830、TU833、TU842、TU843。3BSE028925R1 AI845模拟输入，冗余或单个1 x 8通道HART。0（4）..20 mA，0（1）..5 V，12位，单端，0.1%，额定绝缘。50伏。限流变送器功率分配。高级车载诊断。使用模块终端装置TU810、TU812、TU814、TU830、TU833、TU835、TU838、TU844、TU845。3BSE023675R1 AI890模拟输入1 x 8通道，带本质安全接口0（4）…20 mA单端0.1%。额定绝缘。50 V。使用模块终端装置TU890或TU891.3BSC690071R1 AI893模拟输入8通道温度测量。本质安全接口。对于TC和RTD传感器。额定绝缘。50 V.使用模块终端装置TU890或TU891.3BSC690141R1 AI895模拟输入1 x 8通道，带本质安全和HART。4…20 mA单端0.1%。额定绝缘。50 V。使用模块终端装置TU890或TU891。3BSC690086R1 54 S800 I/O | System 800xA产品目录S800 I/O模块模拟输出模块文章编号AO810V2模拟输出1 x 8通道，0（4）…20 mA 0（2）..20 mA，14位RLmax 500/850欧姆，额定隔离50 V。
使用模块终端装置
TU810、TU812、TU814、TU830或TU833。3BSE038415R1 AO815模拟输出1 x 8通道，HART 4..20 mA，12位，0.1%，RLmax 750 ohm，额定绝缘。50 V。使用模块终端装置TU810、TU812、TU814、TU830或TU833。3BSE052605R1 AO820模拟输出4 x 1通道+/-20 mA，0（4）…20 mA，+/-10 V，12位+符号。独立。isol。通道RL最大500欧姆，额定绝缘。50 V。使用模块终端装置TU810、TU812、TU814、TU830、TU833。3BSE008546R1 AO845A模拟输出冗余或单个1 x 8通道HART 4..20 mA，12位，0.1%，RLmax 750 ohm，额定绝缘。50 V.先进的车载诊断。使用模块终端装置TU810、TU812、TU814、TU830、TU833、TU842、TU843。3BSE045584R1 AO890模拟输出1 x 8通道，带本质安全接口0（4）…20 mA 0.1%。RL最大750欧姆额定绝缘。50 V.使用模块终端装置TU890或TU891.3BSC690072R1 AO895模拟输出1 x 8通道，带本质安全和HART。4…20 mA 0.1%。RL最大750欧姆额定绝缘。50 V.使用模块终端装置TU890或TU891.3BSC690087R1系统800xA产品目录| S800 I/O 55 S800 I/O模块数字输入模块产品编号DI810数字输入24 V直流2 x 8通道。额定隔离50 V.采用模块终端装置TU810、TU812、TU814、TU830、TU833、TU838。3BSE008508R1 DI811 2 x 8信道。48 V数字输入48 V直流2×8通道，额定隔离。50 V.使用模块终端装置TU810、TU812、TU814、TU830、TU833、TU838。3BSE008552R1 DI814数字输入24 V直流电流源2 x 8通道额定隔离开关。50 V.使用模块终端装置TU810、TU812、TU814、TU830、TU833、TU838。3BUR001454R1 DI818数字输入24V直流32通道2x16通道，额定绝缘。50V，使用模块终端装置TU818、TU819、TU830。注意：在价格手册发布时，此项目需要订购TSA。订购前，请在TSA数据库中检查TSA的当前需求。3BSE069052R1 DI820数字输入，120 V a.c.8 x 1 ch，额定绝缘。250 V。使用模块终端装置TU811、TU813、TU831。3BSE008512R1 DI821数字输入230 V a.c.8 x 1 ch，额定绝缘。250 V。使用模块终端装置TU811、TU813、TU831。3BSE008550R1 DI825数字输入1 x 8通道，125 V直流SOE。单独隔离通道，额定隔离。250 V。使用模块终端装置TU811、TU813、TU831。3BSE036373R1 DI828数字输入，120V交流/直流16通道16x1通道，额定绝缘。250V，使用模块终端装置TU851。注意：在价格手册发布时，此项目需要订购TSA。订购前，请在TSA数据库中检查TSA的当前需求。3BSE069054R1 DI830数字输入24 V直流SOE 2 x 8 ch，额定隔离。50 V.使用模块终端装置TU810、TU812、T
Analog input module
Product No. AI810 Analog input 1 x 8 channels 0 (4).. 20 mA, 0.10 V, 12 bit, single ended, 0.1%, rated insulation. 50 Volts. Use the module terminal units TU810, TU812, TU814, TU830, TU833, TU835, TU838, TU850. 3BSE008516R1 AI815 analog input 1 x 8 channels with HART 0 (4).. 20 mA, 0 (1).. 5 V, 12 bit, single ended, 0.1%, rated isolation. 50 Volts. Power distribution of current limiting transmitter. Use the module terminal units TU810, TU812, TU814, TU830, TU833, TU835, TU838, TU850. 3BSE052604R1 AI820 analog input 4 x 1 channel+/- 20 mA, 0 (4)... 20 mA,+/- 10 V,+/- 5 V, 0 (1)... 5 V, differential, 50 V CMV, 14 bit+symbol. Rin (current) 250 ohms, rated insulation. 50 V. Use module terminal units TU810, TU812, TU814, TU830, TU833. 3BSE008544R1 AI825 analog input 4 x 1 channel current. isol-20.20 mA、0（4）. 20 mA、-10.10 V、0（2）. 10 V, current isolated channel. 14 digits+symbol, 0.1%, rated isolation. 250 V。 Use the module terminal units TU811, TU813, TU831. 3BSE036456R1 AI830A analog input 1 x 8-channel RTD Pt100, Ni100/120, Cu 10, R, rated insulation. 50 V。 Use the module terminal units TU810, TU812, TU814, TU830, TU833. 3BSE040662R1 AI835A analog input 8-channel thermocouple/mV rated insulation. 50 V. Use module terminal units TU810, TU812, TU814, TU830, TU833. 3BSE051306R1 AI843 analog input, redundant or single 1 x 8-channel terminal/mV. Rated insulation. 50 V. Use module terminal units TU830, TU833, TU842, TU843. 3BSE028925R1 AI845 analog input, redundant or single 1 x 8-channel HART. 0 (4).. 20 mA, 0 (1).. 5 V, 12 bit, single ended, 0.1%, rated insulation. 50 Volts. Power distribution of current limiting transmitter. Advanced On Board Diagnostics. Use the module terminal units TU810, TU812, TU814, TU830, TU833, TU835, TU838, TU844, TU845. 3BSE023675R1 AI890 analog input 1 x 8 channels with intrinsically safe interface 0 (4)... 20 mA single ended 0.1%. Rated insulation. 50 V。 Use the module terminal TU890 or TU891.3BSC690071R1 AI893 analog input 8-channel temperature measurement. Intrinsically safe interface. For TC and RTD sensors. Rated insulation. 50 V. Analog input 1 x 8 channels using module terminal unit TU890 or TU891.3BSC690141R1 AI895, with intrinsic safety and HART. 4... 20 mA single ended 0.1%. Rated insulation. 50 V。 Use the module terminal unit TU890 or TU891. 3BSC690086R1 54 S800 I/O | System 800xA product catalog S800 I/O module Analog output module article number AO810V2 Analog output 1 x 8 channels, 0 (4)... 20 mA 0 (2).. 20 mA, 14 bit RLmax 500/850 ohms, rated isolation 50 V.
Using the module terminal unit
TU810, TU812, TU814, TU830 or TU833. 3BSE038415R1 AO815 analog output 1 x 8-channel, HART 4.. 20 mA, 12 bit, 0.1%, RLmax 750 ohm, rated insulation. 50 V。 Use the module terminal unit TU810, TU812, TU814, TU830 or TU833. 3BSE052,605R1 AO820 analog output 4 x 1 channel+/- 20 mA, 0 (4)... 20 mA,+/- 10 V, 12 bit+symbol. independent. isol。 Channel RL 500 ohms maximum, rated insulation. 50 V。 Use the module terminal units TU810, TU812, TU814, TU830, TU833. 3BSE008546R1 AO845A analog output redundancy or single 1 x 8-channel HART 4.. 20 mA, 12 bit, 0.1%, RLmax 750 ohm, rated insulation. 50 V. Advanced on-board diagnostics. Use the module terminal units TU810, TU812, TU814, TU830, TU833, TU842, TU843. 3BSE045584R1 AO890 analog output 1 x 8 channels with intrinsically safe interface 0 (4)... 20 mA 0.1%. RL maximum 750 ohm rated insulation. 50 V. Use module terminal unit TU890 or TU891.3BSC690072R1 AO895 analog output 1 x 8 channels with intrinsic safety and HART. 4…20 mA 0.1%。 RL maximum 750 ohm rated insulation. 50 V. Use module terminal device TU890 or TU891.3BSC690087R1 system 800xA product catalog | S800 I/O 55 S800 I/O module digital input module product number DI810 digital input 24 V DC 2 x 8 channels. Rated isolation 50 V. Module terminal devices TU810, TU812, TU814, TU830, TU833, TU838 are used. 3BSE008508R1 DI811 2 x 8 channels. 48 V digital input 48 V DC 2 × 8-channel, rated isolation. 50 V. Use module terminal units TU810, TU812, TU814, TU830, TU833, TU838. 3BSE008,552R1 DI814 Digital input 24V DC current source 2 x 8-channel rated disconnector. 50 V. Use module terminal units TU810, TU812, TU814, TU830, TU833, TU838. 3BUR001454R1 DI818 digital input 24V DC 32 channels 2x16 channels, rated insulation. 50V, using module terminal devices TU818, TU819, TU830. Note: TSA needs to be ordered for this item when the price manual is released. Before ordering, please check the TSA's current requirements in the TSA database. 3BSE069052R1 DI820 digital input, 120 V a.c.8 x 1 ch, rated insulation. 250 V。 Use the module terminal units TU811, TU813, TU831. 3BSE008,512R1 DI821 digital input 230 V a.c.8 x 1 ch, rated insulation. 250 V。 Use the module terminal units TU811, TU813, TU831. 3BSE008550R1 DI825 digital input 1 x 8 channels, 125 V DC SOE. Separate isolation channel, rated isolation. 250 V。 Use the module terminal units TU811, TU813, TU831. 3BSE036373R1 DI828 digital input, 120V AC/DC 16 channel 16x1 channel, rated insulation. 250V, using module terminal unit TU851. Note: TSA needs to be ordered for this item when the price manual is released. Before ordering, please check the TSA's current requirements in the TSA database. 3BSE069054R1 DI830 digital input 24 V DC SOE 2 x 8 ch, rated isolation. 50 V. Using the module terminal units TU810, TU812, T
