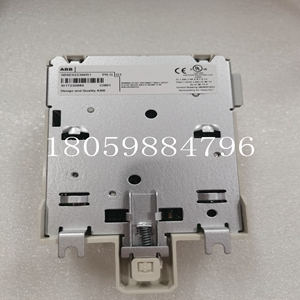

CI801 DCS控制模块
高完整性单元
CPU单元用于高完整性系统。当地组织必须遵守资质要求，以确保ABB安全系统的成功销售，并订购安全设备。参考文件，3BSE047224。物品编号：K01处理器单元包，包括：-，CPU-TP830，基板，宽度=115 mm-TB850，CEX总线终端-TB807，ModuleBus终端-TB852，RCU链路终端-内存备份电池（4943013-6）3BSE031151R1 K 02冗余处理器单元包包括：2个K1，处理器单元。1根TK850、CEX总线扩展电缆。1根TK851，RCU链路电缆。3BSE031150R1 SM811K01安全CPU模块套件协作安全CPU。在BC810 CEX总线互连盒后连接到CEX总线。包括：-SM811，安全模块-TP868，底板，宽度=60 mm-TK852V10，同步链路电缆3BSE018173R1 SS823高完整性800xA系统所需的表决装置。每个电源单元一个，也在冗余配置中。3BSE038226R1额外电池对于额外的锂电池（4943013-6），请参阅商业在线。40 控制器|系统800xA产品目录通信支持的通信模块Profibus Foundation Fieldbus RS-232 C MB300 INSUM Drivebus S100 I/O接口Genius TRIO I/O Satt I/O Modbus TCP IEC 61850模块CI854A CI860 CI853 CI855 CI857 CI858 CI856 CI862 CI865 CI867 CI868协议DP-V1（通过链接设备的PA）HSE（通过链接装置的H1）Modbus主机、Comli主机/从机、，用户定义协议MB300 IEEE 802.3 ABB的Drivebus ABB的S100 I/O Genius ABB的Satt I/O MODBUS TCP IEC 61850传输速度9.6-12000 kbit/s 10/100 Mbits/s 75-19 200 b/s 10 Mbits/s，200数据集/s 10 Mbit/s 4 Mbits/s-38.4-153.6 kbit/s-10/100 Mb/s（Ch1），10 Mbits/s（Ch2）10/100 Mbits/s热插拔是是是是有是是是的是是是连接器DB母接头（9针）RJ-45母接头（8针）RJ45母接头PROFINET IO Ethernet/IP LD 800DN模块CI869 CI871 CI873链接设备协议AF100 PROFINETIO Ethernet/IP DeviceNet传输速度1.5 Mbit/s 10/100 Mbit/s 10/100兆bit/s最高500 Kbit/s
热插拔是否连接器Phoenix（4针）
RJ-45内螺纹（8针）RJ45内螺纹通信本价格表中不包括控制网络的任何物品，如电缆、集线器、交换机等。有关推荐的文章，请参阅产品指南。TP830 RS232-C接口上的串行接口，用于协议COMLI、MODBUS、西门子3964R、自由可编程串行协议等，也用于连接工程工具。产品编号TK212A工具电缆RJ45（公）至Dsub-9（母），长度为3 m。RJ45 8P8C插头（带外壳）。电缆：UL2464 26 AWG x 8C。3BSC630197R1 TC562短距离调制解调器，G1兼容长度<10 km。以19200 bps的速率点对点传输1 km。电源24 V直流宽度=55 mm。3BSC630049R1 TK853V020调制解调器电缆长度2 m，用于连接调制解调器TC562和TP830之间的电缆。3BSC950201R1串行通信接口RS232-c接口，用于协议COMLI、MODBUS、西门子3964R、免费可编程串行协议等。产品编号CI853K01双RS232-c接口包，包括：-CI853、通信接口-TP853、底板、，width=60 mm 3BSE018103R1 MODBUS TCP产品编号CI867K01 MODBUS TCP接口包，包括：-CI867，通信接口-TP867，底板，width=60 mm 3SSE043660R1 PROFIBUS DP所需的PROFIBU网络组件（链接设备等）必须从价目表3BDD 013 232，PROFIBUS网络组件中订购。物品编号CI854AK01 PROFIBUS DP-V1通信接口包，包括：-CI854A，通信接口-TP854，底板，宽度=60 mm 3BSE030220R1 PROFINET IO物品编号CI871K01 PROFINETIO通信接口包包括：-C2871，通信接口-TP867，底板宽度=60 mm3BSE056767R1
High integrity unit
The CPU unit is used for high integrity systems. The local organization must comply with the qualification requirements to ensure the successful sale of ABB safety systems and order safety equipment. Reference, 3BSE047224. Article No.: K01 processor unit package, including: -, CPU-TP830, base plate, width=115 mm-TB850, CEX bus terminal - TB807, ModuleBus terminal - TB852, RCU link terminal - memory backup battery (4943013-6) 3BSE031151R1 K 02 redundant processor unit package, including: 2 K1, processor unit. 1 TK850, CEX bus expansion cable. One TK851, RCU link cable. 3BSE031150R1 SM811K01 Secure CPU module kit cooperates with the secure CPU. Connect to CEX bus after BC810 CEX bus interconnection box. Including: - SM811, security module - TP868, backplane, width=60mm-TK852V10, voting device required by synchronous link cable 3BSE018173R1 SS823 high integrity 800xA system. One for each power supply unit, also in redundant configuration. 3BSE038226R1 Additional Battery For the additional lithium battery (4943013-6), see Commercial Online. 40 Controller | System 800xA Product Directory Communication Supported Communication Module Profibus Foundation Fieldbus RS-232 C MB300 INSUM Drivebus S100 I/O Interface Genius TRIO I/O Satt I/O Modbus TCP IEC 61850 Module CI854A CI860 CI853 CI855 CI857 CI858 CI856 CI862 CI865 CI867 CI868 Protocol DP-V1 (via PA of linked devices) HSE (via H1 of linked devices) Modbus host, Comli host/slave, User defined protocol MB300 IEEE 802.3 Drivebus ABB S100 I/O Genius ABB Satt I/O MODBUS TCP IEC 61850 Transmission speed 9.6-12000 kbit/s 10/100 Mbits/s 75-19 200 b/s 10 Mbits/s, 200 data set/s 10 Mbit/s 4 Mbits/s-38.4-153.6 kbit/s-10/100 Mb/s (Ch1), 10 Mbits/s (Ch2) 10/100 Mbits/s hot plug Yes Yes Yes Yes Yes Yes Yes Yes Yes Connector DB female connector (9-pin) RJ-45 female connector (8-pin) RJ45 female connector PROFINET IO Ethernet/IP LD 800DN module CI869 CI871 CI873 link device protocol AF100 PROFINETIO Ethernet/IP DeviceNet transmission speed 1.5 Mbit/s 10/100 Mbit/s 10/100 Mbit/s up to 500 Kbit/s
Hot plug connector Phoenix (4-pin)
RJ-45 internal thread (8-pin) RJ45 internal thread communication This price list does not include any items of the control network, such as cables, hubs, switches, etc. Refer to the product guide for recommended articles. The serial interface on the TP830 RS232-C interface is used for protocol COMLI, MODBUS, Siemens 3964R, free programmable serial protocol, etc., and also for connecting engineering tools. The product number of TK212A tool cable RJ45 (male) to Dsub-9 (female) is 3 m. RJ45 8P8C plug (with housing). Cable: UL2464 26 AWG x 8C. 3BSC630197R1 TC562 short-range modem, G1 compatible length<10 km. 1 km point-to-point transmission at 19200 bps. Power supply 24 V DC width=55 mm. 3BSC630049R1 TK853V020 modem cable is 2 m long, which is used to connect the cable between modem TC562 and TP830. 3BSC950201R1 serial communication interface RS232-c interface is used for protocol COMLI, MODBUS, Siemens 3964R, free programmable serial protocol, etc. Product No. CI853K01 Dual RS232-c interface package, including: - CI853, communication interface - TP853, backplane,, width=60 mm 3BSE018103R1 MODBUS TCP Product No. CI867K01 MODBUS TCP interface package, including: - CI867, communication interface - TP867, backplane, width=60 mm 3SSE043660R1 PROFIBUS DP The PROFIBUS network components (link devices, etc.) required by PROFIBUS DP must be ordered from the price list 3BDD 013 232, PROFIBUS network components. Article No. CI854AK01 PROFIBUS DP-V1 communication interface package, including: - CI854A, communication interface - TP854, base plate, width=60 mm 3BSE030220R1 PROFINET IO Article No. CI871K01 PROFINETIO communication interface package, including: - C2871, communication interface - TP867, base plate width=60 mm 3BSE056767R1
