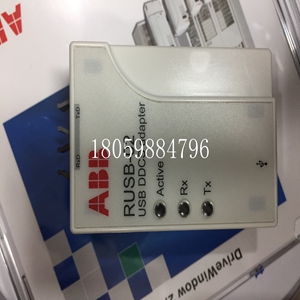

3AUA0000040000控制器
硬件设置
作为订购信息的一部分，出厂时已填充用户指定的选项。内存大小和CompactFlash大小不可由用户升级。要更改内存或CompactFlash大小，请联系客户服务部以获得退货授权（RMA）。RMA可从rma@gefanuc.com.GE Fanuc嵌入式系统客户服务热线：1-800-GEFANUC（1-800-433-2682），1-780-401-7700或发送电子邮件至support.embeddedsystems@gefanuc.com经过系统运行测试，并随出厂配置的跳线和开关一起发货。SBC的开关、跳线和连接器的物理位置如第24页图1-1所示。SBC开关、跳线器和连接器的定义如表1-1至表1-4所示。请注意，提供一个PMC站点，指定为PMC#1，如第24页面图1-1中所示。警告：下表中标记为“用户可配置”的所有跳线都可能由用户更改或修改。用户不得修改所有标记为出厂配置的跳线。修改跳线时必须小心，以确保设置或连接不正确。设置不当可能导致装置损坏。修改任何未标记为“用户可配置”的跳线将使保修无效，并可能损坏设备。24 1 产品手册图1-1 PMC站点和交换机位置P2 P1 Tundra Universe Pentium-M处理器CompactFlash（可选）（可选）J12 J13 J11 E3 SODIMM 1 2 ON 1 2 S8 1 2 S1 S2 ON 1 2 S6 S7 S1位置1，Off=默认（板的控制器状态-由其机箱插槽确定）。S1位置1，开=根据S1位置2的设置，使板成为系统控制器或非系统控制器。S1位置2，关闭=默认（强制板成为系统控制器，而不管它安装在哪个插槽中）。S1位置2，开=将板强制到非系统控制器，无论其安装在哪个插槽中。S1系统控制器跳线已安装，电池启用。跳线已拆下，电池已禁用。E3电池启用E3电池启动S8 CompactFlash S8位置1，关闭=默认（写入启用）S8位置2，打开=写入保护S8位置3=未使用S2 S1 On 1 2 On 1 2 S7位置1，打开=默认（启用VME SYSRESET驱动程序）S7位置2，关闭=禁用VME SYSESET驱动程序。
S7位置2，开=默认（启用SYSRESET接收器）S7位置3，关=禁用VME SYSRESET接收机。S7 VME SYSRESET S7 ON 1 2 S6位置1，ON=默认（启用SYSFAIL生成）S6位置2，Off=禁用SYSFAIL产生S6位置3，ON＝默认（将UNIV2映射到内存空间）S6位2，Off=将UNIV1映射到I/O空间S6 Universe II映射/SYSFAIL产生S6 ON 1 2 S8 S2位置1、Off=默认值（正常操作）S2位置2、ON=清除CMOS S2位置3、，Off=默认（Boot Hall with Post Errors）S2位置2，On=Boot with Post-Errors S2 CMOS Clear/BIOS Boot Mode 1 2 On 1 2 On 2 On 2 2 25硬件设置1表1-1 SBC连接器和开关连接器功能P1 VME接口连接器P2 USB 2.0、串行ATA、数字视频、IDE、COM2、3和4、，可选千兆以太网P0 VITA 31.1接口连接器（可选）P3 CompactFlash插座J16和J17 USB端口J10键盘/鼠标PS/2型连接器J9 ITP连接器J15 10/100 Mb RJ45以太网连接器J18千兆以太网连接器（可选的）J11，J12和J13 PMC站点连接器J22串行端口连接器（COM1）J19 SVGA连接器J21 GE Fanuc嵌入式系统的PCI扩展连接器（PMC237CM1/V）B1电池开关功能S1系统控制器S2 CMOS清除开关/BIOS引导模式S4复位开关（前面板）S6将Universe II映射到I/O空间S7 VME SYSRESET表1-2电池启用（用户可配置）-跳线（E3）选择跳线Position Battery Enabled On Battery Disabled Off 26 1 Product Manual注意：BIOS具有密码保护功能（当前未启用），可保护对设备CMOS设置屏幕的随意访问。密码清除开关允许用户在系统BIOS故障或忘记密码的情况下清除CMOS和密码。要清除CMOS密码：1.关闭设备电源。2.将开关S2位置1移到接通位置。3.等待约5秒。4.将开关S2位置1移到关闭位置。5.给装置通电。当装置重新通电时，CMOS密码将被清除，CMOS将被设置为默认值。表1-3 VME系统控制器（用户可配置）-开关（S1）位置功能状态1-4正常操作（默认）关闭1-4启用系统或非系统控制器（任何插槽）打开2-3强制系统控制器（任意插槽）关闭2-3强迫系统或非系统控制器（任何槽）打开表1-4密码清除/BIOS引导模式正常关闭1-4
Hardware Settings
User specified options are populated at the factory as part of the ordering information. Memory size and CompactFlash size cannot be upgraded by users. To change the memory or CompactFlash size, contact Customer Service for a Return Authorization (RMA). RMA can be accessed from rma@gefanuc.com.GE Fanuc Embedded System Customer Service Hotline: 1-800-GEFANUC (1-800-433-2682), 1-780-401-7700 or email to support.embeddedsystems@gefanuc.com After the system operation test, it is shipped with the factory configured jumper and switch. The physical locations of SBC switches, jumpers, and connectors are shown in Figure 1-1 on page 24. The SBC switch, jumper and connector are defined in Table 1-1 to Table 1-4. Note that a PMC site is provided, designated as PMC # 1, as shown in Figure 1-1 on page 24. Warning: All jumpers marked as "user configurable" in the following table may be changed or modified by the user. The user must not modify all jumpers marked as factory configured. Care must be taken when modifying jumpers to ensure that the settings or connections are incorrect. Improper setting may cause damage to the unit. Modifying any jumpers that are not marked as "user configurable" will void the warranty and may damage the equipment. 24 1 Product Manual Figure 1-1 PMC site and switch location P2 P1 Tundra Universe Pentium M processor CompactFlash (optional) (optional) J12 J13 J11 E3 SODIMM 1 2 ON 1 2 S8 1 2 S1 S2 ON 1 2 S6 S7 S1 location 1, Off=default (the controller status of the board is determined by its chassis slot). S1 position 1, ON=Make the board a system controller or a non system controller according to the setting of S1 position 2. S1 position 2, off=default (force the board to become the system controller, regardless of which slot it is installed in). S1 position 2, ON=force the board to the non system controller, regardless of which slot it is installed in. The S1 system controller jumper is installed and the battery is enabled. The jumper is removed and the battery is disabled. E3 battery enable E3 battery start S8 CompactFlash S8 position 1, off=default (write enable) S8 position 2, on=write protect S8 position 3=not using S2 S1 On 1 2 On 1 2 S7 position 1, on=default (enable VME SYSRESET driver) S7 position 2, off=disable VME SYSESET driver.
S7 position 2, ON=default (enable SYSRESET receiver) S7 position 3, OFF=disable VME SYSRESET receiver. S7 VME SYSRESET S7 ON 1 2 S6 position 1, ON=default (enable SYSFAIL generation) S6 position 2, Off=disable SYSFAIL to generate S6 position 3, ON=default (map UNIV2 to memory space) S6 bit 2, Off=map UNIV1 to I/O space S6 universe II mapping/SYSFAIL to generate S6 ON 1 2 S8 S2 position 1, Off=default (normal operation) S2 position 2, ON=clear CMOS S2 position 3, Off=default (Boot Hall with Post Errors) S2 position 2, On=Boot with Post Errors S2 CMOS Clear/BIOS Boot Mode 1 2 On 1 2 On 2 2 25 Hardware Settings 1 Table 1-1 SBC Connector and Switch Connector Functions P1 VME Interface Connector P2 USB 2.0, Serial ATA, Digital Video, IDE, COM2, 3 and 4, Optional Gigabit Ethernet P0 VITA 31.1 interface connector (optional) P3 CompactFlash socket J16 and J17 USB port J10 keyboard/mouse PS/2 connector J9 ITP connector J15 10/100 Mb RJ45 Ethernet connector J18 Gigabit Ethernet connector (optional) J11, J12 and J13 PMC site connector J22 serial port connector (COM1) J19 SVGA connector J21 PCI expansion connector (PMC237CM1/V) of GE Fanuc embedded system B1 Battery switch function S1 System controller S2 CMOS clear switch/BIOS boot mode S4 reset switch (front panel) S6 Map universe II to I/O space S7 VME SYSRESET Table 1-2 Battery enable (user configurable) - Jumper (E3) Select the jumper Position Battery Enabled On Battery Disabled Off 26 1 Product Manual Note: The BIOS has a password protection function (currently not enabled) to protect random access to the device CMOS settings screen. The password clear switch allows the user to clear CMOS and passwords in case of system BIOS failure or forgetting the password. To clear CMOS password: 1. Turn off the device. 2. Move switch S2 position 1 to the ON position. 3. Wait about 5 seconds. 4. Move switch S2 position 1 to the closed position. 5. Energize the unit. When the device is powered on again, the CMOS password will be cleared and CMOS will be set as the default value. Table 1-3 VME system controller (user configurable) - Switch (S1) position function status 1-4 Normal operation (default) off 1-4 Enable system or non system controller (any slot) on 2-3 Force system controller (any slot) off 2-3 Force system or non system controller (any slot) on Table 1-4 Password clearing/BIOS boot mode normal off 1-4
