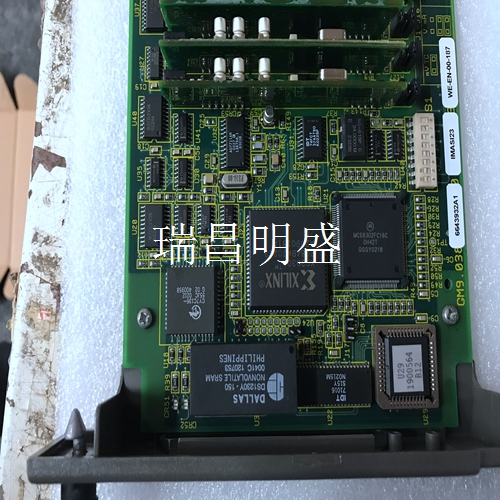

连接电压传感
块操作每个电路都有自己的LED，指示是否存在开/关阈值电压。输入设备H N 11.6K端子组件现场连接电压传感电路电子组件内部+5V处理器115 VAC 47K Vin Vsource~块的输入电路是电阻式的。电阻负载足以激活大多数双线接近开关装置。输入电阻为11.6K欧姆，在115伏时提供9.9 mA的预加载电流。LED ___单元OK（正常）和I/O Enabled（I/O启用）LED显示块的运行状态。装置OK I/O Enabled（正常输入/输出已启用）意味着ON（接通）块功能，CPU通信ON（断开）块功能3总线扫描时无CPU通信ON闪烁块功能，电路强制闪烁ON电路故障，CPU通信闪烁OFF电路故障3总线扫描后无CPU通信OFF无需担心块电源，或块故障交替闪烁电路故障，电路强制同步闪烁无CPU通信-块号冲突电路LED指示存在开/关阈值电压。诊断__开路和短路诊断可以单独或一起启用。每一个都需要在输入设备上增加一个电阻器，如前所示。离散和模拟I/O块用户手册解释了如何配置这些诊断，以及如何为应用选择正确的电阻器。开路：表示从传感器到三态输入的输入端子的开路。如果发生此故障，模块将CPU中的输入状态设置为0。Shorted Wire（短路导线）：表示短路到H或N。如果故障为高短路，则模块将CPU的输入状态设置为1，如果故障为低短路，则设置为0。
警告：当输入开关闭合时，In和N之间的短路可能导致高故障电流。这可能会熔断线路保险丝或导致串联电阻器Rs过热。配置首先，必须使用手持式监视器配置块：输入其设备编号（串行总线地址）。输入其参考号（仅适用于IC600和IC550系列PLC）。其余功能可以使用手持监视器进行配置，也可以通过从主机向块发送写入配置数据报进行配置。注：如果块配置为离线，则必须正确接地，并在其串行1和串行2端子上安装75欧姆电阻器。有关说明，请参阅离散和模拟I/O块用户手册。功能电路或块工厂设置选择设备号块空0到31（必须选择一个数字）参考地址块无取决于主机CPU类型波特率块153.6 std 153.6 std153.6 ext76.8，38.4 Kbd输入滤波器时间8*10ms 10到100ms开/关阈值8*25%25-85%开/关阈8*50%25-85%短路检测电路否否，开路检测电路否，无报告故障电路是是，无配置保护块禁用启用，禁用*为每个电路组单独设置（1-8和9-16）
Connect voltage sensor
Block operation Each circuit has its own LED indicating whether an on/off threshold voltage is present. The input circuit of the+5V processor 115 VAC 47K Vin Vsource~block in the field connection voltage sensing circuit electronic assembly of the input device HN 11.6K terminal assembly is resistive. The resistive load is sufficient to activate most 2-wire proximity switchgear. The input resistance is 11.6K ohms, providing a preload current of 9.9 mA at 115 volts. LED ___ The Unit OK and I/O Enabled LEDs show the operational status of the block. The device OK I/O Enabled means that the ON block function, the CPU communication ON block function 3, no CPU communication ON flashing block function during bus scanning, the circuit forcibly flashing ON circuit fault, the CPU communication flashing OFF circuit fault 3, no CPU communication OFF after bus scanning, no need to worry about the block power supply, or the block fault alternately flashing circuit fault, Circuit forced synchronous flashing No CPU communication - Block number conflict Circuit LED indicates the presence of on/off threshold voltage. Diagnosis__ Open circuit and short circuit diagnostics can be enabled individually or together. Each needs to add a resistor to the input device, as shown previously. The Discrete and Analog I/O Block User Manual explains how to configure these diagnostics and how to select the correct resistor for the application. Open circuit: open circuit from sensor to input terminal of tristate input. If this fault occurs, the module sets the input status in the CPU to 0. Shorted Wire: indicates short circuit to H or N. If the fault is a high short circuit, the module sets the input status of the CPU to 1, and if the fault is a low short circuit, it sets it to 0.
Warning: When the input switch is closed, a short circuit between In and N may cause high fault current. This may blow the line fuse or cause the series resistor Rs to overheat. Configuration First, you must use the Handheld Monitor Configuration Block: enter its device number (serial bus address). Enter its reference number (for IC600 and IC550 series PLCs only). Other functions can be configured using a handheld monitor or by sending a write configuration datagram from the host to the block. Note: If the block is configured offline, it must be properly grounded and a 75 ohm resistor must be installed on its Serial 1 and Serial 2 terminals. For instructions, refer to the Discrete and Analog I/O Block User Manual. The function circuit or block factory setting selects that the device number block is empty 0 to 31 (a number must be selected). The reference address block does not depend on the host CPU type. Baud rate block 153.6 std 153.6 std 153.6 ext76.8, 38.4 Kbd input filter time 8 * 10ms 10 to 100ms on/off threshold value 8 * 25% 25-85% on/off threshold value 8 * 50% 25-85% short circuit detection circuit No, open circuit detection circuit No, no fault reporting circuit Yes, no configuration protection block disable enable, Disable * Set separately for each circuit group (1-8 and 9-16)
