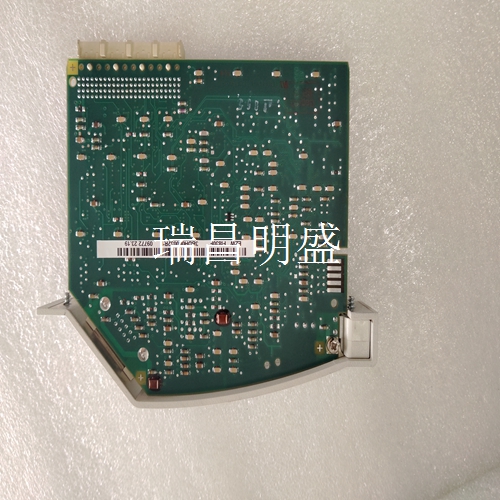

DSTA180 工控模块备件
使用手册
手册的组织本手册由以下章节和附录组成：概述-介绍DSTA180 、手册的组织、参考、安全摘要和安全符号。 操作原理描述了DSTA180 反射存储器板的功能以及主要子电路及其操作的描述。 配置和安装描述了开箱、检查、硬件跳线设置、连接器定义、安装、电缆配置和电路板布局。 编程描述了PCI配置、本地配置、运行时、DMA控制、RFM控制和状态寄存器等寄存器。维护-提供有关设备保养和维护的信息。合规性-提供有关DSTA180 法规合规性的适用信息。附录A-故障排除描述了PowerPC单板计算机的操作。
User Manual
Organization of the Manual This manual consists of the following chapters and appendixes: Overview - describes DSTA180, the organization of the manual, references, safety summaries, and safety symbols. The operation principle describes the functions of the DSTA180 reflective memory board, as well as the main sub circuits and their operations. Configuration and installation describes unpacking, inspection, hardware jumper settings, connector definition, installation, cable configuration, and circuit board layout. The PCI configuration, local configuration, runtime, DMA control, RFM control and status registers are described by programming. Maintenance - Provides information about equipment maintenance and repair. Compliance - Provides applicable information about DSTA180 regulatory compliance. Appendix A - Troubleshooting describes the operation of the PowerPC board computer.
安全概述
在本产品的操作、维护和维修的所有阶段，必须遵守以下一般安全预防措施。未遵守这些预防措施或本手册其他地方的特定警告，违反了本产品设计、制造和预期用途的安全标准。对于客户未能遵守这些要求，GE不承担任何责任。系统接地为将电击危险降至最低，机箱和系统机柜必须连接至电气接地。应使用三芯交流电源电缆。电源线必须插入经批准的三触点电源插座，或与三触点到两触点适配器一起使用，接地线（绿色）牢固连接到电源插座的电气接地（安全接地）。请勿在爆炸性环境中操作请勿在存在易燃气体或烟雾的情况下操作系统。在这种环境中操作任何电气系统都会构成明确的安全隐患。
Security Overview
The following general safety precautions must be observed at all stages of operation, maintenance and repair of this product. Failure to observe these precautions or specific warnings elsewhere in this manual violates the safety standards for the design, manufacture and intended use of this product. GE shall not be responsible for the customer's failure to comply with these requirements. System grounding To minimize the risk of electric shock, chassis and system cabinet must be connected to electrical grounding. Three core AC power cables shall be used. The power cord must be plugged into an approved three contact power socket or used with a three contact to two contact adapter, and the ground wire (green) is securely connected to the electrical ground (safety ground) of the power socket. Do not operate in explosive atmospheres Do not operate the system in the presence of flammable gases or fumes. Operating any electrical system in this environment will constitute a clear potential safety hazard.
