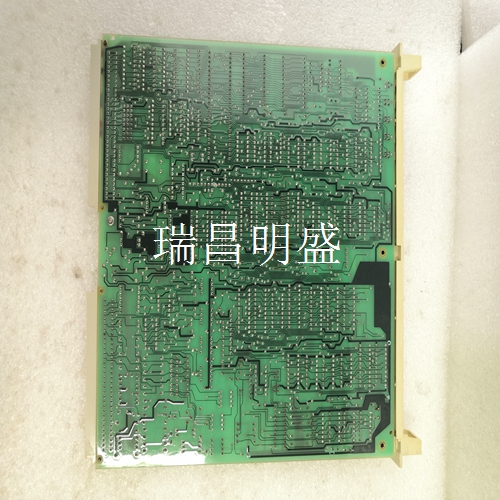

5736045-N DSMD113工控备件PLC模块DCS系统模块
一般规范
（1）CE标志是气候操作条件+5至+55°C（存储-40至+70°C，相对湿度=5至95%，无冷凝，IEC/EN 61131-2电源24 V直流（19.2至30 V），防护等级IP20，符合EN 60529，IEC 529符合ISA-71.04电磁兼容性和CE标志的腐蚀防护G3符合EN 61000-6-2和EN 61000-6-4电磁辐射测试的EMC指令2004/108/EC，第2部分：工业环境电磁抗扰度测试，根据EN 61000-6-1电磁抗扰性标准，第2部分-工业环境电气安全UL508，IEC/EN 61131-2危险分类位置C1 Div 2 cULus，C1 Zone 2 cULus，ATEX Zone 2 RoHS符合EN 50581:2012 WEEE符合DIRECTIVE/2012/19/EU通信介质Advant Fieldbus 100双绞线屏蔽/同轴/光纤电缆。每辆巴士最多79个车站。每个双绞线段最多32个。总线长度：每个双绞线段最长750米（2460英尺），总长度：15公里（9.3英里）。PROFIBUS DP双绞线屏蔽/光纤电缆。每辆巴士最多99个车站。每个双绞线段最多32个。总线长度：每个双绞线段最多1200米（3937英尺）。以太网I/O网络S800 I/O可以使用以太网现场总线通信接口（CI845/TC810/TU860）连接到以太网I/O网络上的多个控制器。当连接到以太网I/O网络时，一个以太网现场总线通信接口下的S800 I/O模块可以将I/O信号分配到网络上的任何控制器。I/O网络支持冗余、运行中的热配置、HART传递和事件序列。
站布局I/O模块数量
每个I/O站最多24个。Modulebus延长电缆：插入式，长度：0.3、0.6和1.2米（1、2和4英尺）。光学模块总线：每个群集最多7个I/O群集和12个I/O模块。最大长度：POF光纤15米（49英尺），HCS光纤200米，光学媒体转换器TB825 1000米（3280英尺），TB826 5000米（1640.42英尺）。通信接口CI810适用于Advant Fieldbus 100。支持双总线电缆冗余。带有AC 400系列控制器。CI801用于PROFIBUS-DP/V1。运行和HART®直通中的热配置。提供了GSD文件。用于Modulebus/驱动器集成的TB820V2光纤集群调制解调器。TB825光学介质转换器。多模式可达1000米。TB826远程光学介质转换器。单模式可达5000米。TB810/811/842 Modulebus光学端口。冗余接口CI820用于与Advant Controller 400系列控制器组合的冗余Advant Fieldbus 100。TB815互连单元。需要一个用于协调两个并行CI820的电气和光学模块总线接口。CI840A用于冗余PROFIBUS-DP/V1。运行和HART®直通中的热配置。提供了GSD文件。TB840A用于冗余光学模块总线的光学集群调制解调器。安装在TU840/TU841/TU848/TU849上。使用TU807进行单个配置。与AC 800M一起使用。热Conf In Run、HART传递和事件顺序。安装在垂直DIN导轨上。模块终端单元（MTU）紧凑型，50 V应用TU810V1带螺纹端子TU812V1带25针D-sub连接器TU814V1带3个压接卡扣连接器TU818带螺纹端子TU819带双25针D-sub紧凑型，250 V应用TU811V1带螺纹端子TU813带3个压接卡扣连接器紧凑型本质安全型TU89X带螺纹端子和隔离电源扩展型，50 V应用TU830V1/TU835V1/TU838/TU850带螺纹端子，pwr。配电和保险丝TU833带弹簧笼端子。，压水堆。配电和熔断器TU834，带分路棒的螺纹端子.
General specifications
(1) CE mark Yes Climatic Operation Conditions +5 to +55 °C (Storage -40 to +70 °C, RH = 5 to 95 % no condensation, IEC/EN 61131-2 Power Supply 24 V d.c. (19.2 - 30 V) Protection Class IP20 according to EN 60529, IEC 529 Corrosive protection G3 compilant according to ISA-71.04 Electromagnetic Compability and CE-mark Meets EMC directive 2004/108/EC according to EN 61000-6-2 and EN 61000-6-4 Electromagnetic Emission Tested according to EN 61000-6-4 EMC – Generic Emission Standard, Part 2 – Industrial Environment Electromagnetic Immunity Tested according to EN 61000-6-2 EMC – Generic Immunity Standard, Part 2 – Industrial Environment Electrical Safety UL508, IEC/EN 61131-2 Hazardous Classified Locations C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 RoHS compliance EN 50581:2012 WEEE compliance DIRECTIVE/2012/19/EU Communication media Advant Fieldbus 100 Twisted pair screened/coaxial/fiber-optic cable. Up to 79 stations per bus. Up to 32 per twisted-pair segment. Bus length: Up to 750 m (2 460 ft.) per twisted-pair segment overall up to: 15 km (9.3 miles). PROFIBUS DP Twisted pair screened/fiber-optic cable. Up to 99 stations per bus. Up to 32 per twisted-pair segment. Bus length: Up to 1200 m (3937 ft.) per twisted-pair segment. Ethernet I/O network The S800 I/O can connect to multiple controllers on the Ethernet I/O Network using the Ethernet Fieldbus Communication Interface (CI845/TC810/TU860). When connected to the Ethernet I/O network an S800 I/O module under one Ethernet Fieldbus Communication Interface can distribute I/O signals to any controller on the network. The I/O network supports redundancy, Hot Configuration in Run, HART pass through and Sequence of Events.
Station layouts No. of I/O modules
Up to 24 per I/O station. Modulebus extension cable: Plug-in, lengths: 0.3, 0.6 and 1.2 m (1, 2 & 4 ft). Optical Modulebus: Up to 7 I/O clusters and 12 I/O modules per cluster. Max length: 15 m (49 ft) with POF fiber and 200 m with HCS fiber, 1000m (3280 ft) with Optical Media Converter TB825, and 5000m (1640.42 ft) with TB826. Communication interfaces CI810 For Advant Fieldbus 100. Supports dual bus-cable redundancy. With AC 400 series controllers. CI801 For PROFIBUS-DP/V1. Hot Configuration in Run & HART® pass-through. GSD-file provided. TB820V2 Optical cluster modem for Modulebus/drives integration. Optical media converter. Multimode up to 1 000 meter. TB826 Long range optical media converter. Single mode up to 5 000 meter. / 811 / 842 Modulebus optical port. Redundant interface CI820 For redundant Advant Fieldbus 100 in combination with Advant Controller 400 series controllers. TB815 Interconnection Unit. An electrical and optical Modulebus interface for coordination of the two parallell CI820 needed. CI840A For redundant PROFIBUS-DP/V1. Hot Configuration in Run & HART® pass-through. GSD file provided. TB840A Optical cluster modem for redundant optical Modulebus. Installed on TU840/TU841/TU848/TU849. Use TU807 for single configuration. Used with AC 800M. Hot Conf In Run, HART pass-through and Sequence of Events. Installation on vertical DIN rail. Module Termination Units (MTU:s) Compact, 50 V applications TU810V1 With screw terminals TU812V1 With 25 pin D-sub connector TU814V1 With 3 crimp snap-in connectors TU818 With screw terminals TU819 With dual 25 pin D-sub Compact, 250 V applications TU811V1 With screw terminals TU813 With 3 crimp snap-in connectors Compact for intrinsic safety TU89X With screw terminals & isolated power supply Extended, 50 V applications TU830V1 / TU835V1 / TU838 / TU850 With screw terminals, pwr. distribution & fuse TU833 With spring-cage term., pwr. distribution & fuse TU834 With screw terminals for shunt sticks.
