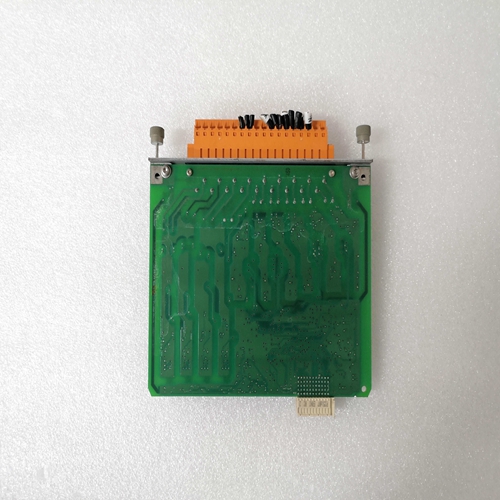

DSDI452
以太网适配器概述
CB810-USB到以太网适配器概述CB810是一个USB 2.0到快速以太网转换器。它将PC上的标准USB主机端口转换为标准网络适配器（网卡）。在具有内置以太网RJ45端口的面板800和使用PC上的USB端口的PC之间实现项目传输等；按如下方式连接CB810适配器。CB810上的USB A型连接器连接到PC上的USB主机端口。带有RJ45连接器的交叉以太网接插电缆（双绞线电缆）连接在CB810的以太网RJ45端口和面板800上的以太网RJ-45端口之间。第3节控制器3BSE043449R501 25的安装连接遵循操作员面板手册中的说明，在配置工具中设置Ethernet/TCP/IP项目传输。技术规格•单芯片USB至10/100 Mbps快速以太网。•符合USB规范1.0、1.1和2.0。•具有总线电源功能的全/高速USB设备。•IEEE 802.3u 100BASE-T、TX和T4兼容。•嵌入式7K*16位SRAM、256*16位DRAM和8个FIFO。•支持全双工或半双工操作快速以太网。•支持挂起模式和远程唤醒。•可选的PHY断电模式，可节省电源。•支持开机初始化时从EEPROM自动加载以太网ID、USB描述符和适配器配置。•以太网PHY环回诊断能力。
控制器的连接有关将操作员面板连接到控制器时使用的电缆的信息，请参阅有关驱动程序的帮助文件。其他连接和外围设备电缆、外围设备和附件必须适合应用及其环境。有关详细信息或建议，请咨询供应商。当面板800安装和/或运行时，CB810不被批准用于固定安装或使用。它只能用于PC和Panel 800之间的项目/文件传输。CB810不能直接连接到Panel 800。当使用紧凑型闪存卡时，当忙碌指示灯点亮时，不要取出该卡。其他连接和外围设备第3节安装26 3BSE043449R501 3BSE04 3449R501 27第4节技术数据参数PP836 PP836A前面板，宽x高x深285 x 177 x 6 mm安装深度56 mm（156 mm包括间隙）前面板密封件IP 66后面板密封件IP20键盘材料带金属圆顶的薄膜开关键盘。将Autotex F157*覆膜，背面印有图案。100万次操作。背面材料粉末涂层铝重量1.4 kg串行端口RS422/RS485 25针D-sub触点，带标准锁紧螺钉4-40 UNC的底座安装内螺纹。串行端口RS232C 9针D-sub触点，外螺纹，带标准锁紧螺钉4-40 UNC。以太网屏蔽RJ 45 USB主机类型A（USB 1.1），最大输出电流500mA设备类型B（USB 1.1）CF插槽紧凑型闪存，I和II型闪存，适用于12 MB（包括字体）实时时钟±20 PPM+错误，因为环境温度和电源电压。总最大误差：25°C时1分钟/月温度系数：-0.034±0.006 ppm/°C2
Ethernet Adapter Overview
CB810 USB to Ethernet Adapter Overview CB810 is a USB 2.0 to Fast Ethernet converter. It converts the standard USB host port on the PC into a standard network adapter (network card). Project transmission is realized between panel 800 with built-in Ethernet RJ45 port and PC using USB port on PC; Connect the CB810 adapter as follows. The USB A-connector on the CB810 connects to the USB host port on the PC. The cross Ethernet patch cable (twisted pair cable) with RJ45 connector is connected between the Ethernet RJ45 port of the CB810 and the Ethernet RJ-45 port on the panel 800. Section 3 The installation and connection of the controller 3BSE043449R501 25 follow the instructions in the operator panel manual. Set the Ethernet/TCP/IP project transmission in the configuration tool. Technical Specifications • Single chip USB to 10/100 Mbps Fast Ethernet. • Complies with USB specifications 1.0, 1.1 and 2.0. • Full/high-speed USB device with bus power function. • IEEE 802.3u 100BASE-T, TX and T4 compatible. • Embedded 7K * 16 bit SRAM, 256 * 16 bit DRAM and 8 FIFOs. • Support full duplex or half duplex operation fast Ethernet. • Supports suspend mode and remote wake-up. • Optional PHY power-off mode can save power. • Support automatic loading of Ethernet ID, USB descriptor and adapter configuration from EEPROM during startup initialization. • Ethernet PHY loopback diagnostic capability.
Controller Connections For information about the cables used to connect the operator panel to the controller, see the help file for the driver. Other connecting and peripheral cables, peripherals and accessories must be suitable for the application and its environment. Consult the vendor for details or recommendations. CB810 is not approved for fixed installation or use when panel 800 is installed and/or operating. It can only be used for project/file transfer between PC and Panel 800. The CB810 cannot be directly connected to the Panel 800. When using a compact flash card, do not remove the card when the busy LED is lit. Other connections and peripherals Section 3 Installation 26 3BSE043449R501 3BSE04 3449R501 27 Section 4 Technical data parameters PP836 PP836A Front panel, width x height x depth 285 x 177 x 6 mm Installation depth 56 mm (156 mm including clearance) Front panel seal IP 66 Rear panel seal IP20 Keyboard material Membrane switch keyboard with metal dome. Cover Autotex F157 * with a pattern printed on the back. 1 million operations. Back material Powder coated aluminum Weight 1.4 kg Serial port RS422/RS485 25 pin D-sub contact, base mounting internal thread with standard locking screws 4-40 UNC. Serial port RS232C 9-pin D-sub contact, male thread, with standard locking screw 4-40 UNC. Ethernet shield RJ 45 USB host type A (USB 1.1), maximum output current 500mA Device type B (USB 1.1) CF slot compact flash memory, I and II flash memory, applicable to 12 MB (including font) real-time clock ± 20 PPM+error, because of ambient temperature and power supply voltage. Total maximum error: 1 minute/month at 25 ° C Temperature coefficient: -0.034 ± 0.006 ppm/° C2
