产品内容介绍

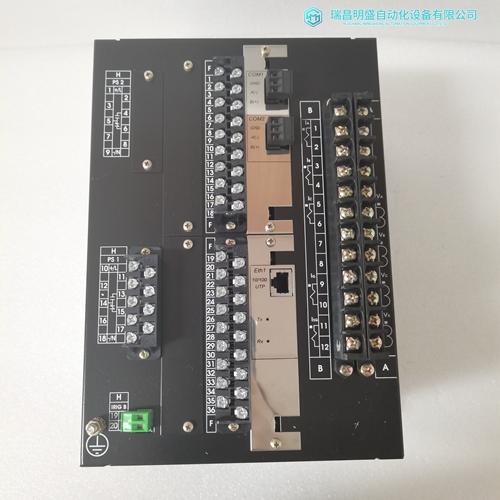

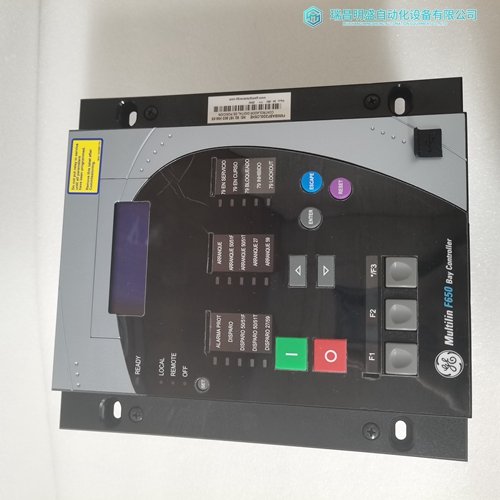

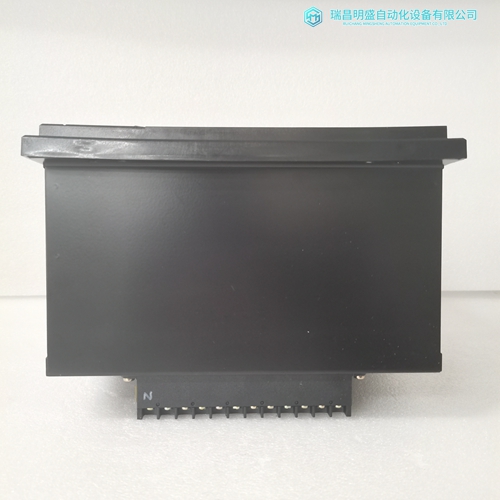

F650BABF2G0LOSHE继电保护器模块
重要提示：还必须在梯形图逻辑中启用这些命令，才能执行它们。
这个SIE.CONTROL.CmdControl。WriteCmdBits[x]控制器标记数组为每个数组保存16个命令位数组
客户如果特定命令的位在WriteCmdBits[x]控制器标记中设置为零（0），则该命令无论其在配置中处于启用或禁用状态，都不会执行。有关更多信息，参见命令控制块（第132页）。
内部地址0到65535（用于位级寻址）或0到4999（用于字级寻址）此参数指定模块内部数据库中要使用的数据库地址作为读取命令引入的数据的目标，或作为由写命令发出。
数据库地址被解释为位地址或16位字（寄存器）地址，取决于西门子工业以太网的数据命令中使用的类型。
如果命令列表中使用了Data Type–Bool，则数据库地址将被解释为位地址。
当任何其他数据类型则数据库地址被解释为16位字（寄存器）地址。
轮询间隔0至65535
此参数指定在连续命令执行（启用代码1）。参数以十分之一为单位输入一秒钟。因此，如果为命令输入值100，则命令执行频率不超过每10秒一次。
注册数
注册：此计数取决于西门子处理器类型线圈：此计数取决于西门子处理器类型。此参数指定了接收或发送数据的字节顺序是否以及如何重新安排。
此选项的存在是为了考虑到不同制造商存储和以不同的组合传输多字节数据。
此参数在交易时很有用使用浮点值或其他多字节值，因为没有一个标准的存储这些数据类型。
此参数可以设置为重新排列数据的字节顺序收到或发送到对其他应用更有用或更方便的订单中。
这个下表定义了有效的交换代码值及其对数据字节顺序的影响。
上面的灰色区域表示当连续使用双字地址（DB1.DBD0、DB1.DBD1、DB1.DBD2等）。
如果DB1.DBD0用作西门子处理器中的第一个地址，则下一个双精度可以在不覆盖数据的情况下使用的字地址为DB1.DBD4。如果数据被分解并以二进制格式显示，则可以看到二进制存储在DB1第一个字节中的数据。DBW 0与存储在字节地址中的数据相同DB1.DBB 0。
这是因为如前所述，DB1.DBW 0和DB1.DBB0是同一个。
Important:
The commands must also be enabled in the ladder logic in order for them to be executed. The SIE.CONTROL.CmdControl.WriteCmdBits[x] controller tag array holds 16-command bit arrays for each Client. If a bit for a specific command is set to zero (0) in the WriteCmdBits[x] controller tag, the command will not be executed, regardless of its enabled or disabled state in the configuration. For more information, see Command Control Blocks (page 132).Internal Address 0 to 65535 (for bit-level addressing) or 0 to 4999 (for word-level addressing) This parameter specifies the database address in the module's internal database to use as the destination for data brought in by a read command or as the source for data to be sent out by a write command. The database address is interpreted as a bit address or a 16-bit word (register) address, depending on the Siemens Industrial Ethernet’s Data Type used in the command. If Data Type – Bool is used in the command list, then the database address will be interpreted as a bit address. When any other data types are used, then the database address is interpreted as 16-bit word (register) address. Poll Interval 0 to 65535 This parameter specifies the minimum interval between issuances of a command during continuous command execution (Enable code of 1). The parameter is entered in tenths of a second. Therefore, if a value of 100 is entered for a command, the command executes no more frequently than every 10 seconds. Reg Count Regs: This Count will depend on the Siemens processor type Coils: This Count will depend on the Siemens processor type
This parameter specifies
if and how the order of bytes in data received or sent is to be rearranged. This option exists to allow for the fact that different manufacturers store and transmit multi-byte data in different combinations. This parameter is helpful when dealing with floating-point or other multi-byte values, as there is no one standard method of storing these data types. This parameter can be set to rearrange the byte order of data received or sent into an order more useful or convenient for other applications. The following table defines the valid Swap Code values and the effect they have on the byteorder of the data.These swap operations affect 4-byte (or 2-word) groups of data. Therefore, data swapping using these Swap Codes should be done only when using an even number of words, such as when 32-bit integer or floating-point data is involved.The gray area above represents the byte memory locations being overlapped when double word address is used consecutively (DB1.DBD0, DB1.DBD1, DB1.DBD2, etc). If DB1.DBD0 is used as the first address in the Siemens processor, the next double word address that can be used without overwriting the data would be DB1.DBD4.If the data is broken up and displayed in binary format, it can be seen that the binary data stored in the first byte of DB1.DBW 0 is identical to that stored in byte address DB1.DBB 0. This is because the memory locations referenced by the first byte of DB1.DBW 0 and by DB1.DBB0 are one and the same, as explained previously.
公司主营产品图展示
产品优势
1：国外专业的供货渠道，具有价格优势
2：产品质量保证，让您售后无忧
3：全国快递包邮
4：一对一服务
公司主营范围简介
PLC可编程控制器模块，DCS卡件，ESD系统卡件，振动监测系统卡件，汽轮机控制系统模块，燃气发电机备件等，优势品牌：Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各种进口工业零部件、欧美进口模块。
产品广泛应用于冶金、石油天然气、玻璃制造业、铝业、石油化工、煤矿、造纸印刷、纺织印染、机械、电子制造、汽车制造、塑胶机械、电力、水利、水处理/环保、锅炉供暖、能源、输配电等等
