产品内容介绍

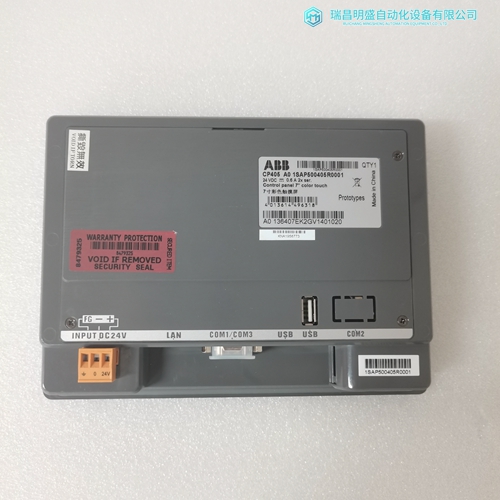

1SAP500405R0001操作控制屏
设置跳线充当模块固件的“写保护”。In“写入”保护”模式，设置引脚未连接，模块固件无法被覆盖。模块出厂时设置跳线为OFF。
请勿跳线除非ProSoft技术支持（或要更新模块固件）。
下图显示了设置跳线关闭时的跳线配置。
如果要在远程机架中安装模块，您可能更喜欢让设置引脚跳线。
这样，您就可以更新模块的固件，而无需对模块进行物理访问。
安全注意事项：
将设置引脚保持跳线状态会导致模块出现意外固件更新。
出于安全原因，您应该考虑对数据流进行分段。根据IEC 62443-1-1，您应该对齐采用IEC 62443，实现控制系统的分段。相关功能包括防火墙、单向通信，DMZ。石油和天然气客户还应参见DNVGL-RP-G108以获取指导分区。
您应该按照IEC 62443-4-1的要求，通过设计来实践安全，包括安全和检测层。
这个模块依赖于整体网络安全设计，因为它只是应该定义的内容的一个组件分区或子网在机架中安装模块
如果尚未安装和配置ControlLogix处理器和电源，请在安装MVI56E-SIE模块之前执行此操作。
参考罗克韦尔用于安装说明的自动化产品文档。
警告：安装本设备或任何其他电子设备时，必须遵守所有安全说明。
不遵守安全程序可能导致硬件或数据损坏，甚至严重伤害或人员死亡。
请参阅将要连接的每个设备的文档，以验证是否适合在安装或维修设备之前，安全程序已经到位。
检查跳线位置后，将MVI56E-SIE插入ControlLogix底盘。
使用罗克韦尔自动化推荐的相同技术以卸下和安装ControlLogix模块。
可以在机箱电源接通时安装或卸下ControlLogix系统组件已应用，系统正在运行。
但是，请注意以下警告当底板电源打开时插入或卸下模块时，可能会发生电弧。
电弧会向系统的执行器。这可能导致机器意外移动或失去过程控制。
电弧在危险环境中发生时也可能导致爆炸。
确认电源已断开或该区域在继续之前是无害的。
重复电弧会导致模块及其配套接头上的触点过度磨损。
磨损的触点可能会产生电阻，从而影响模块的操作。
Setting Jumpers
The Setup Jumper acts as "write protection" for the module’s firmware. In "write protected" mode, the Setup pins are not connected, and the module’s firmware cannot be overwritten. The module is shipped with the Setup jumper OFF. Do not jumper the Setup pins together unless you are directed to do so by ProSoft Technical Support (or you want to update the module firmware). The following illustration shows the jumper configuration with the Setup Jumper OFF.If you are installing the module in a remote rack, you may prefer to leave the Setup pins jumpered. That way, you can update the module’s firmware without requiring physical access to the module. Security considerations: Leaving the Setup pin jumpered leaves the module open to unexpected firmware updates. You should consider segmenting the data flow for security reasons. Per IEC 62443-1-1, you should align with IEC 62443 and implement segmentation of the control system. Relevant capabilities are firewalls, unidirectional communication, DMZ. Oil and Gas customers should also see DNVGL-RP-G108 for guidance on partitioning. You should practice security by design, per IEC 62443-4-1, including layers of security and detection. The module relies on overall network security design, as it is only one component of what should be a defined zone or subnet
Installing the Module in the Rack
If the ControlLogix processor and power supply have not been installed and configured, please do so before installing the MVI56E-SIE module. Refer to the Rockwell Automation product documentation for installation instructions. Warning: All safety instructions must be followed when installing this or any other electronic devices. Failure to follow safety procedures could result in damage to hardware or data, or even serious injury or death to personnel. Refer to the documentation for each device that will be connected to verify that suitable safety procedures are in place before installing or servicing the device. After the placement of the jumpers has been checked, insert the MVI56E-SIE into the ControlLogix chassis. Use the same technique recommended by Rockwell Automation to remove and install ControlLogix modules. ControlLogix system components can be installed or removed while chassis power is applied and the system is operating. However, please note the following warning When the module is inserted or removed while backplane power is on, an electrical arc can occur. An electrical arc can cause personal injury or property damage by sending an erroneous signal to the system’s actuators. This can cause unintended machine motion or loss of process control. Electrical arcs may also cause an explosion when they happen in a hazardous environment. Verify that power is removed or the area is non-hazardous before proceeding. Repeated electrical arcing causes excessive wear to contacts on both the module and its mating connector. Worn contacts may create electrical resistance that can affect module operation.
公司主营产品图展示
产品优势
1：国外专业的供货渠道，具有价格优势
2：产品质量保证，让您售后无忧
3：全国快递包邮
4：一对一服务
公司主营范围简介
PLC可编程控制器模块，DCS卡件，ESD系统卡件，振动监测系统卡件，汽轮机控制系统模块，燃气发电机备件等，优势品牌：Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各种进口工业零部件、欧美进口模块。
产品广泛应用于冶金、石油天然气、玻璃制造业、铝业、石油化工、煤矿、造纸印刷、纺织印染、机械、电子制造、汽车制造、塑胶机械、电力、水利、水处理/环保、锅炉供暖、能源、输配电等等
