产品内容介绍

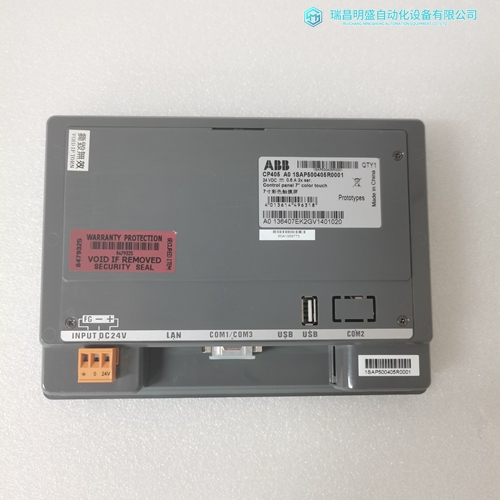

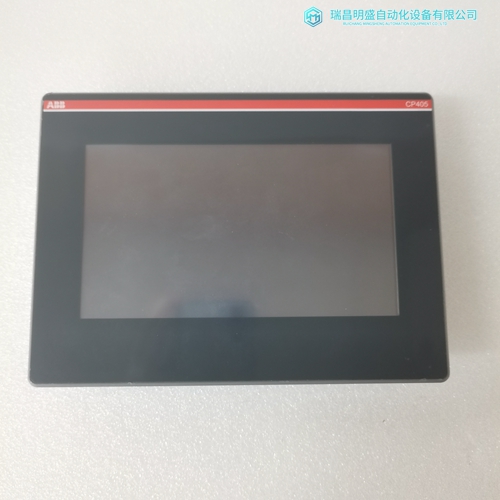

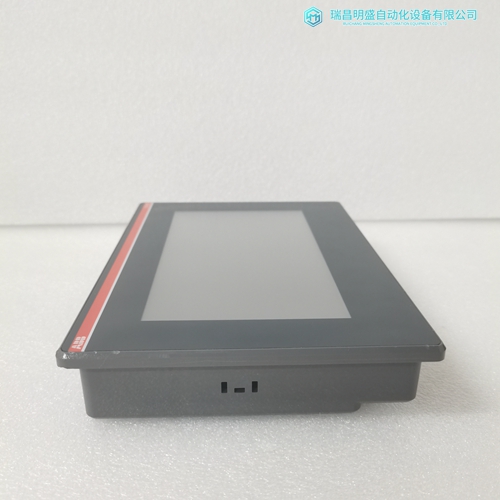

CP405 A0操作显示屏
为了从本用户手册中获得最大的好处，需要以下技能： 罗克韦尔自动化®RSLogix™ 软件：启动程序，配置梯形图逻辑，并将梯形图逻辑传输到处理器
Microsoft Windows:安装并启动程序，执行菜单命令，导航对话框，并输入数据
硬件安装和接线：安装模块，安全连接西门子工业以太网和ControlLogix设备连接到电源和MVI56ESIE模块的应用端口
1.1特点
ProSoft Configuration Builder（PCB）：基于Windows的诊断软件，通过模块的以太网端口或CIPconnect®连接，上传/下载模块配置信息，并访问故障排除特性和功能。
ProSoft Discovery Service（PDS）：用于查找和显示列表的实用软件网络上的MVI56E模块，并临时更改IP地址以连接使用模块的网页。
启用CIPconnect：允许PC到模块的配置和诊断通过ControlLogix 1756-ENBT Ethernet/IP的以太网™ 单元
个性模块：存储模块的工业小型闪存卡完整的配置和以太网设置，允许快速轻松更换。
LED滚动诊断显示：4字符，字母数字显示，提供状态和报警数据以及处理器和网络通信的消息地位系统要求
MVI56E-SIE模块至少需要以下硬件和软件
组件： Rockwell Automation ControlLogix®处理器（固件版本16或更高），带兼容电源，机架中有一个用于MVI56E-SIE模块的空闲插槽。
模块需要800 mA的可用5 Vdc电源
罗克韦尔自动化RSLogix 5000编程软件
o附加说明需要16版或更高版本
罗克韦尔自动化RSLinx®通信软件版本2.51或更高
ProSoft Configuration Builder（PCB）（附带）
ProSoft Discovery Service（PDS）（包含在PCB中）
奔腾®
II最小450 MHz。建议使用Pentium III 733 MHz（或更高）
支持的操作系统：
o Microsoft Windows 10
o Microsoft Windows 7 Professional（32位或64位）
o带Service Pack 1或2的Microsoft Windows XP Professional
o带Service Pack 1、2或3的Microsoft Windows 2000 Professional
o Microsoft Windows Server 2003
最小128 MB RAM，建议256 MB RAM
100 MB可用硬盘空间（或更多，具体取决于应用程序要求）
256色VGA图形适配器，最小分辨率800 x 600（真彩色1024 x建议768）
To get the most benefit from
this User Manual, the following skills will be needed: Rockwell Automation® RSLogix™ software: launch the program, configure ladder logic, and transfer the ladder logic to the processor Microsoft Windows: install and launch programs, execute menu commands, navigate dialog boxes, and enter data Hardware installation and wiring: install the module, and safely connect Siemens Industrial Ethernet and ControlLogix devices to a power source and to the MVI56ESIE module’s application port(s) 1.1 Features ProSoft Configuration Builder (PCB): Windows-based software for diagnostics, connecting via the module's Ethernet port or CIPconnect® , to upload/download module configuration information and access troubleshooting features and functions. ProSoft Discovery Service (PDS): Utility software to find and display a list of MVI56E modules on the network and to temporarily change an IP address to connect with a module's web page. CIPconnect-enabled: Allows PC-to-module configuration and diagnostics from the Ethernet network through a ControlLogix 1756-ENBT EtherNet/IP™ module. Personality Module: An industrial compact flash memory card storing the module’s complete configuration and Ethernet settings, allowing quick and easy replacement. LED Scrolling Diagnostic Display: 4-character, alphanumeric display, providing messages for status and alarm data, and for processor and network communication status.
System Requirements
The MVI56E-SIE module requires the following minimum hardware and software components: Rockwell Automation ControlLogix® processor (firmware version 16 or higher), with compatible power supply, and one free slot in the rack for the MVI56E-SIE module. The module requires 800 mA of available 5 Vdc power Rockwell Automation RSLogix 5000 programming software o Version 16 or higher required for Add-On Instruction Rockwell Automation RSLinx® communication software version 2.51 or higher ProSoft Configuration Builder (PCB) (included) ProSoft Discovery Service (PDS) (included in PCB) Pentium® II 450 MHz minimum. Pentium III 733 MHz (or better) recommended Supported operating systems: o Microsoft Windows 10 o Microsoft Windows 7 Professional (32-or 64-bit) o Microsoft Windows XP Professional with Service Pack 1 or 2 o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3 o Microsoft Windows Server 2003 128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended 100 Mbytes of free hard disk space (or more based on application requirements) 256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color 1024 x 768 recommended)

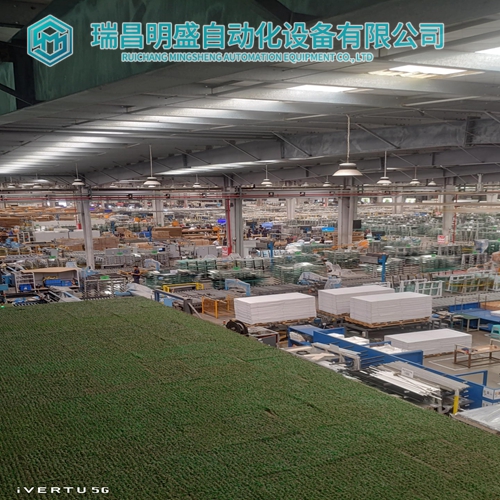

公司主营产品图展示
产品优势
1：国外专业的供货渠道，具有价格优势
2：产品质量保证，让您售后无忧
3：全国快递包邮
4：一对一服务
公司主营范围简介
PLC可编程控制器模块，DCS卡件，ESD系统卡件，振动监测系统卡件，汽轮机控制系统模块，燃气发电机备件等，优势品牌：Allen Bradley、BentlyNevada、ABB、Emerson Ovation、Honeywell DCS、Rockwell ICS Triplex、FOXBORO、Schneider PLC、GE Fanuc、Motorola、HIMA、TRICONEX、Prosoft等各种进口工业零部件、欧美进口模块。
产品广泛应用于冶金、石油天然气、玻璃制造业、铝业、石油化工、煤矿、造纸印刷、纺织印染、机械、电子制造、汽车制造、塑胶机械、电力、水利、水处理/环保、锅炉供暖、能源、输配电等等
