产品详情介绍

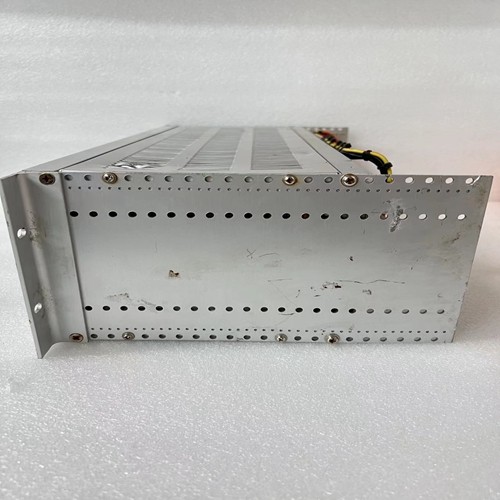

D20 EME框架
如果中央单元07 KR 91/07 KT 92/07 KT93
在未连接CS31系统总线的情况下使用，在中编程时执行以下设置用户程序：系统常数KW 00,00=–2此值为出厂设置。
有关用作独立中央控制单元的07 KT 92，请参见第A2.1章简介，示例1。
A2.5 07 KR 91/07 KT 92/07 KT93用作总线主中央单元
如果远程模块（从机）连接到中央机组07 KR 91/07 KT 92/07 KT93，通过CS31系统总线，执行以下操作：1.更改系统常数：KW 00,00=-1
2.将PLC程序保存在Flash EPROM中
3.通过以下方式激活新的PLC模式：
–在ABB编程和测试系统或
–在终端中输入命令WARM<CR>模式或
–电源打开或冷启动。
智能I/O远程模块（中央单元）作为am CS31系统的从设备公共汽车中央单元07 KR 91、07 KT 92、07 KT93、07 KR 31和07 KT 31也可用作CS31的从机系统总线，见第A2.1章，寻址，简介，示例3。
中央单元07 KR 91/07 KT 92/07 KT93/07 KR31/07 KT 31可用于二进制范围和单词范围。
地址可以设置为0到61之间的值最大允许地址取决于设置发送和接收范围。您选择的越大发送或接收范围，较小者为最大值允许的地址（参见示例1…3）。
如果要切换到“从属模式”，请按跟随：1.更改系统常数：KW 00,00=0…61。仅适用于07 KR 31和07 KT 31：如果KW 00,00=100地址设置在插件基座的DIL开关上与标准模块相同地址范围为0…61.2。将PLC程序保存在EEPROM中3.通过以下方式激活新的PLC模式：–在ABB编程和测试系统或–在终端中输入命令WARM<CR>模式或–电源打开或–冷启动。
If the central units 07 KR 91 / 07 KT 92 / 07 KT 93 are to
be used without the CS31 system bus connected,
perform the following setting when programming in the
user program:
System constant KW 00,00 = –2
This value is the factory setting.
For the 07 KT 92 used as stand-alone central unit, see
chapter A2.1 Introduction, Example 1.
A2.5 07 KR 91 / 07 KT 92 / 07 KT 93 used as
bus master central unit
If remote modules (slaves) are connected to the central
units 07 KR 91 / 07 KT 92 / 07 KT 93 via the CS31
system bus, proceed as follows:
1. Change the system constant: KW 00,00 = –1
2. Save the PLC program in the Flash EPROM
3. Activate the new PLC mode by:
– Calling the menu item ”Enable PLC mode” in the
ABB programming and test system or
– entering the command WARM
Intelligent I/O remote modules (central
units) as slaves on the am CS31 system
bus
The central units 07 KR 91, 07 KT 92, 07 KT 93, 07 KR 31
and 07 KT 31 can also be used as slaves at the CS31
system bus, see chapter A2.1, Addressing, Introduction,
Example 3.
The central units 07 KR 91 / 07 KT 92 / 07 KT 93 / 07 KR
31 / 07 KT 31 may be used both in the binary range and in
the word range.
The address can be set to a value from 0 to 61. The
maximum permissible address depends on the size of the
set transmit and receive range. The larger you choose the
transmit or the receive range, the smaller is the maximum
permissible address (see examples 1...3).
If you want to switch over to the ”slave mode”, proceed as
follows:
1. Change the system constant: KW 00,00 = 0...61.
Only for 07 KR 31 and 07 KT 31: If KW 00,00 = 100, the
address is set on the DIL switch of the plug-in base in
the same way as with the standard modules, the
address range is 0...61.2. Save the PLC program in the EEPROM
3. Activate the new PLC mode by:
– Calling the menu item ”Enable PLC mode” in the
ABB programming and test system or
– entering the command WARM
